50 Hectares Custom Fixed Center Pivot Irrigation System
1.Full-circle stable irrigation suitable for rugged terrain and all crop varieties
2.No land leveling required; smooth rotary movement with 100% field coverage
3.Reinforced concrete anchor base for stable operation and uniform high-efficiency water distribution
- Overview
- Related Products
Description:
Our customized fixed center pivot irrigation system covering 50 hectares adopts a heavy-duty reinforced structure, with the central pivot firmly fixed on a reinforced concrete base. The reinforced anchoring structure boasts outstanding bearing capacity and structural stability. During long-term continuous operation on sloped, rolling or uneven farmland, the whole unit will not shift or shake, laying a solid foundation for stable irrigation work.
Supported by the reliable base, the integrated water pipeline assembly can rotate 360° smoothly and continuously without jamming or unbalanced travel. Water can be evenly sprayed across the whole farmland during rotation, realizing full coverage without blind spots. Whether it is irregular complex terrain or large continuous planting bases, this equipment can maintain steady irrigation output, deliver consistent water supply, and facilitate balanced and healthy growth of all crops.
Specifications:
| Model | DYP |
| Pipe Diameter | 141,168,203,214mm |
| Span | 61.3m,54.5m,48m,41m |
| Clearance | 3.1m |
| Single Overhang Pipe Length | 22'：6.7m |
| Inlet Pressure | 0.25-0.35Mpa |
| Irrigation quantity | 0--55mm |
| The max running speed of the last span | 156 meters / hour |

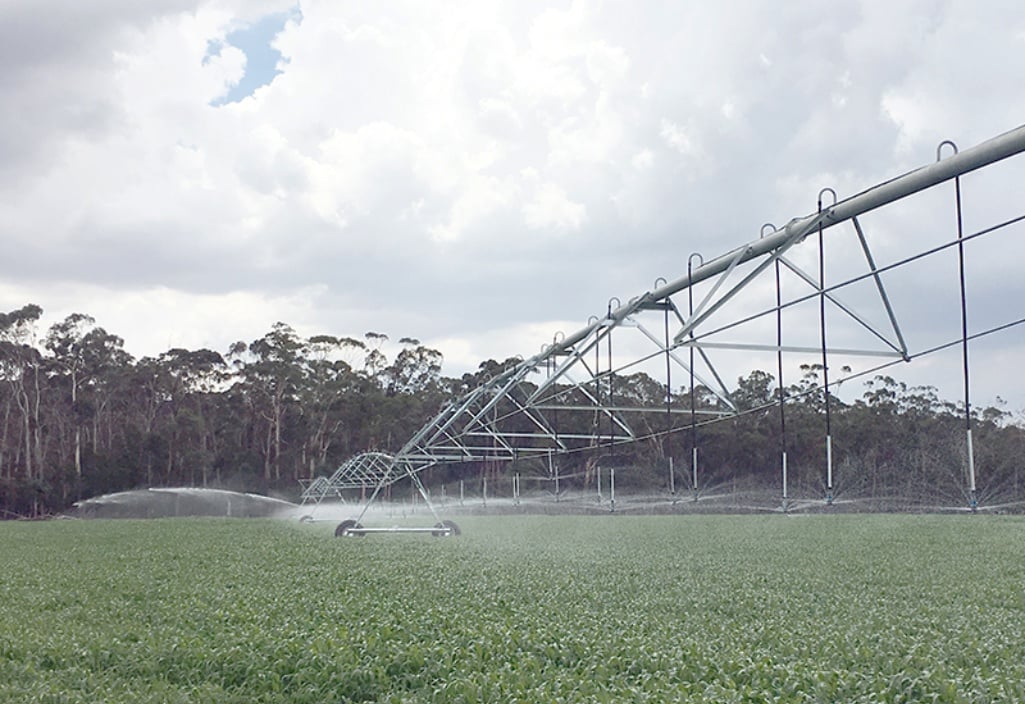

Applications:
This fixed center pivot irrigation system features powerful universality and serves as an efficient, cost-effective irrigation solution for diverse agricultural production scenarios.
Crop Compatibility
It fits all types of farm plants perfectly, including staple grains like wheat, corn and rice; cash crops such as cotton, soybean and vegetables; as well as special varieties including fruit trees, medicinal herbs and ornamental seedlings. It can match the distinct water demand of crops at every growth phase.
Terrain Adaptability
The system runs smoothly on flat fields, gentle hillsides and undulating uneven land, breaking the terrain limits of traditional irrigation equipment.
Unlike conventional irrigation facilities that demand massive pre-construction including land leveling, ditch digging and dike building, our system only requires simple on-site preparation before operation. It drastically cuts labor costs, construction cycles and upfront investment. Meanwhile, it preserves the original soil layer and landform, avoiding soil compaction and ecological damage caused by large-scale earthmoving works.
Flexible Water Source Matching
No complicated water delivery supporting facilities are necessary. The system can draw water from surface sources (rivers, lakes, reservoirs) or underground wells directly. It can be quickly installed and commissioned in water-abundant plain regions as well as hilly zones with scattered water resources. It is ideal for large commercial farms, family farm plots and specialized crop plantations, effectively stabilizing crop yields and improving produce quality.
Video：
Advantages：
1. Ultra-Stable Structure for Continuous Reliable Operation
The central pivot is anchored to reinforced concrete foundations to achieve superior structural rigidity. Even on sloped and bumpy ground, the unit stays free of displacement and vibration. The 360° seamless rotation guarantees non-stop, uniform irrigation across large tracts of farmland.
2. Low Pre-Construction Input to Cut Overall Costs
Eliminate expensive and time-consuming ground renovation works. Minimal site preparation is enough to put the system into service, slashing labor, construction time and initial capital expenditure. Original soil structure is well-protected without extensive ground disturbance.
3. Wide Adaptability to Various Crops & Landforms
The equipment accommodates grains, cash crops, fruits, vegetables and special plants at all growing stages. It works equally well on flat ground, hills and rolling fields, removing terrain restrictions that trouble traditional irrigation tools.
4. Versatile Water Source Access
Compatible with river, lake, reservoir and well water without complex water conveyance pipelines. It suits all agricultural areas regardless of water distribution conditions and lowers the cost of water resource development.
5. Uniform Water Spraying to Boost Crop Production
Full 360° rotary design eliminates dry patches and overwatered zones across the field. Irrigation depth adjustable from 0 to 55mm precisely satisfies different crops’ water requirements, promoting balanced growth, upgrading crop quality and lifting farm output steadily.
6. High Efficiency & Low Maintenance
The end span maximum speed reaches 156m/hour, finishing irrigation over vast areas in short time to save operating hours. Industrial-grade pipelines and heavy structural components deliver great durability and wear resistance, reducing breakdown frequency and maintenance workload, thus lowering long-term running costs and extending service life.
7. Fully Customizable to Match Individual Farm Needs
As a tailor-made irrigation solution, key parameters including span length, pipe diameter and inlet pressure can be adjusted flexibly according to your field size, crop types and local water supply conditions. Custom configuration maximizes operating efficiency to meet personalized farming demands.
FAQ：
Q: How can the system be customized?
A: We adjust core parameters such as span length and pipe diameter based on your field dimension, crop varieties and local water supply conditions to create exclusive irrigation equipment.
Q: What water sources can this system use?
A: It supports both surface water like rivers and lakes, and underground well water. No complicated water transport infrastructure is required.
