Product Description
Twin Spinner PTO Efficient Manure & Compound Fertilizer Spreader for Field Application is a new type agricultural machinery equipment powered by a tractor for spreading the fermented manure (including compost, wet compost) into the field.
This spreader uses tractor as PTO to drive the shipping chain in the carriage, thereby transport the manure backwards automatically, then the rear high speed rotating beater will smash and spread the manure uniformly. It helps to increase the fertilization efficiency, reduce labor intensity and also improve the soil structure.Customized vertical beater lime spreading machines solid manure spreader
Twin Spinner PTO Compound Fertilizer Spreader Efficient Manure Machine for Field Application
Twin Spinner PTO Efficient Manure & Compound Fertilizer Spreader for Field Application |
||||||||
Model |
PS1008 |
PS1012 |
PS1020 |
PS1028 |
||||
L*W*H (mm) |
7150*2240*1960 |
7998*2800*2500 |
10500*2600*3150 |
11000*2600*3350 |
||||
Weight (kg) |
1900 |
2800 |
4200 |
4800 |
||||
CAPACITY (m3) |
8 |
12 |
20 |
28 |
||||
Beater Position |
Horizontal |
Vertical |
Vertical |
Vertical |
||||
Tire Type |
12.5/80-18 |
23.1-26 |
600/55-26.5 |
600/55-26.5 |
||||
Tractor HP Required (hp) |
60-90 |
90-150 |
150-180 |
180-210 |
||||
Spreading Efficiency (m3/h) |
40-64 |
52-91 |
66-132 |
82-150 |
||||
Spreading Width (m) |
4-7 |
5-8 |
6-9 |
7-10 |
||||
Power Input Speed (rmp) |
540 |
540 |
540 |
540 |
||||
Shipping Chain |
Hinge Driving |
Hinge Driving |
Hinge Driving |
Hinge Driving |
||||
Hydraulic System Connector/Pressure |
2pcs/16Mpa |
4pcs/16Mpa |
4pcs/16Mpa |
4pcs/16Mpa |
||||
Detailed Images
Humanized design of foldable ladder for checking the carrier's internal status
Gearbox&Hydraulic Motor-High quality
Heavy duty chain driven by hydraulic

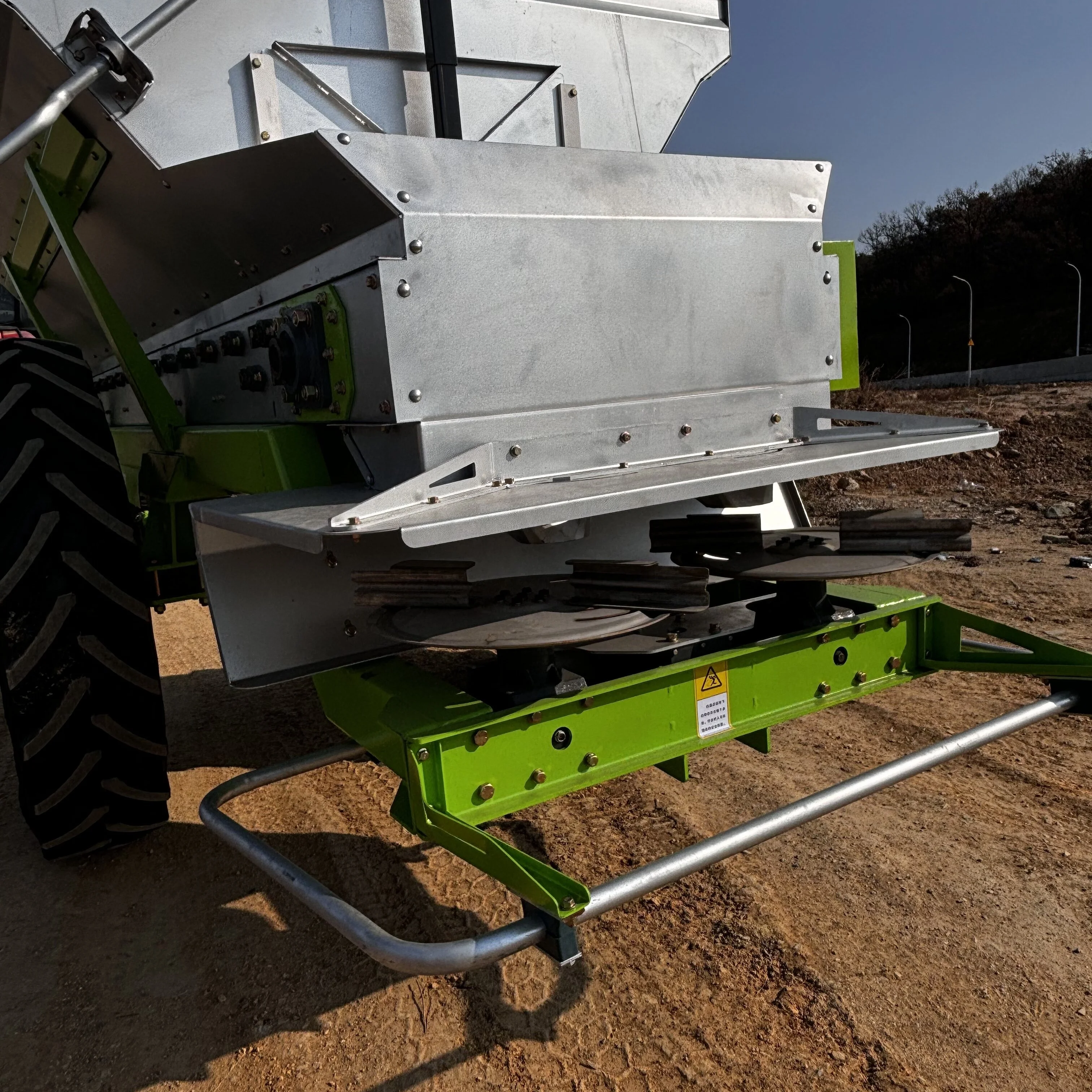

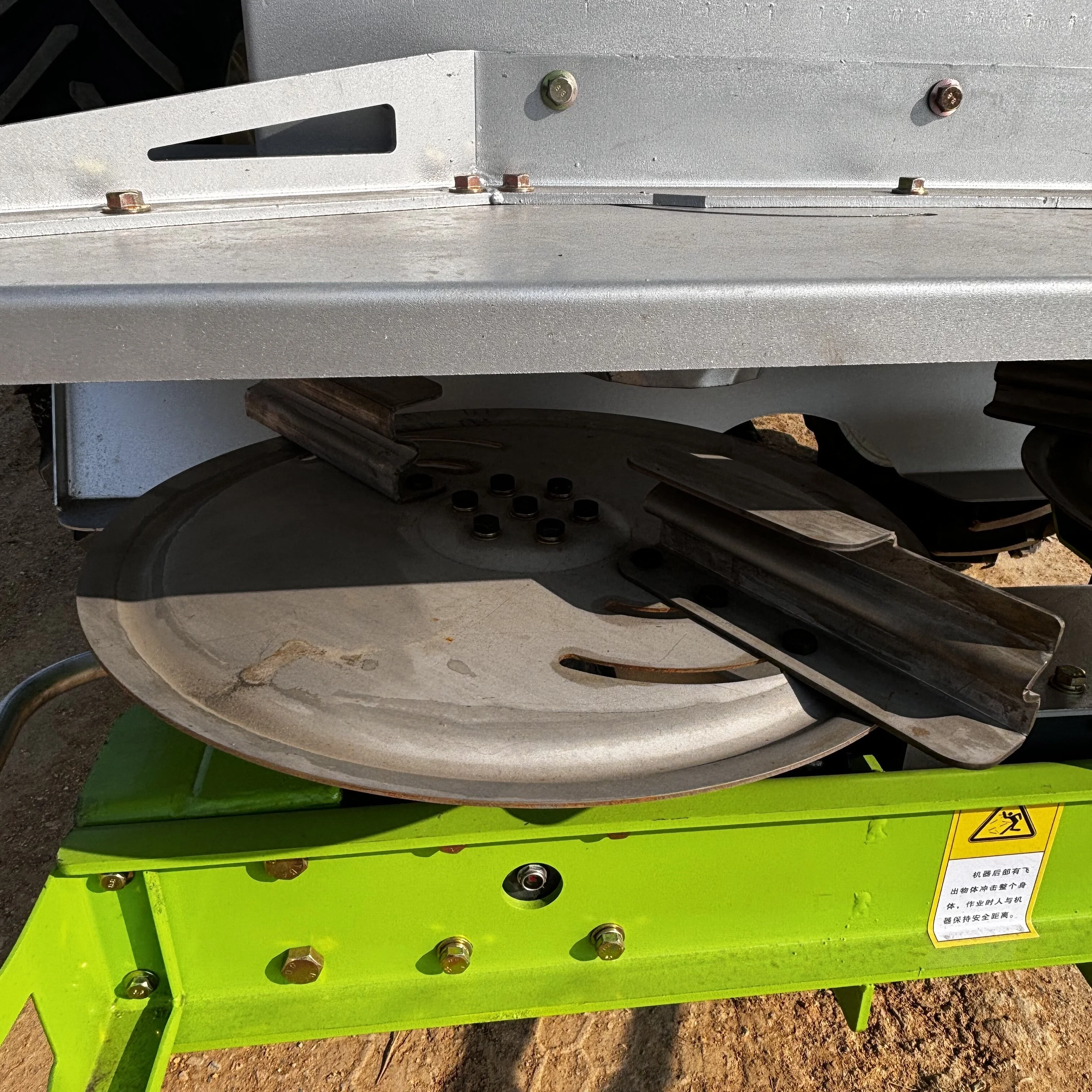

Enforced propeller with screw for easy maintenance
Adopt Italy bridge, good braking, automatic steering system accurate and sensitive, safe and durable.
PTO driven style
Packing&Delivery
The standard export wooden boxes or pallets , which meet the international trading regulation, will be offered by our side.The reliable shipping agent will be chosen, if the customer prefer the appointed shipping agent, also acceptable.
PTO Compound fertilizer spreader Twin Spinner manure Spreading Machine
