Description:

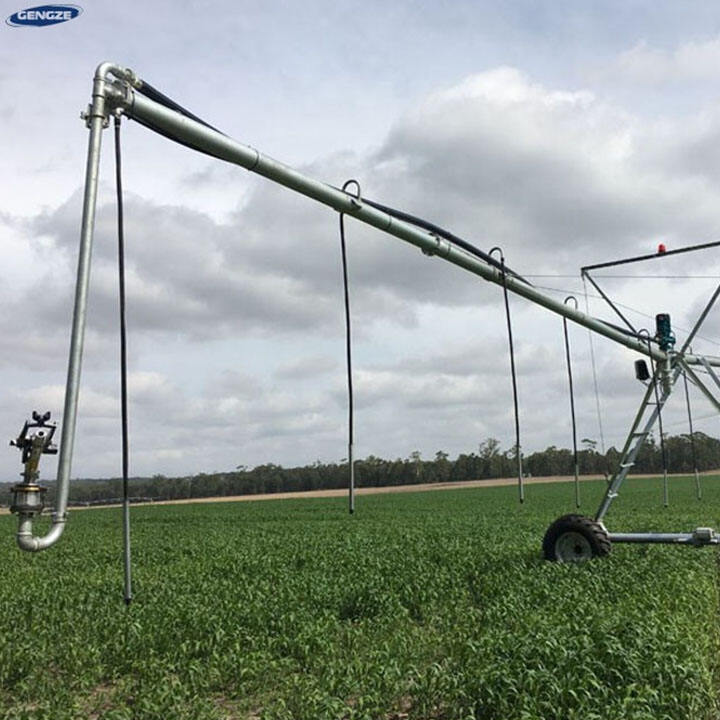

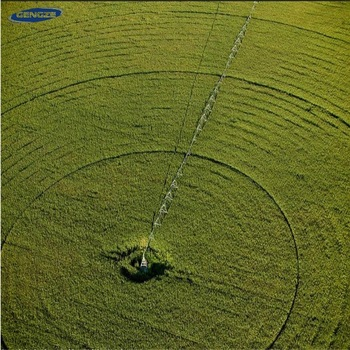

pivot irrigation system is applicable mainly to large farm irrigation.it has advantages like economic efficiency,high irrigation rate, solid structure, durability and easy operation. A multi-span system runs around its pivot tower and irrigates the earth within its coverage.
The depth of water applied is determined by the rate of travel of the system.
Furrow guidance guidance or steel cable guidance
Specifications:
| Pipeline Diameter | 141mm, 168mm, 203mm, 254mm |
| Pipe Length | 6.7m |
| Span Length | 61.3m, 54.5m, 48m, 41m |
| Maximum Machine Length | 1200m |
| Overhang Length | 22ft=6.7m/pc, not more than 3pcs |
| Main pipe Flange thickness | 10mm, Flange and pipe adopt double welded technology |
| IRRIGATION INTAKE | 1 WATER INTAKE WITH QUICK CONNECTION |
| STANDARD TRUSS HEIGHT ALLOWED | 3.2m |
| INTAKE PRESSURE | 0.2-0.35 mpa |
| Main cable | 4*4mm²+6*1.0mm²(resisting ultra violet and aging) |
| The end has | LED working status instruction light |
| Irrigation intake | 1 water inlet in center point,quick pipe joint connected structure |
| Irrigation intake caliber | 8inches,the spot water supply pipe is more than 6 inches |
Advantages：
Farm irrigation system of center pivot has features of durable and simple to manage, simple facilities, the cycle time of irrigation is short, irrigation uniformity and can save a lot of energy and labor, land utilization up to 80%.

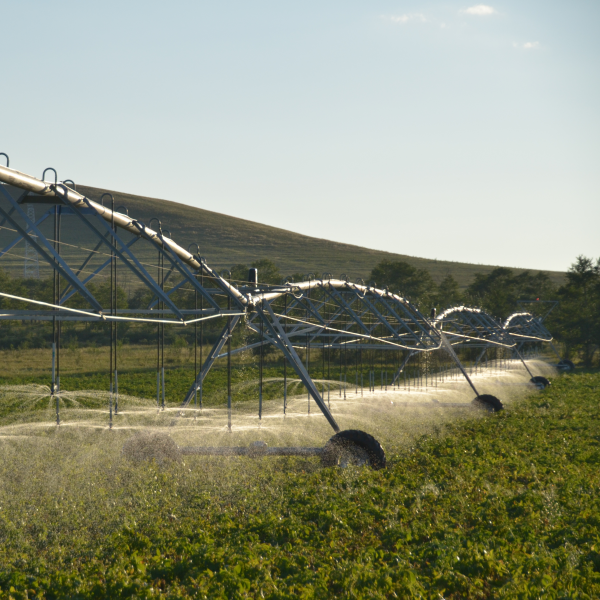

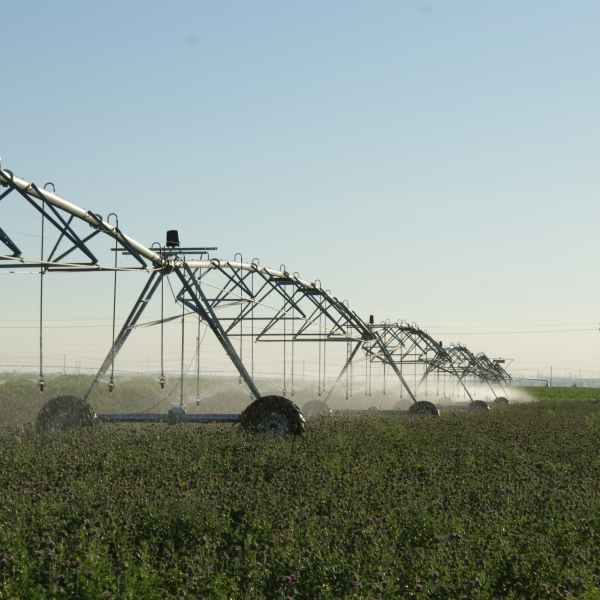

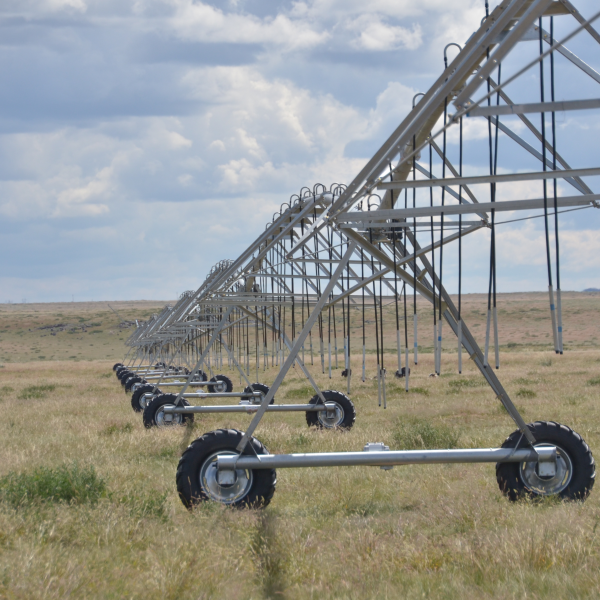

Applications:
FAQ:
Q: Payment term:
A:30%by T/T as deposits, the rest 70% should paid before delivery after machine finished
Q: Delivery time:
A:usually within 15 working days will depend on.
