Description:

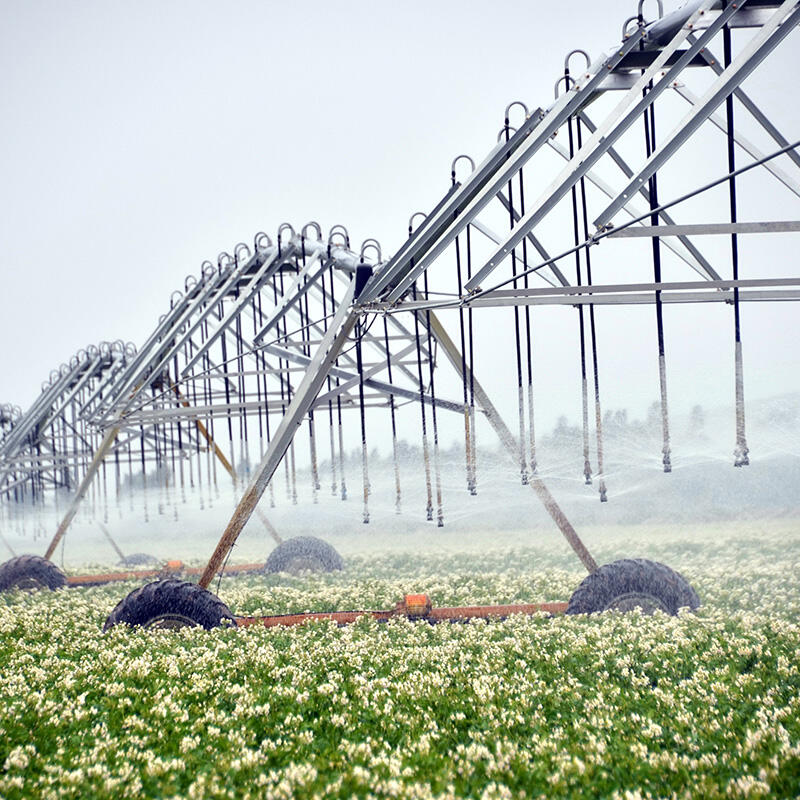

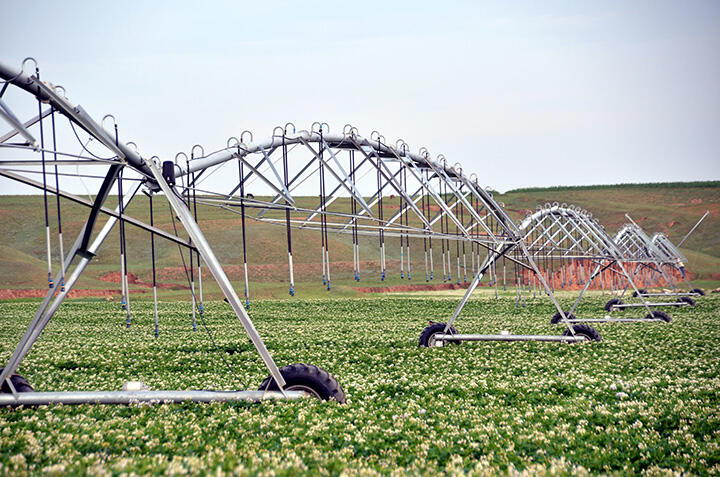

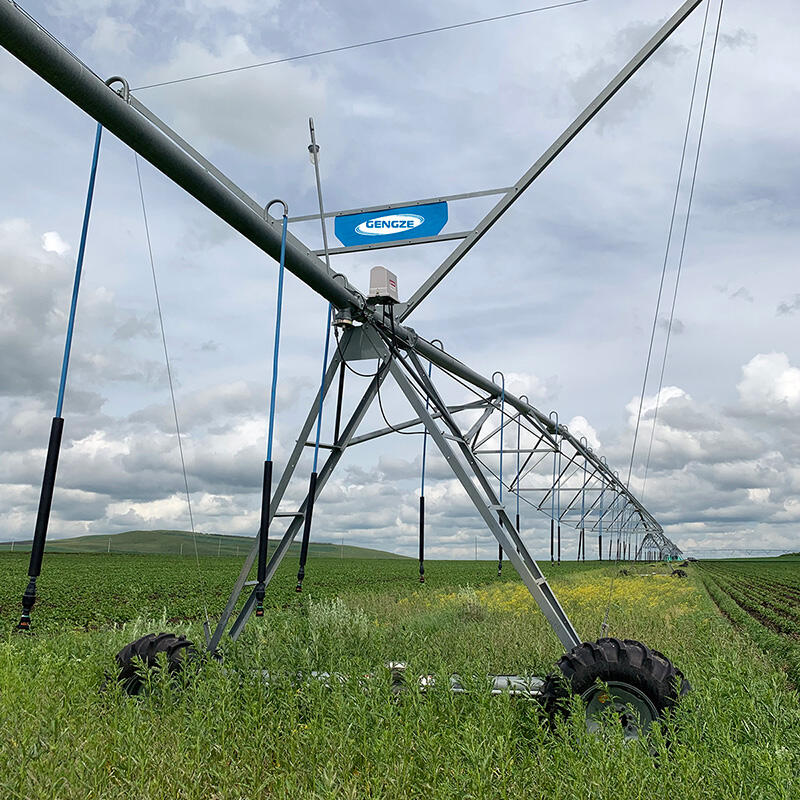

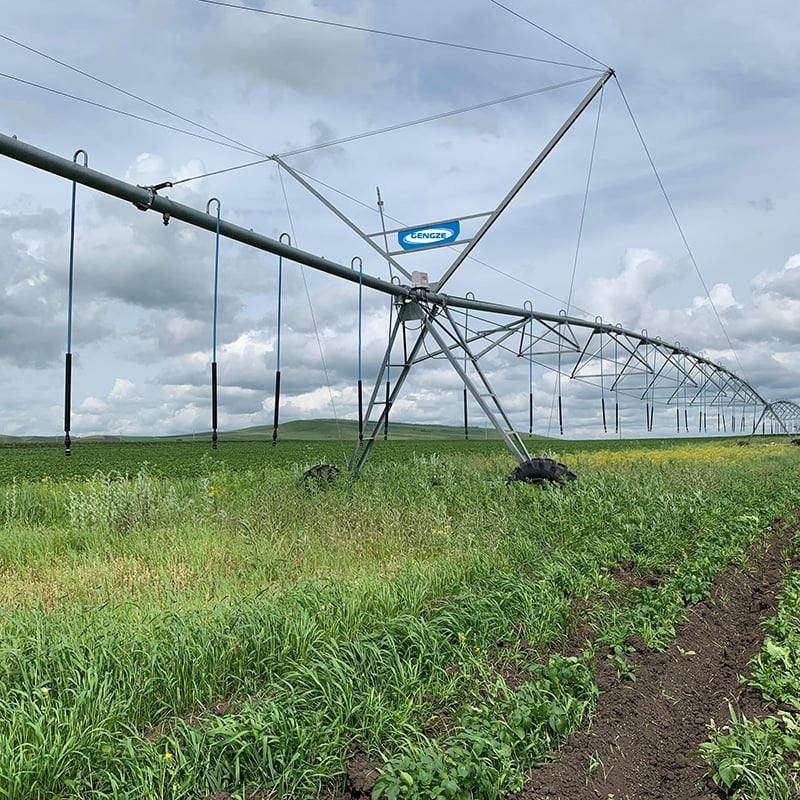

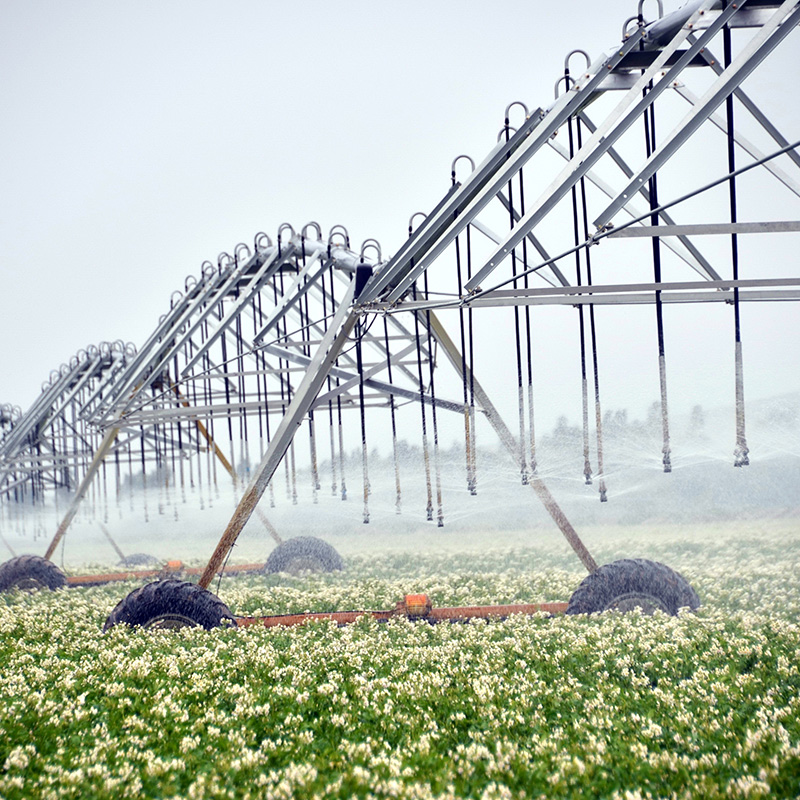

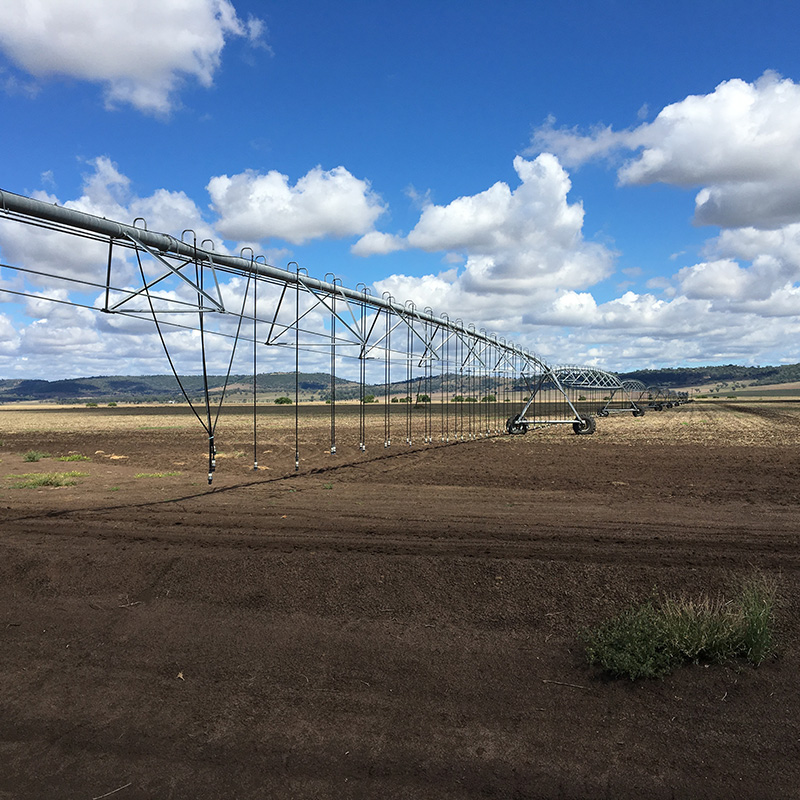

Center pivot irrigation, a key in modern large-scale agriculture, efficiently waters vast farmlands. Its core is a fixed central pivot, the axis for rotating spans (50-60m long) supported by wheeled, motorized towers, forming large circular crop areas.
Under spans, sprinklers/drop tubes adjust droplet size for crops/soil, minimizing evaporation. Pressure regulators and flow meters ensure consistent water application, preventing over/under-watering.
A central control system, manual or automated, uses sensors to monitor soil moisture, weather, and crop needs, adjusting irrigation in real time for precision.
Versatile, it irrigates corn, wheat, fruits, adapting to flat or rolling terrain. Circular coverage suits large fields, reducing labor and soil compaction vs. flood irrigation.
Modern upgrades include variable rate irrigation (VRI) for tailored water delivery, solar power cutting costs, GPS for uniform coverage, and mobile apps for remote management.
With 80-90% water efficiency (vs. 50-60% for flood irrigation), it conserves groundwater and reduces runoff, aiding sustainability.
It revolutionizes farming, enabling precise, efficient large-scale operations, crucial for global food production amid water scarcity.
Specifications:
| Main pipe diameter | 6-5/8''(168mm)*3.2mm, high frequency welded steel pipe |
| Standard span | 6-5/8''(168mm)*54.5m(8 pipes) |
| King-sized span | 6-5/8''(168mm)*61.3(9 pipes) |
| Overhang | 5-9/16''(141mm) |
| King-sized overhang | 4''(101mm) |
| Pipe length | 22feet/one (6.7m) |
| Main pipe Flange thickness | 10mm, Flange and pipe adopt double welded technology |
| Working voltage | 460--380V/50--60HZ |
Applications:
Video：
Advantages：

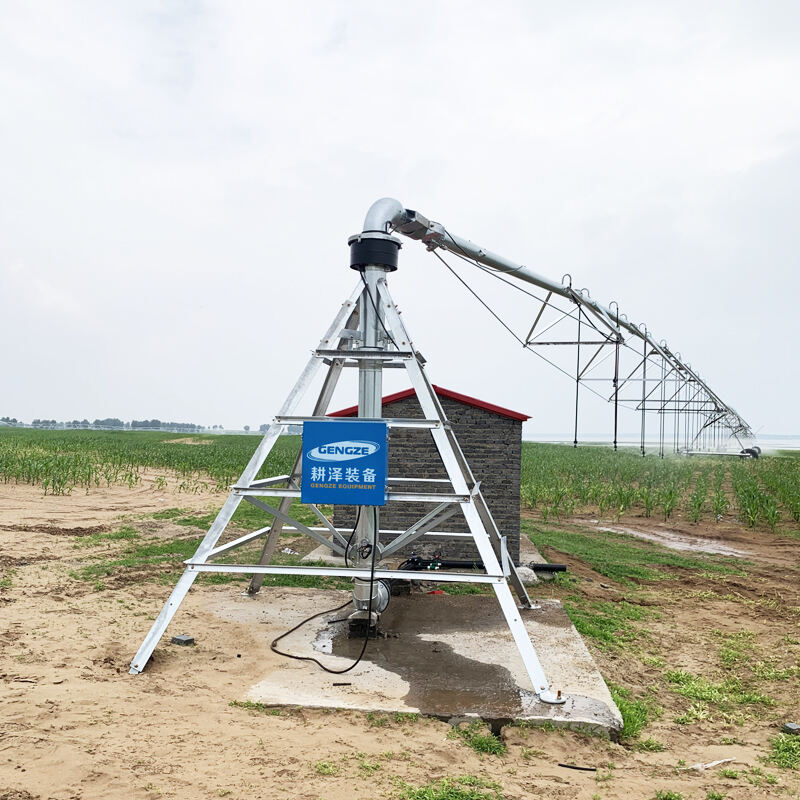

The center pivot is firmly fixed on the cement base to eliminate the force generated by the machine operating on irregular terrains, , so that the water supply pipe can rotate freely in a circle radius to irrigate the whole round field.
Application Area:
▪ Large scale land plots of square or round shape
▪ Terrain slope: ≤25°
The enforced standard pipes are normally carbon steel, their diameters are 6 5/8 inch(168 mm), which is 10% thicker than the competitor's top quality level.And they are effected the hot-dip galvanized process according to maritime standard.
If the water condition is unexpected hostile, the rubber liner inside the pipe will offer additional protection.
FAQ：
1.Are you trading company or manufacturer ?
-We are factory,and producing agricultural machine for more than 20 years.
2. How many meters machine can be loaded into 1x40HQ?
- about 500m center pivot /whole set.
3.How long will it take to manufacture and ship a center pivot or lateral move system?
-Time spent on each order depends on the quantity and specifications of your order. Some machines we have in stock, but special orders require more time. We can provide you a time estimate once we have adequate information concerning your order.
4. What's the payment terms?
-We accept 30% down by T/T (wire) or 70% by L/C or T/T before shipment.
5. What's the warranty policy?
-Warranty covers our center pivot and lateral move systems up to 1 year concerning electrical equipment, and 10 years or 10,000 working hours for gearboxes and gear motors—whichever expires first.We guaruntee 15year use concerning our galvanized eqipment against corrosion, and 3 years for our tires and rims.
