2FYP-12 Slurry Tankers
Italian Core Component Configuration · Comb-Shaped Spraying Technology Empowers Manure Resource Utilization in Large-Scale Farms
- Overview
- Related Products

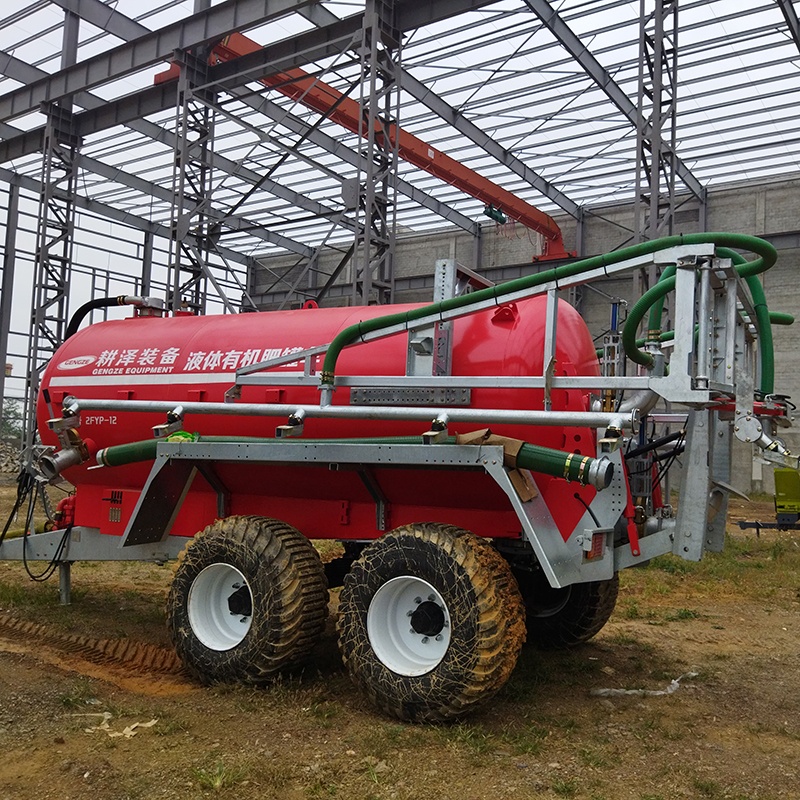

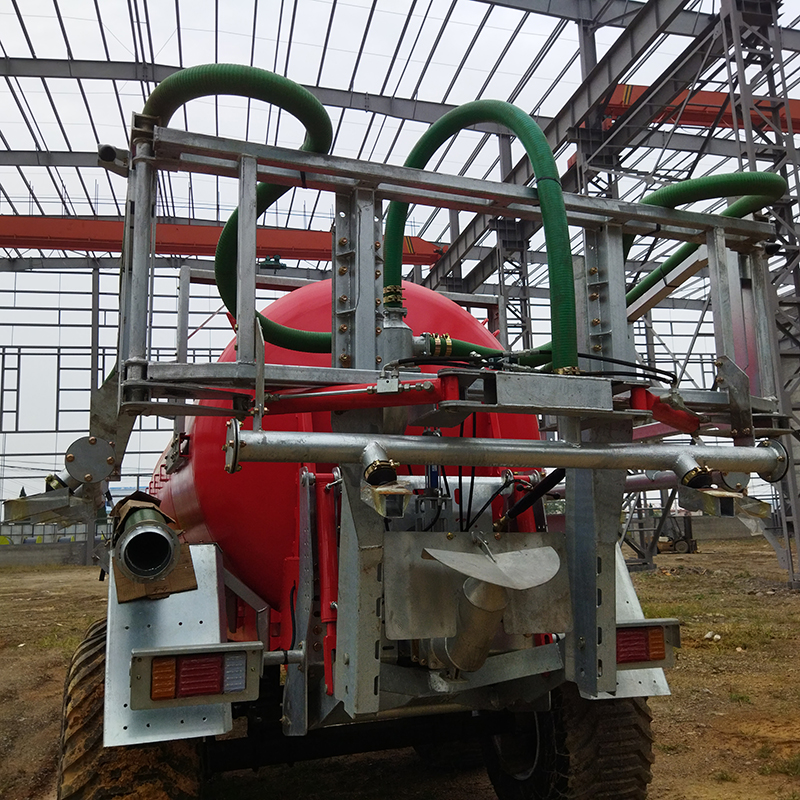

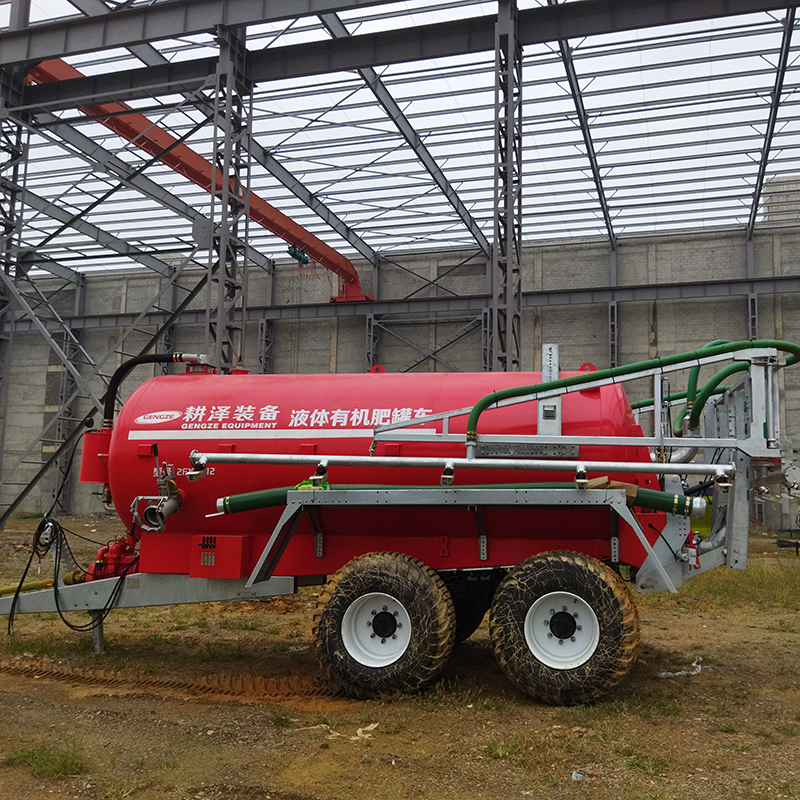

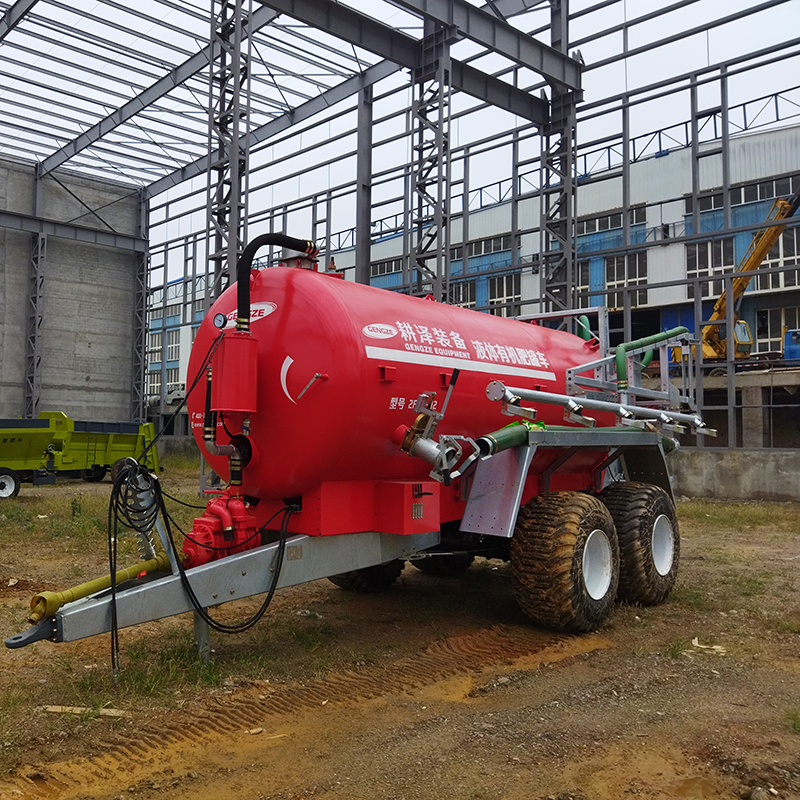

Model 2FYP-12 Slurry Tanker is a new type of agricultural machinery specially designed for modern agriculture. Adopting a tractor-powered drive mode, its core design integrates the concepts of efficient spraying and manure resource utilization. The equipment innovatively adopts a comb-shaped spraying bracket design, arranging multiple groups of spraying hoses in parallel to achieve uniform spreading of liquid manure; it also supports flexible selection and installation of subsoiler components to meet the manure application needs of different tillage scenarios.
The core of the equipment's operation relies on an imported vacuum pump system, which can stably transport the liquid manure stored in the tank (such as farm manure, fermented liquid organic fertilizer, etc.) into the soil to complete the fertilization operation. Its integrated design combines vacuum suction and air compression dual functions, realizing automatic suction and spraying of liquid manure without the need for additional power sources, greatly improving operational convenience.
In terms of materials and craftsmanship, the main components of the equipment tank are all selected from Italian imported core accessories (including vacuum pumps, gate valves, vacuum regulating valves, overpressure safety valves, etc.), and the axles are products of Italian ADR or other country famous brands, ensuring the stability and reliability of the equipment's operation. The tank body adopts a hot-dip galvanizing process, which has excellent corrosion resistance and can adapt to long-term manure storage and operating environments; the tank body and chassis adopt an integrated welding process, effectively lowering the equipment's center of gravity and improving stability during operation; the tank is equipped with anti-surge baffles and support rings inside, which can avoid equipment instability caused by manure sloshing during movement and further enhance structural strength.
Specifications:
| Model | 2FYP-12 |
| Capacity（m³） | 12 |
| Supporting Power | ≥100hp |
| Loading Efficiency | ≥3m³/min |
| Weight（kg） | 6080 |
| L*W*H(mm) | 8150*2750*3250 |
| Spreading Speed | ≥2m³/min |

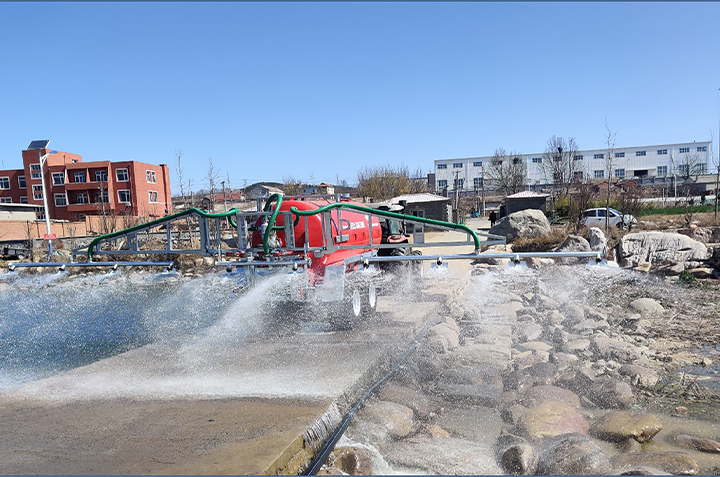

Applications:
As a professional liquid manure application machinery, this equipment is widely suitable for large-scale agricultural production scenarios, with core applications including the following fields:
1.Cultivated Land Preprocessing Operation: Suitable for base fertilizer application before tillage of various farmlands, it can evenly inject liquid manure into the soil to provide sufficient nutrients for subsequent sowing, especially suitable for the pre-planting treatment of large-grain crops such as wheat, corn, and rice.
2.Post-Tillage Sowing Matching: After the completion of land tillage, it can simultaneously complete liquid manure application and sowing operations, realizing fertilizer-seed synergy, improving seed germination rate and seedling growth quality, and reducing labor costs of subsequent topdressing.
3.Grassland and Pasture Special Operation: Specifically designed for grasslands and pastures, it can efficiently complete seed fertilizer application during forage planting and topdressing operations of adult forage grass, helping to improve forage yield and quality, and adapting to the forage planting needs of livestock breeding scenarios such as beef cattle and dairy cows.
4.Large-Scale Breeding Base Matching: It can be connected to the manure treatment system of large-scale farms, directly converting fermented liquid manure into organic fertilizer for field application, realizing manure resource utilization, reducing environmental pollution, and complying with the concept of green agricultural development.
5.Characteristic Crop Planting: Suitable for liquid fertilizer application in scenarios such as fruit and vegetable planting bases and Chinese medicinal material planting gardens. Through uniform spraying, it ensures balanced nutrient absorption of crops, improves crop quality, and avoids pollution of crops caused by direct contact with manure.
Video：
Advantages：
Compared with traditional manure application equipment, Model 2FYP-12 Slurry Tanker has the following core advantages:
1.High Spraying Uniformity and Excellent Fertilization Effect: The comb-shaped spraying bracket design enables liquid manure to be evenly spread along the operation width, avoiding problems of excessive or insufficient local fertilization, ensuring balanced distribution of soil nutrients, and improving crop absorption efficiency.
2.Reduce Manure Evaporation and Lock Core Fertility: Manure is directly transported to the surface or deep layer of the soil through a vacuum pump. Compared with the traditional surface dumping method, it greatly reduces the evaporation loss of water and nutrients in liquid manure, maximizing the retention of the fertility value of manure.
3. Avoid Crop Pollution and Ensure Product Safety: During the spraying process, manure does not directly contact crop stems and leaves, effectively avoiding pollution of crops by harmful microorganisms or impurities in manure, especially suitable for crop planting scenarios with high quality requirements such as fruits, vegetables, and Chinese medicinal materials.
4. Imported Core Components, Stable and Reliable Operation: The core control components of the tank (vacuum pumps, valves, etc.) are sourced from Italy, and the axles are selected from well-known European brands. After strict quality inspection, they have the characteristics of long service life and low failure rate, adapting to long-term high-intensity operations.
5. Excellent Corrosion Resistance and Low Maintenance Cost: The tank body adopts a hot-dip galvanizing process, which can effectively resist corrosion of liquid manure and reduce the frequency of daily equipment maintenance; it is equipped with an inspection manhole to facilitate the cleaning and maintenance of the tank inner cavity and reduce later operation and maintenance costs.
6.Compact and Flexible Structure, Suitable for Multiple Scenarios: The equipment has a small size and light weight, and can be adapted to tractors of different horsepower; it supports the selection and installation of subsoiler and other accessories, and can complete multiple operation modes such as spraying and deep application, adapting to different scenarios such as farmlands, grasslands, and pastures.
7.High Operational Efficiency, Suitable for Large-Scale Production: The integrated automatic suction and spraying design eliminates the need for manual auxiliary handling of manure, greatly improving operational efficiency; the wide-body tire design can reduce the pressure of the equipment on the ground, avoid damage to the soil structure, and adapt to large-area large-scale operations.
8.Humanized Design and Convenient Operation: Equipped with a liquid level indicator device, it can real-time check the remaining amount of manure in the tank, facilitating the reasonable planning of operation progress; the suction port is equipped with a floating ball observation window, which can intuitively observe the suction status and timely detect and handle problems such as blockage.
After-Sales Service：
We provide a 2-year warranty period for the entire machine and offer lifelong maintenance services to ensure long-term stable operation of your equipment.
FAQ：
Q1: What types of liquid manure does the equipment support for application? Is preprocessing of manure required?
A1: The equipment is suitable for liquid manure with good fluidity such as farm fermented manure and decomposed liquid organic fertilizer; it is recommended to preprocess the manure to remove large impurities such as stones and weeds to avoid clogging the spraying hoses or vacuum pump.
Q2: Does the equipment support customized accessories? What other accessories can be selected besides the subsoiler?
A2: Customized accessory services are supported. In addition to the subsoiler, different specifications of spraying hoses, enlarged capacity tanks, precision fertilization control systems and other components can be selected and matched according to customer needs to adapt to special operation scenario requirements.
