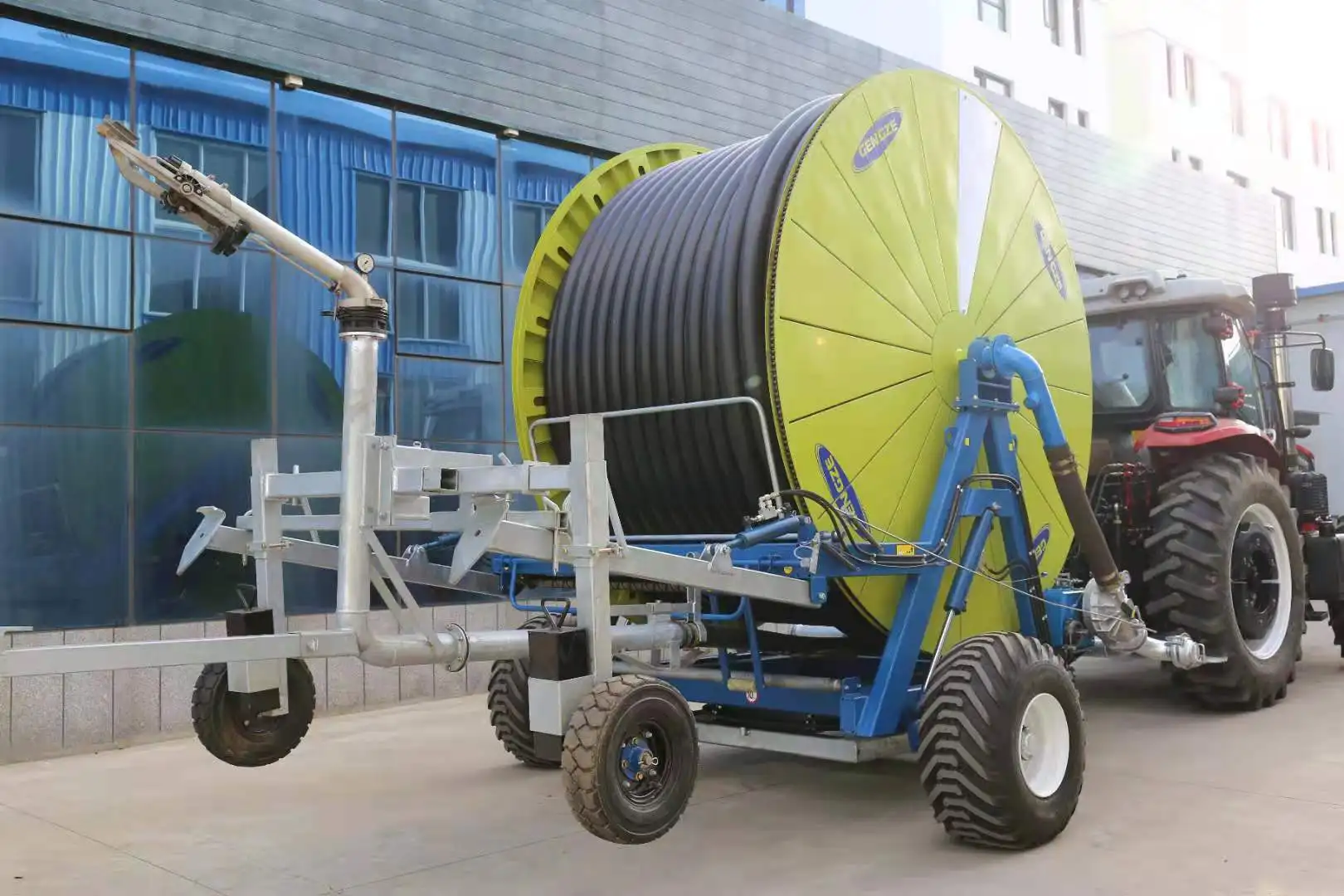

Affordable Electric Hose Reel Irrigation System PE Steel Reel with Boom Outdoor Use / Spray Gun
Working principle: It uses an electric motor as the power source. After the motor is powered on, it drives the reel to rotate, achieving the retraction and extension of the PE water delivery pipe. Meanwhile, water from the water source is delivered to the nozzles through water conveyance pipes. The nozzles spray the water above the crops, scattering it into fine water droplets that fall evenly. As the sprinkler truck moves under the traction of PE pipes, it achieves uniform irrigation of the farmland.
Hose Reel lrrigation with the electric motor | |||||
PE Pipe Diamter |
mm |
65 |
75 |
90 |
100 |
PE Pipe Length |
m |
250/300/400/450 |
250/300/350 |
400/450 |
350 |
Water Flow |
m3/h |
10-21 |
13-34 |
14-34 |
27-73 |
Nozzle Diameter |
mm |
12-16 |
14-20 |
14-20 |
20-30 |
Inlet Pressure |
0.5-0.8Mpa |
||||
It is suitable for the irrigation of field crops such as wheat, corn and soybeans, as well as economic crops such as vegetables and fruit trees. It is especially suitable for areas with guaranteed water sources and convenient power supply. It has broad application prospects in large-scale planting parks, family farms, vegetable bases, etc. Under conditions of insufficient water pressure, the same sprinkler irrigation effect can be achieved by using the motor recovery method.
L*W*H: 2730*2220*2980mm
