Description:

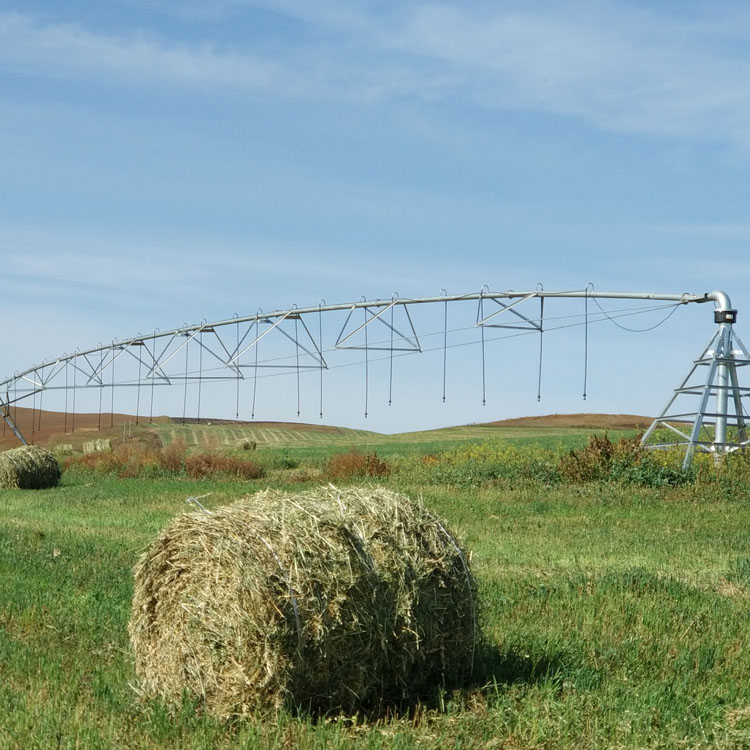

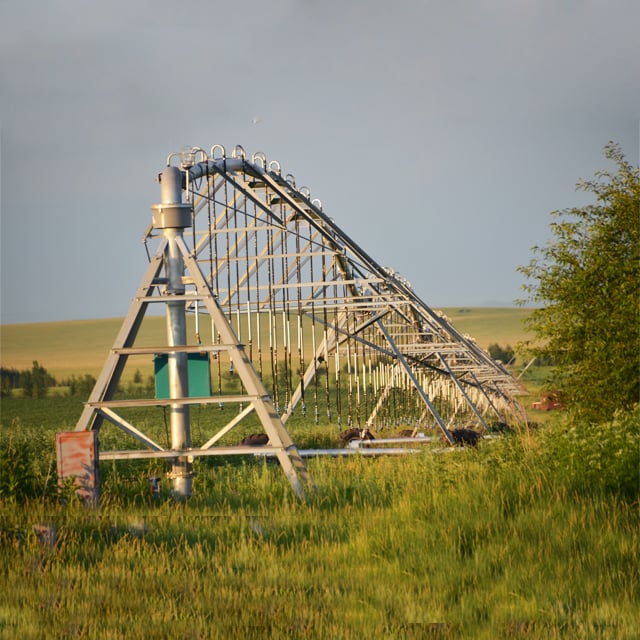

Center-Pivot: Water is delivered from the center or pivot point of the system. Water is applied at a constant rate by progressive increase of nozzle size from the center pivot to the end of the line. The depth of water applied is determined by the rate of travel of the system.
Furrow guidance or steel cable guidance

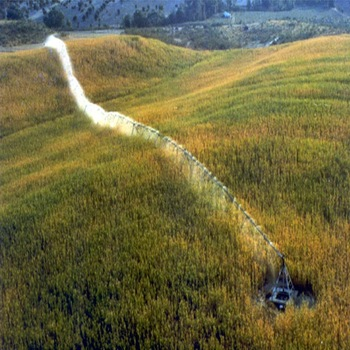

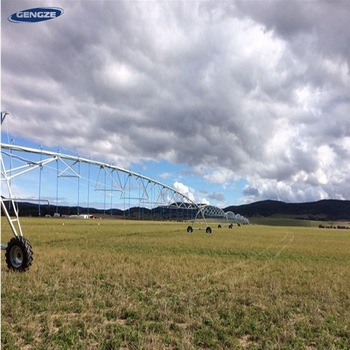

A multi-span system runs around its pivot tower and irrigates the earth within its coverage.
Moveable version available
Specifications:
| Linear Irrigation System Allocation Standard | |
| Main pipe diameter | 6-5/8'' |
| Cantilever pipe diameter | 5-9/16'' |
| Pipe length | 22 feet/one, (6.7m) |
| Standard span | 54.5m (8 pipes) and 48m (7 pipes) |
| Main Pipe Flange thickness | 10mm,Flange and pipe adopt double welded technology |
| Working voltage | 460--380V/50--60HZ |
| Power supply mode | diesel generator and the local power company provide |
| Tire type | 14.9x24 irrigation tire |
| Motor power | 0.75~1.5 horse power |
| Motor speed reducer | output speed of electric transmission gearbox:28--86RPM |
| Tire speed reducer | the drive ratio is 50:1 |
| Irrigation intensity | 5-50mm(within the range is adjustable) |
| Irrigation uniformity | ≥90% |
| Climbing capacity | ≤25% |
| The end has | LED working status instruction light |
| Irrigation intake | 1 water inlet in center point,quick pipe joint connected structure |
| Irrigation intake caliber | 8inches,the spot water supply pipe is more than 6 inches |
| Irrigation intake pressure | 0.20--0.35mpa |
Advantages：
1. Advanced production facilities and perfect process to realize mass professional, high-quality, low-consumption and efficient mode of production.
2. All parts are hot dip galvanized and meet US ASTN-A123 Standard to assure 30 years free from corrosion.
3. Can cover 1.67-167ha. By one single center pivot.
4. Suitable for large-area irrigation of cash crops such as corm potatoes, beans, grains, pasture grass, cotton and fruit trees.
Applications:
FAQ：
Q: What is the minimum quantity I can order?
A:1 set
Q: Can you make ODM?
A: Yes, we can, we have been the OME for the most famous American brand more than 20 years.
Q: How many years warranty you can support?
A: One year standard warranty, but will supply more service if you need, pls contact us for more discussion.
