Product Description

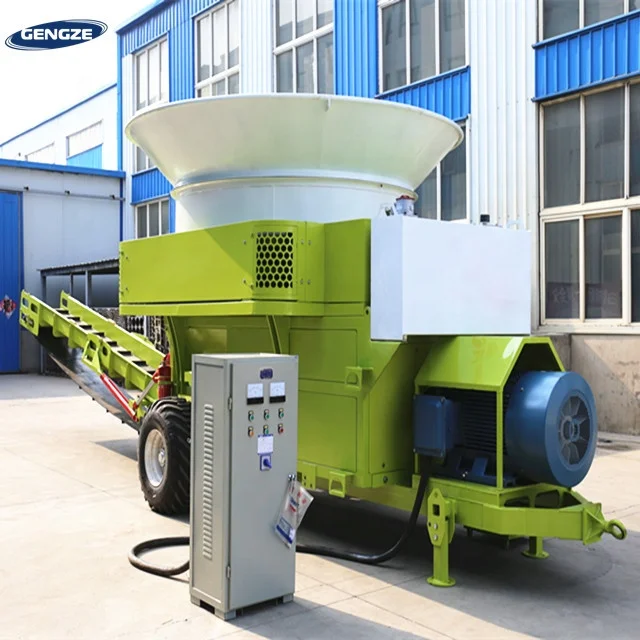

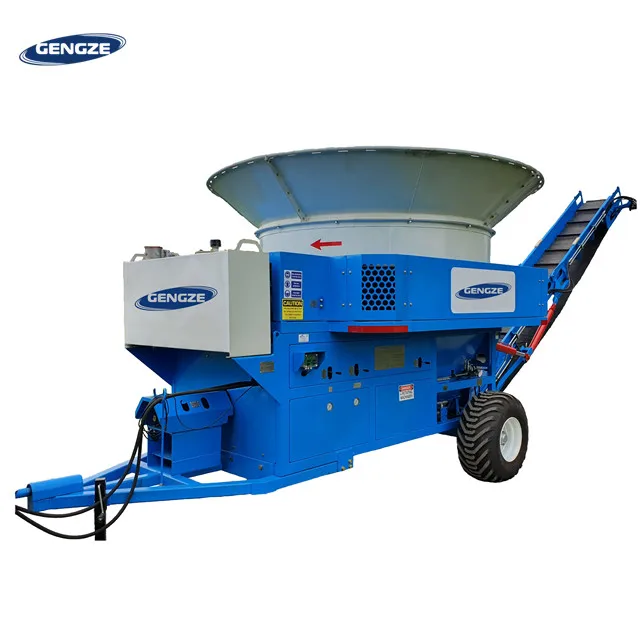

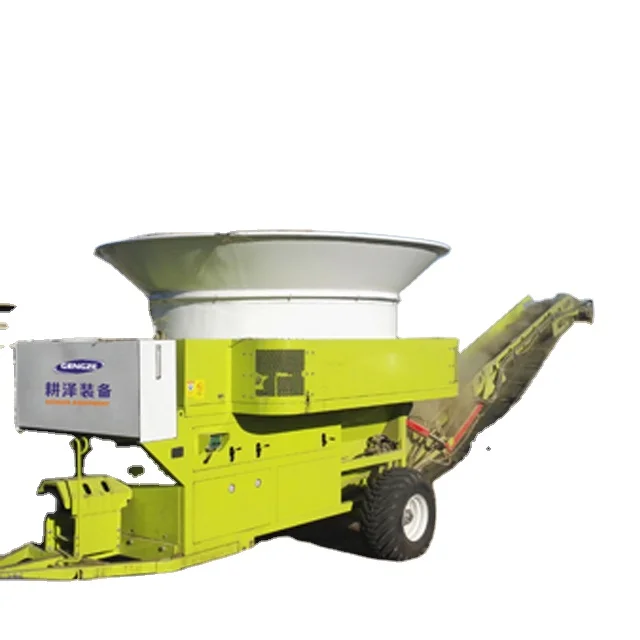

Large Scale Tractor PTO Corn Stalk Tub Grinder Maize Silage Straw Hammer Mill Shredder are designed to treat hay,straw, stalk and kinds of corns in baled and bulk to make the feed more palatable or allow the bedding more suitable for the cattle to live. They are normally smaller and lighter than the industrial ones. They are usually driven by a tractor PTO shaft or mounded an electrical motor or a diesel engine. Our agricultural tub grinder is an economic option of grinding for large dairy farm, which own more than 1000 cattle.
Product Name |
Large Scale Tractor PTO Corn Stalk Tub Grinder Maize Silage Straw Hammer Mill Shredder |
||||||
Rotor hammer mill |
Fly hammer: 40
Fly hammer shaft: strength alloy steel
Drive: PTO
|
||||||
Combined power |
Motor drive: 75-120 kw
Option: Tractor drive: 80-100 HP
|
||||||
Screen mesh |
Thickness: 6 mm Diameter of hole :6 mm-125 mm |
||||||
Drum/Tub |
Outside width: 3.2m Inside Dia: 2.3m |
||||||
Screw pusher |
Type: bi-column symmetric Length: 1150mm |
||||||
Capacity |
Hay: 2-8T/H; Corn: 20-30T/H |
||||||
Discharging conveyor |
Type: folding hydraulic drive; Maximum lifting height: 4.19 m; Belt: Rubber |
||||||
Apply To |
Herbage, rice straw, oat grass, alfalfa, corn straw, rape straw, wheat straw, weeds, etc. Corn kernels (high moisture content), corn cobs, etc.
|
||||||
Grinding Corn

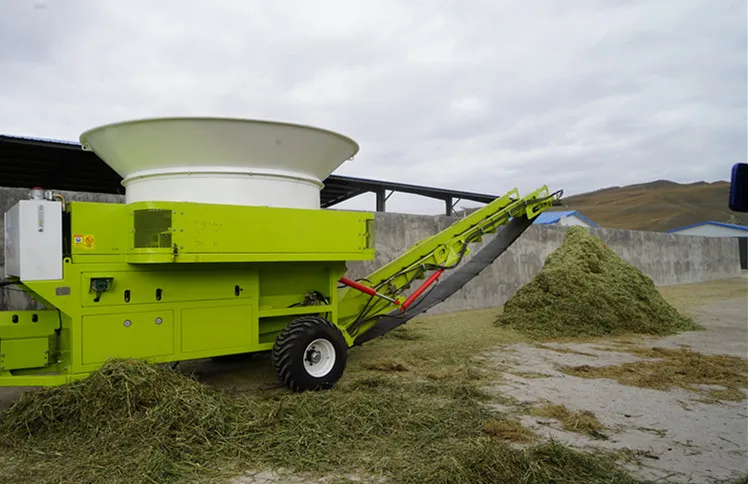

Grinding Silage
Grinding Effect Display
Detailed Images
The tub on the platform can be turnover with safe lock device, so that repair and parts changed can be easily accessed.
The new designed dual belly augers are suspended by two heavy duty bearings, to make sure the easy flow of outlet.

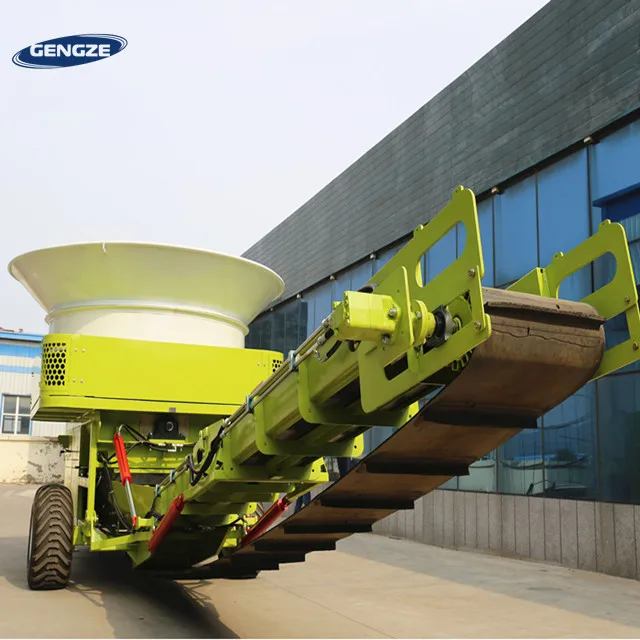

A folding conveyor boom with belt is designed for easy clean, easy transferring and hurling the ready grinded material up to 4.19 meters.

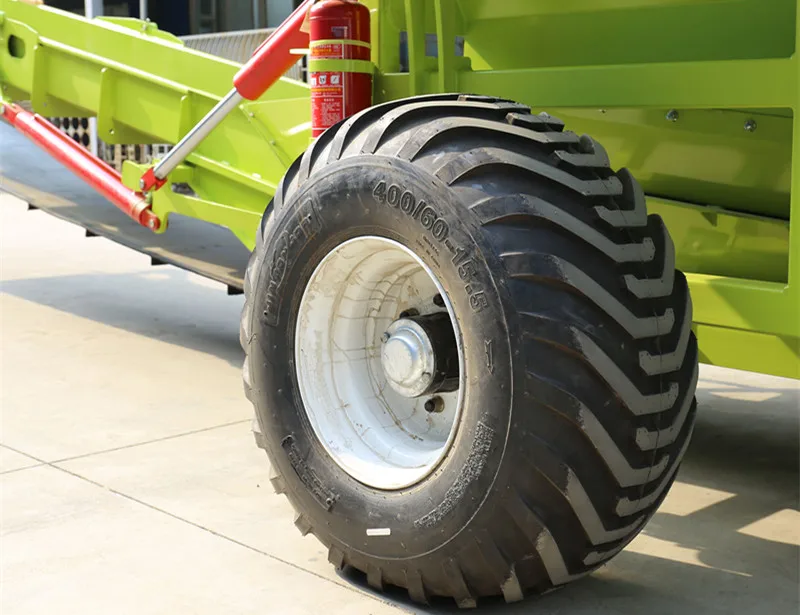

There are two agricultural tires mounded on the axel, they are strong and suitable enough for the tough countryside path.
Simple operation allow the heavy job to be enjoyable. By the hydraulic handles mounded on the machine, the perfect grind effect come out.
The hydraulic cylinder on our machine, which can let the conveyor boom complete up and down and folding.

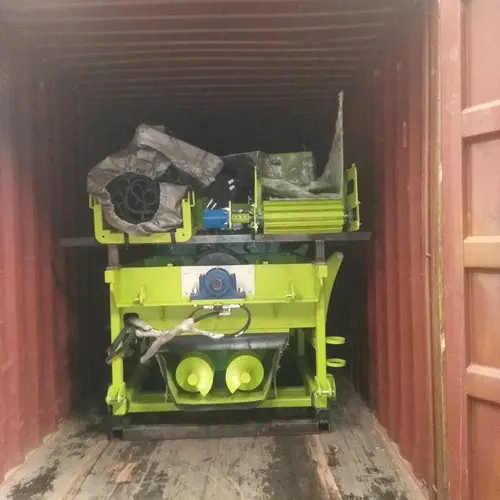

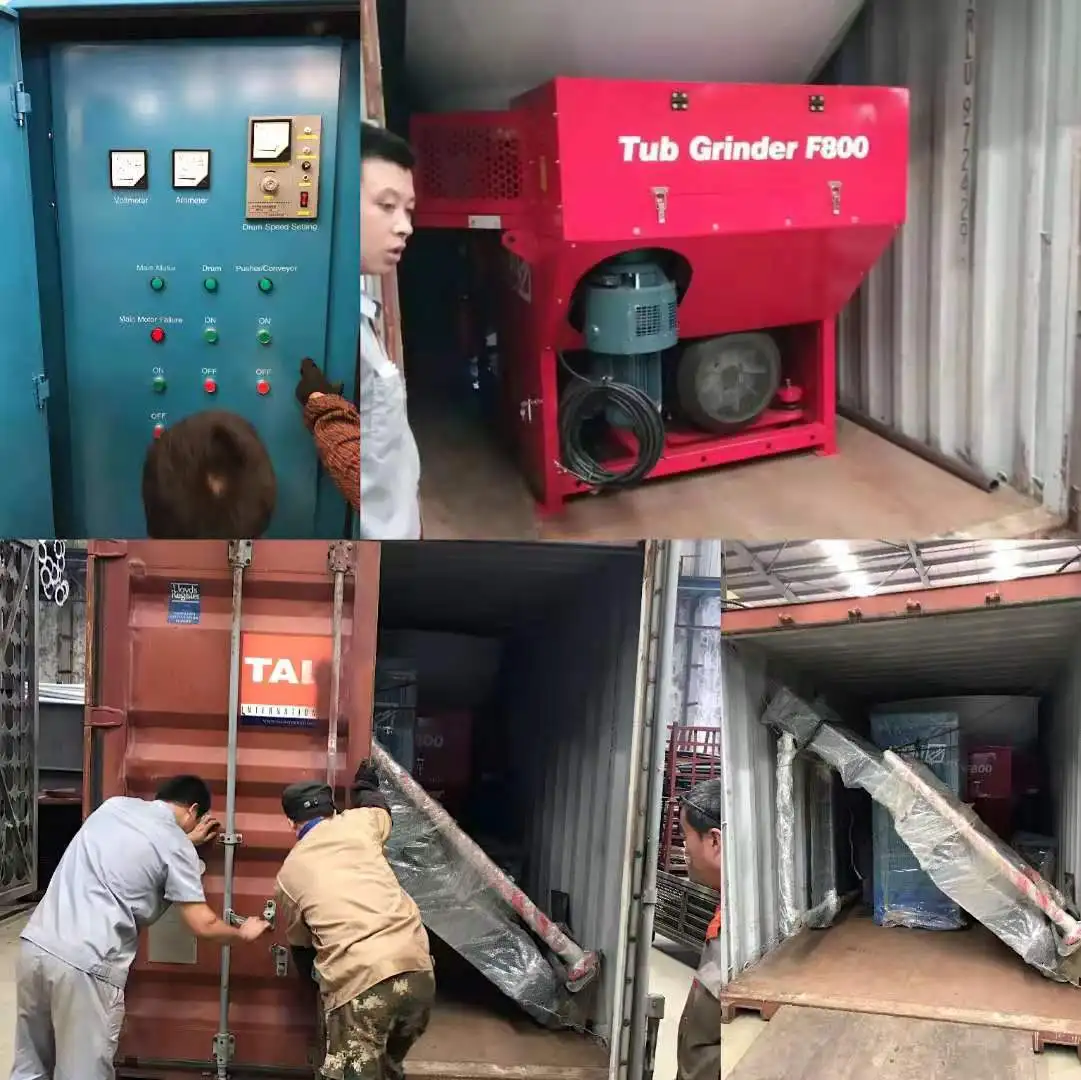

Packing&Delivery
Our Large Scale Tractor PTO Corn Stalk Tub Grinder Maize Silage Straw Hammer Mill Grinder are all large scale, so normally would be delivered with full container load.
The standard export wooden boxes or pallets , which meet the international trading regulation, will be offered by our side.
The reliable shipping agent will be chosen, if the customer prefer the appointed shipping agent, also acceptable.
