Grinding Effect Display
- Overview
- Related Products
Product Description

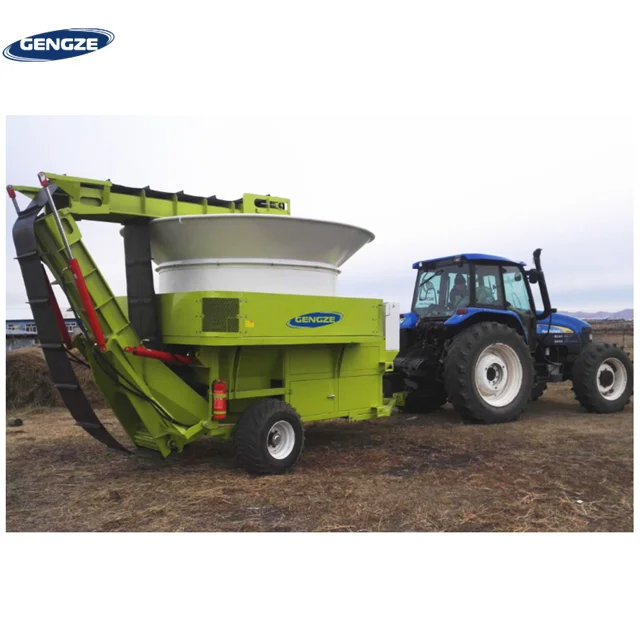

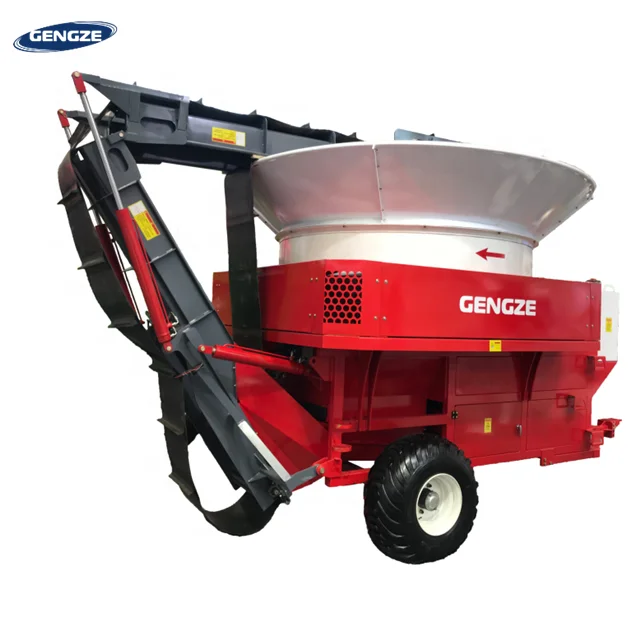

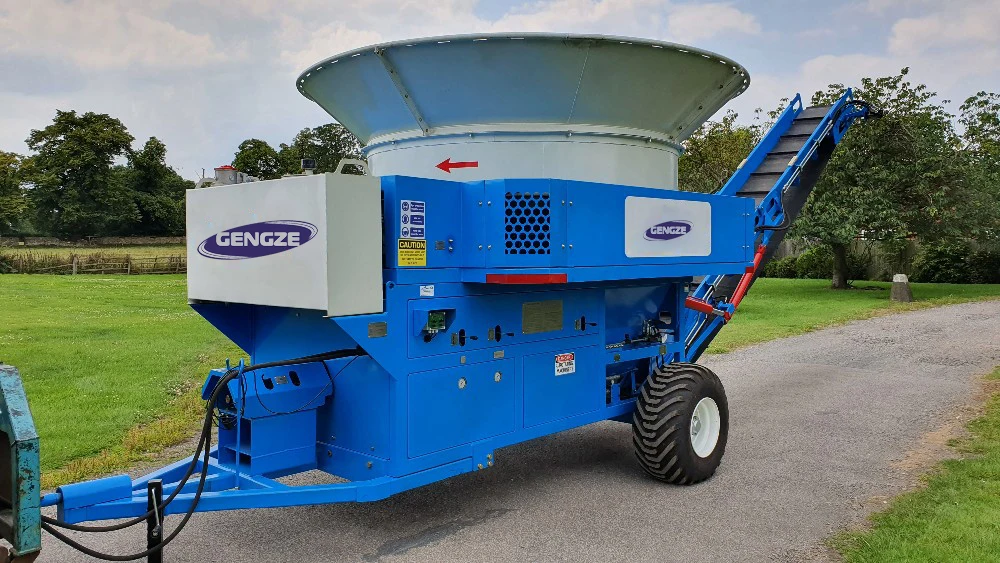

F800 Agricultural Tractor PTO Driven Cattle Feed Straw Maize Silage Processing Tub Grinder uses a series of rotors, knives, or hammers to process and chop up round or square bales. After the tub grinder processed the desired materials, it shoots it up a discharge elevator which can be raised, lowered, swung or folded to your desire hydraulically.
Name |
F800 Agricultural Tractor PTO Driven Cattle Feed Straw Maize Silage Processing Tub Grinder |
|||
Rotor hammer mill |
Fly hammer: 40
Fly hammer shaft: 8
Drive: PTO
|
|||
Combined power |
Motor drive: 55-75 kw |
|||
Screen mesh |
Thickness: 6 mm Diameter of hole :6 mm-125 mm |
|||
Drum/Tub |
Thickness: 3mm
Umbrella diameter: 2.6m
Tub diameter: 2m
Tub depth: 0.8m
|
|||
Screw pusher |
Type:Diallel symmetry
Length: 1150mm |
|||
Capacity |
Hay: 2-5T/H; Corn: 3-5T/H |
|||
Apply To |
Herbage, rice straw, oat grass, alfalfa, corn straw, rape straw, wheat straw, weeds, etc.
Corn kernels (high moisture content), corn cobs, etc.
|
|||

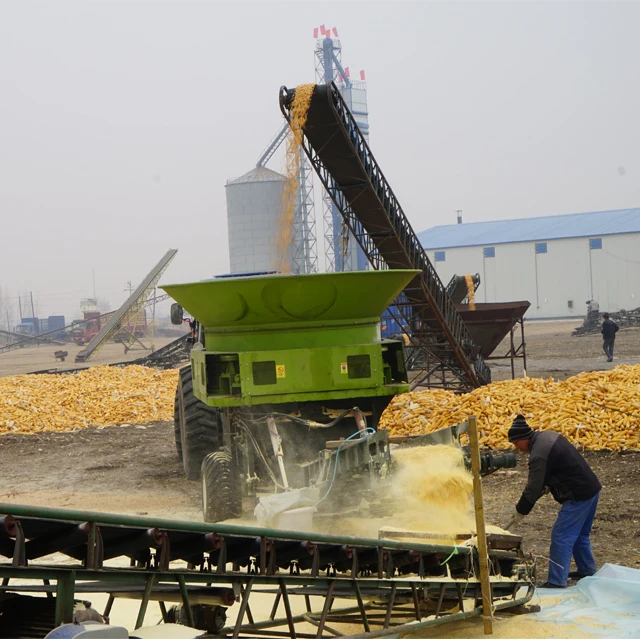

Grinding Corn

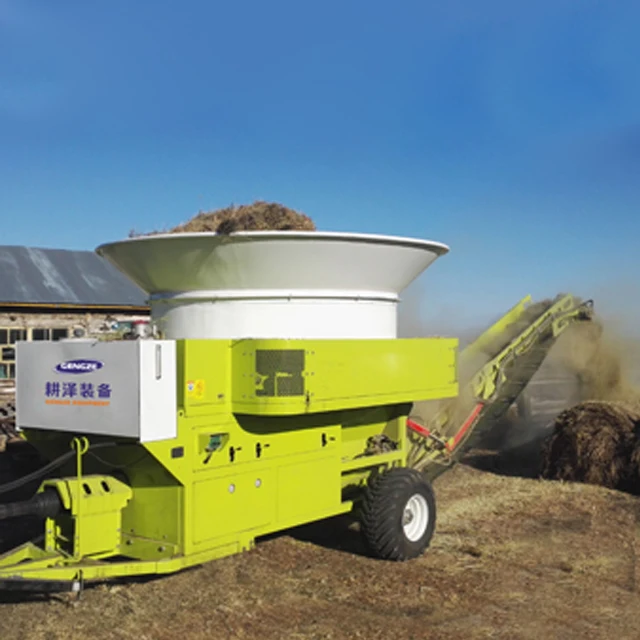

Grinding Silage
Detailed Images
The tub on the platform can be turnover with safe lock device, so that repair and parts changed can be easily accessed.
The new designed dual belly augers are suspended by two heavy duty bearings, to make sure the easy flow of outlet.
A folding conveyor boom with belt is designed for easy clean, easy transferring and hurling the ready grinded material up to 4.19 meters.
There are two agricultural tires mounded on the axle, they are strong and suitable enough for the tough countryside path.
Simple operation allow the heavy job to be enjoyable. By the hydraulic handles mounded on the machine, the perfect grind effect come out.
The hydraulic cylinder on our machine, which can let the conveyor boom complete up and down and folding.
