Product Description

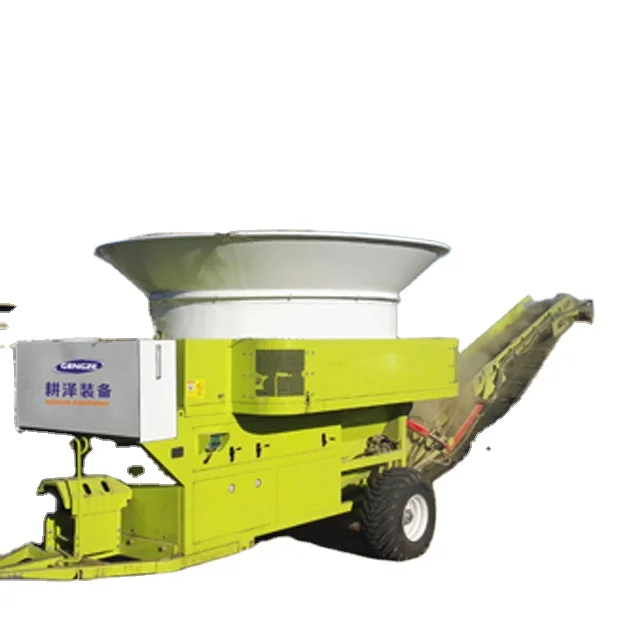

Large Scale PTO Cattle Feed Straw Hay Bales Hammer Mill Chopper Tub Grinder uses a series of rotors, knives, or hammers to process and chop up round or square bales. After the tub grinder processed the desired materials, it shoots it up a discharge elevator which can be raised, lowered, swung or folded to your desire hydraulically.
Name |
Large Scale PTO Cattle Feed Straw Hay Bales Hammer Mill Chopper Tub Grinder |
||||||
Rotor hammer mill |
Fly hammer: 64
Fly hammer shaft: 8
Drive: PTO
|
||||||
Combined power |
Motor drive: 90-150 kw
Option: Tractor drive: 90-180 HP
|
||||||
Screen mesh |
Thickness: 6 mm Diameter of hole :6 mm-125 mm |
||||||
Drum/Tub |
Outside width: 3.2m Inside Dia: 2.3m |
||||||
Screw pusher |
Type: bi-column symmetric Length: 1150mm |
||||||
Capacity |
Hay: 3-15T/H; Corn: 40-70T/H |
||||||
Discharging conveyor |
Type: folding hydraulic drive; Maximum lifting height: 4.19 m; Belt: Rubber |
||||||
Apply To |
Herbage, rice straw, oat grass, alfalfa, corn straw, rape straw, wheat straw, weeds, etc. Corn kernels (high moisture content), corn cobs, etc.
|
||||||

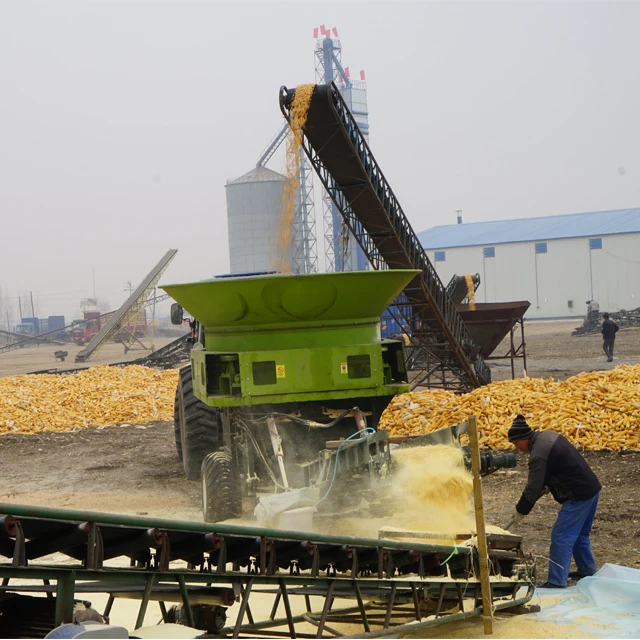

Grinding Corn

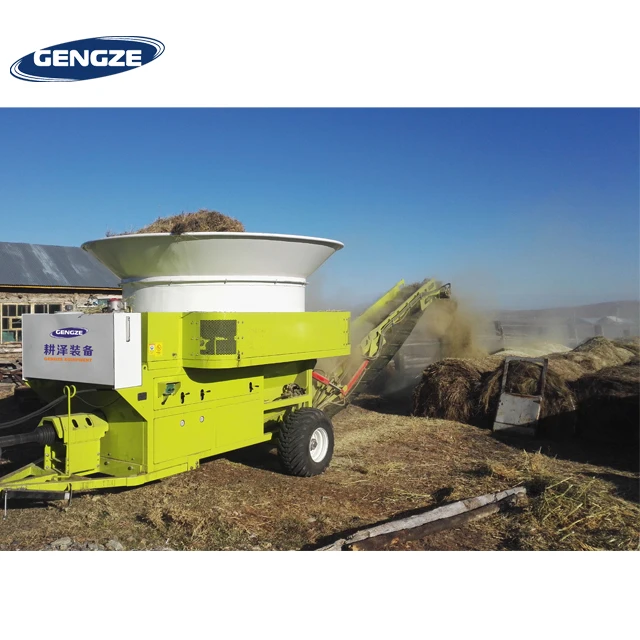

Grinding Silage
Related Products
More models for your choice.
Detailed Images
Electrical governor mounded on the machine , which control the stability of power outlet, adjust the tub speed. Also the tub rotating direction, stop is controlled by it.
Hydraulic station to provide power for machine operation

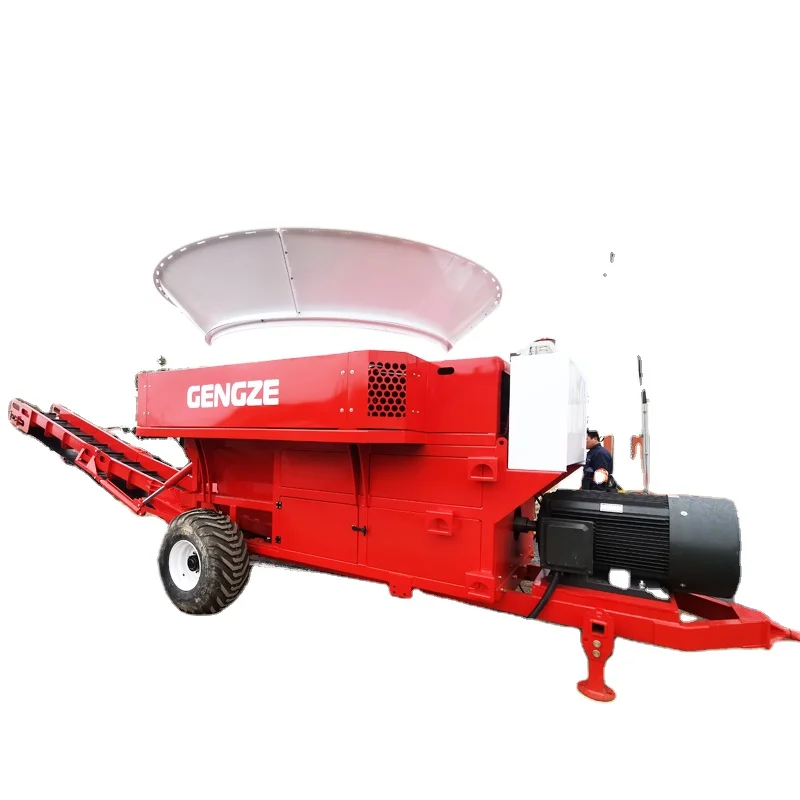

Motor Powered Big Size Hay Bales Crushing Chopper Machine Wheat Straw Maize Silage Tub Grinders
The hammers set as consumable parts can work with machine 2000- 4000 hours. And it is driven by 8-blet engine system , simple structure , not easy to shut-down
The tub on the platform can be turnover with safe lock device, so that repair and parts changed can be easily accessed.
The new designed dual belly augers are suspended by two heavy duty bearings, to make sure the easy flow of outlet.
Smart and unique design chosen on the cylinders, make sure the boom to be folded./A folding conveyor boom with belt is designed for easy clean, easy transferring and hurling the ready grinded material up to 4.19 meters.
There are two agricultural tires mounded on the axel, they are strong and suitable enough for the tough countryside path.
Simple operation allow the heavy job to be enjoyable. By the hydraulic handles mounded on the machine, the perfect grind effect come out.
The hydraulic cylinder on our machine, which can let the conveyor boom complete up and down and folding.
