Description:

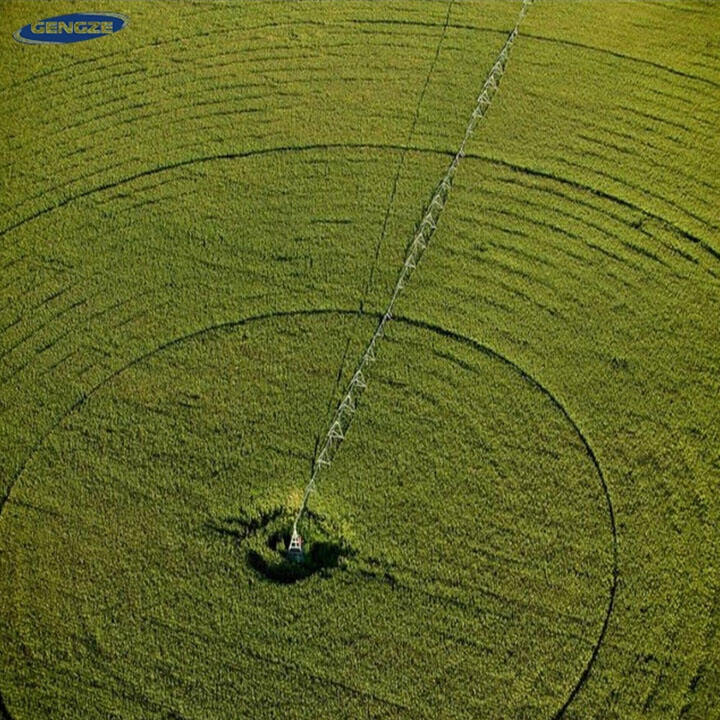

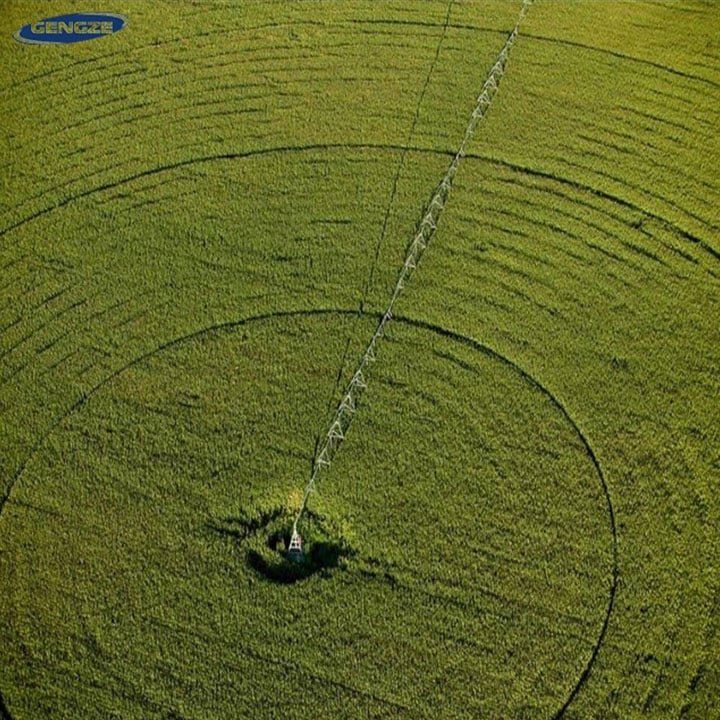

Center-pivot irrigation (sometimes called central pivot irrigation), also called circle irrigation, is a method of crop irrigation in which equipment rotates around a pivot and crops are watered with sprinklers. A circular area centered on the pivot is irrigated, often creating a circular pattern in crops when viewed from above (sometimes referred to as crop circles). Most center pivots were initially water-powered, and today most are propelled by electric motors.
One end of the machine is fixed and other spans move clock wise by motor drive tires, which is called fixed center pivot system.
Specifications:
| Pipeline Diameter | 141mm,168mm,203mm,254mm |
| Pipeline Material | Hot-dip galvanized pipe, Steel 304 pipe, Aluminium pipe, Hot galvanize pipe with poly span inside |
| Pipeline Thickness | 3.2mm |
| Pipe Length | 6.7m |
| Span Lengths | 61.3m, 54.5m,48m,41m,34m |
| Overhang length | 3.35m-26.8m |
| Maximum Machine Length | 1200m |
| Clearance | 2.6m,3.1m,4.1m,5m |
| Tire Options | 11.2"x22.5"; 11.2"x24.5"; 11.2''x24''; 14.9"x24'' |
| Maximum Towers | 20 |
| Power Supply | 380v-460v |
Advantages：
●Full flow collector ring
The collector ring is mounted externally, eliminating water flow restriction.
●Robust pivot point
Standard, medium, high and ultra-high clearance options to fit a variety of crops
Applications:
FAQ：
Q: What’s your accepted payment terms?
A:T/T or LC
Q: How many sets machine can be loaded in a 40ft container?
A: About 1set with 500m or 2sets with 250m.
Q:How many years warranty you can support?
A: One year standard warranty, but will supply more service if you need, pls contact us for more discussion.
