Description:

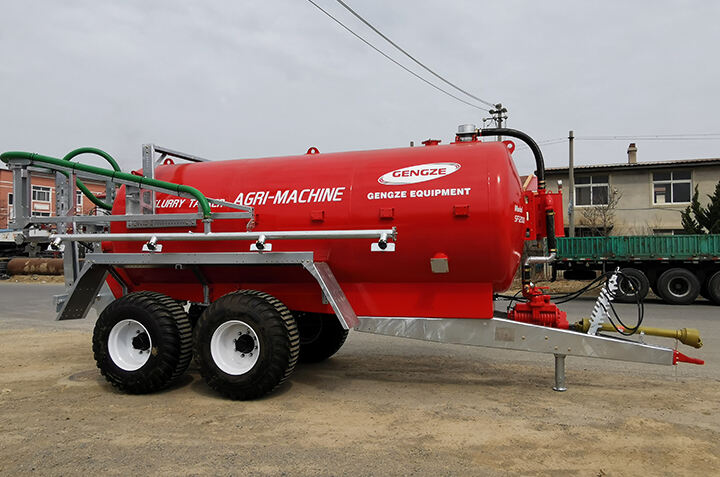

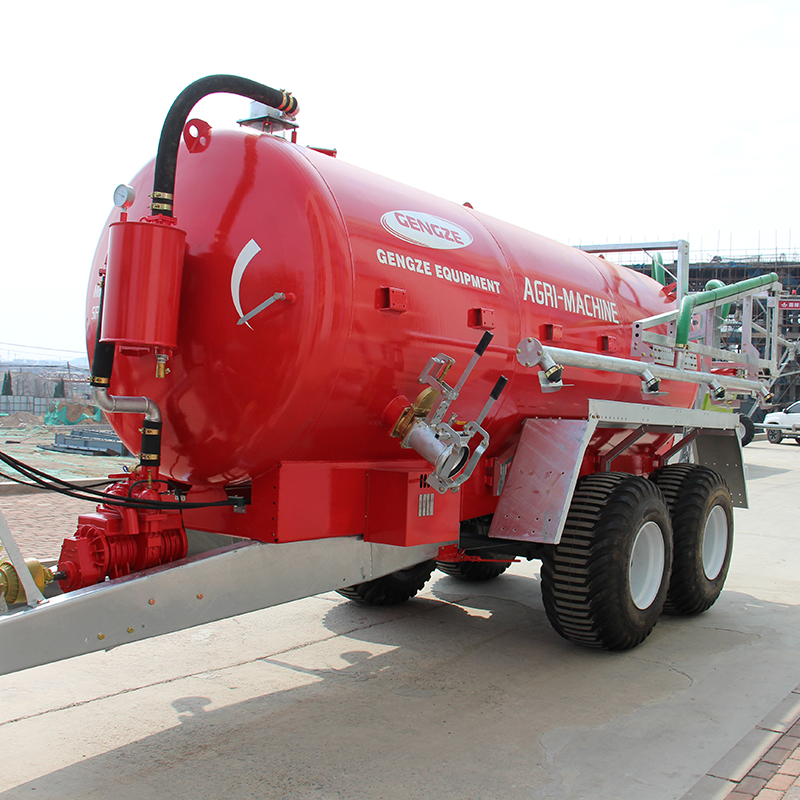

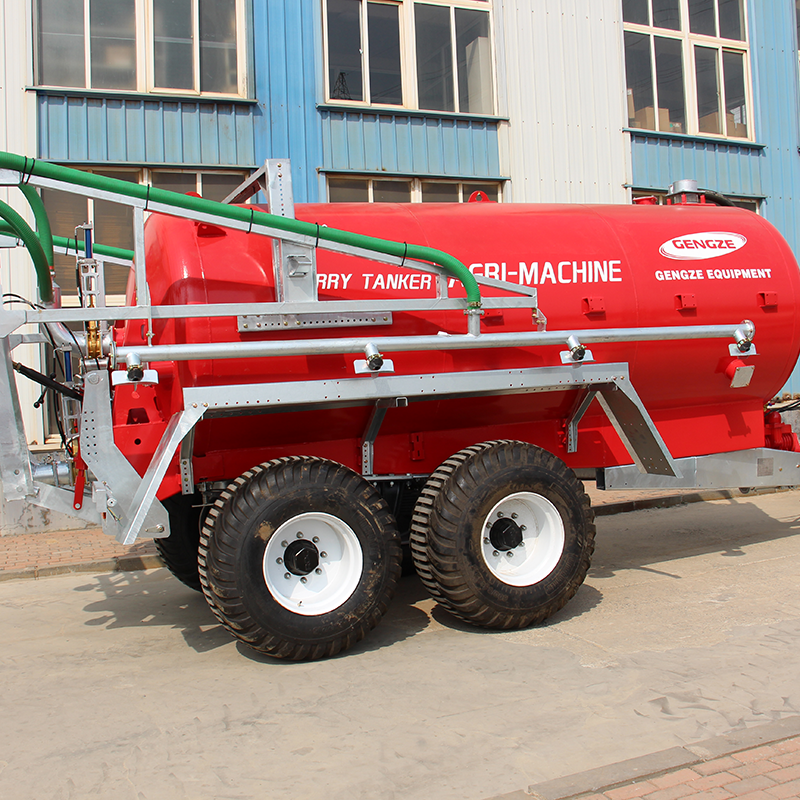

The liquid organic fertilizer applicator is an innovative agricultural machinery designed to streamline fertilization processes. Powered by a tractor, this equipment combines efficiency and precision to meet modern farming needs.

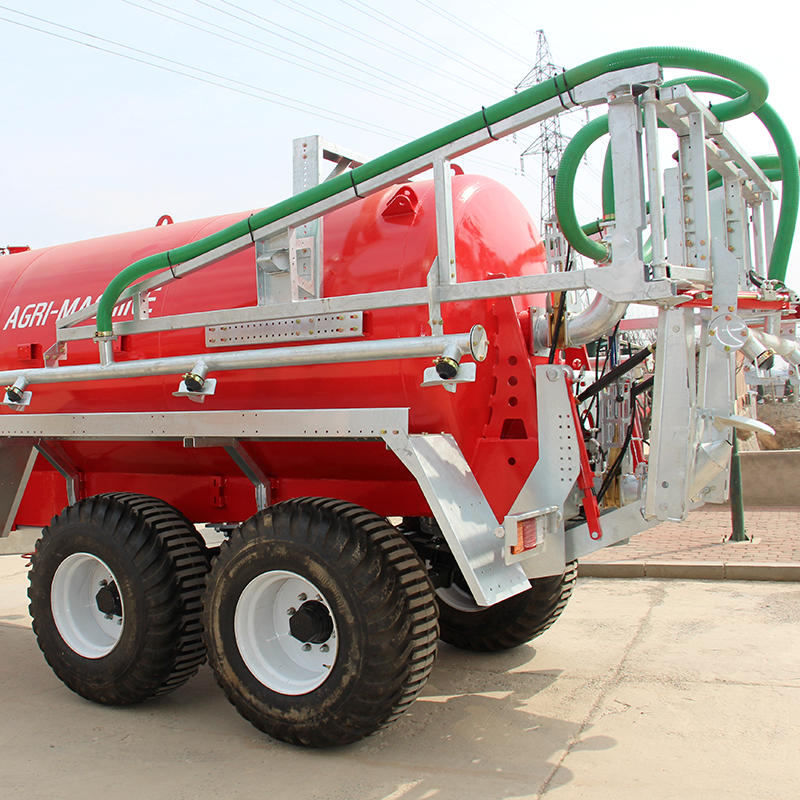

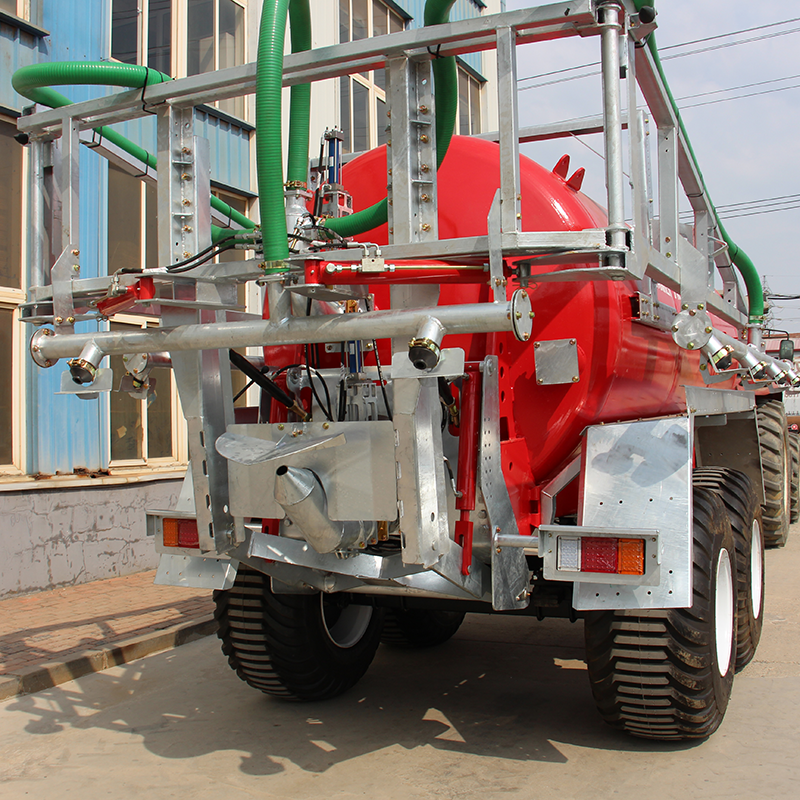

At its core is a specialized spraying system: multiple flexible hoses are arranged in parallel to form a comb-like spraying frame. This design ensures wide, uniform coverage across fields, with adjustable spacing to accommodate different crop rows and planting densities. For deeper soil nutrition, the applicator can be optionally equipped with deep-loosening fertilizer plows—these attachments penetrate the soil, delivering nutrients directly to root zones where plants can absorb them most effectively.

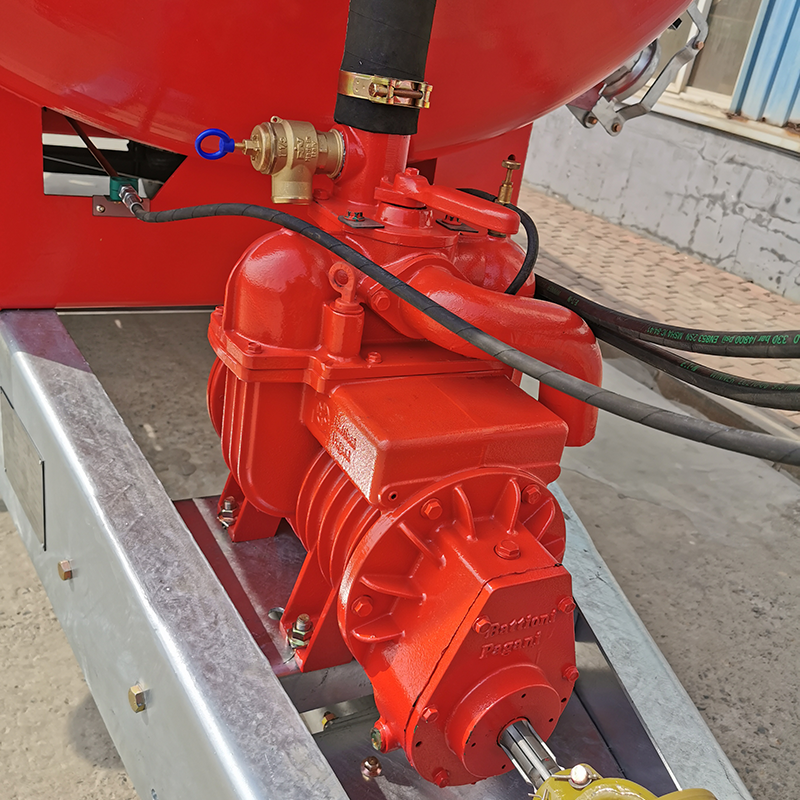

The machinery operates using a robust vacuum pump system, which efficiently draws liquid organic fertilizer. This pump-driven mechanism eliminates manual handling, minimizing waste and ensuring a steady, controlled flow of fertilizer through the hoses (or plows) directly into the soil.
Ideal for both large-scale farms and medium-sized operations, this applicator simplifies the distribution of liquid organic nutrients, reduces labor costs, and enhances nutrient absorption—ultimately supporting healthier crop growth while aligning with sustainable farming practices. Its compatibility with standard tractors makes it easy to integrate into existing agricultural workflows, offering versatility across various soil types and crop varieties.
Specifications:
| Surface Treatment： | In/Out-side hot dip galvanizing+painting: anti-corrosion |
| Transmission Shaft: | High quality |
| Tyre: | European standard wide body tires |
| Tail Fertilizing Options: | Five options available |
| Vacuum Pump： | Italian imported brand |
| Loading Mode： | Negative pressure self-priming |
| Hydraulic Fittings： | Industrial grade American Eaton standard |
Applications:
Video：
Advantages：
Slurry manure spreader is mainly suitable for applying base fertilizer before tillage, sowing after tillage and seed fertilizer application in hrasslands and pastures. This series spreader has the characteristics of compact structure, wide application range, high operating efficiency, and even spreading. It is very suitable for use in large farms, grasslands, and pastures. It has the following advantages:
1.The main components of the tank are imported from Italy (vacuum pump, gate valve, vacuum regulating valve, over-pressure safety valve), It integrates vacuuming and air compression (automatic suction and spraying) with small size, light weight, long service life and high work efficiency; The axle is made of ADR (Italy) or Monluco (France) with stable and reliable quality;
2.Using hot-dip galvanizing process with better effect of corrosion resistance;
3.Different accessories can be used to complete different liquid fertilizer spraying operations according to customer needs;
4.Use wide-body tires to reduce ground pressure;
5.The tank and chassis are integrated welding to lower center of gravity, more stable；
6.Anti-surge baffle and support rings are installed inside the tank to make it more stable and stronger when moving；
7.With A liquid level indicator device to facilitate checking the liquid level;
8.With manhole, easy to clean and maintain;
9.The suction port is equipped with a floating ball observation window for easy viewing.
FAQ：
1.Are you trading company or manufacturer?
- We are factory,and producing agricultural machine for more than 20 years.
2.How long will it take to manufacture and ship the machine?
-Time spent on each order depends on the quantity and specifications of your order. Some machines we have in stock, but special
orders require more time. We can provide you a time estimate once we have adequate information concerning your order.
3. What's the payment terms?
-We accept 30% down by T/T (wire) or 70% by L/C or T/T before shipment.
If you have another question, please feel free to contact jasmine.
