Description:

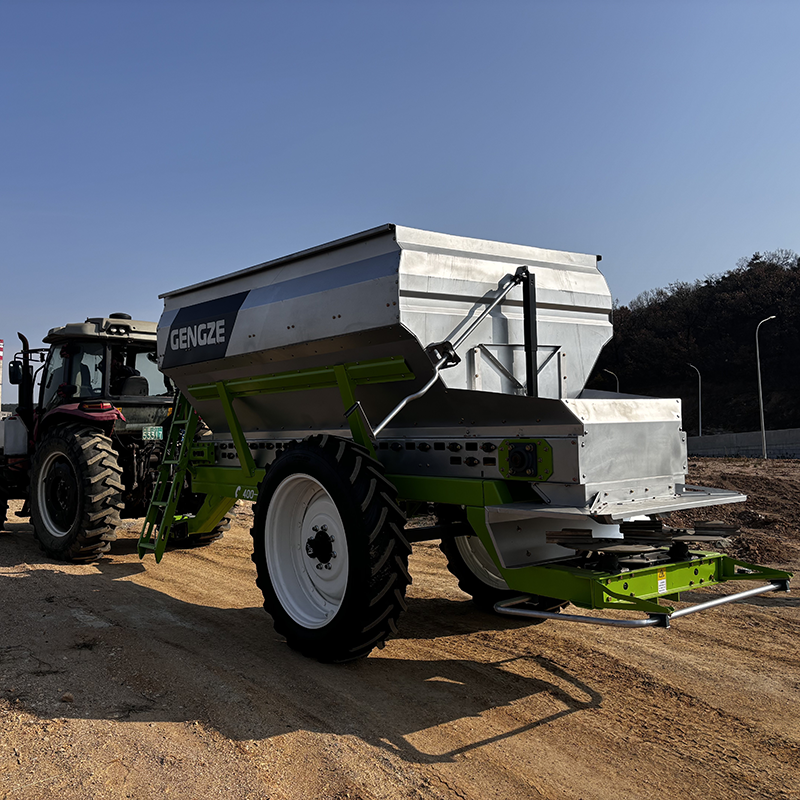

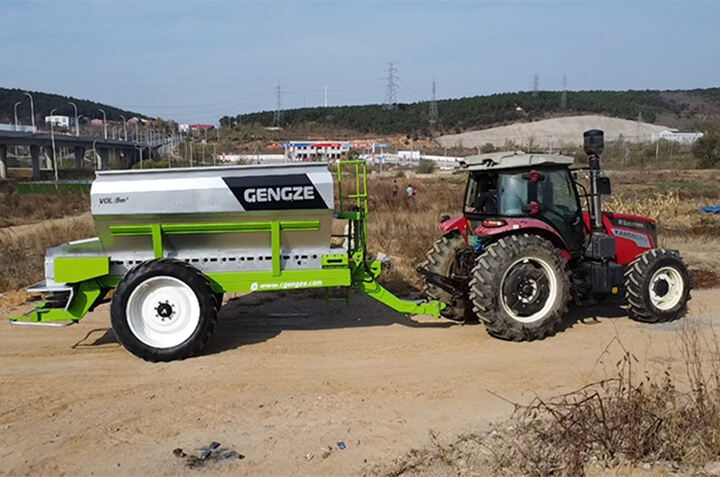

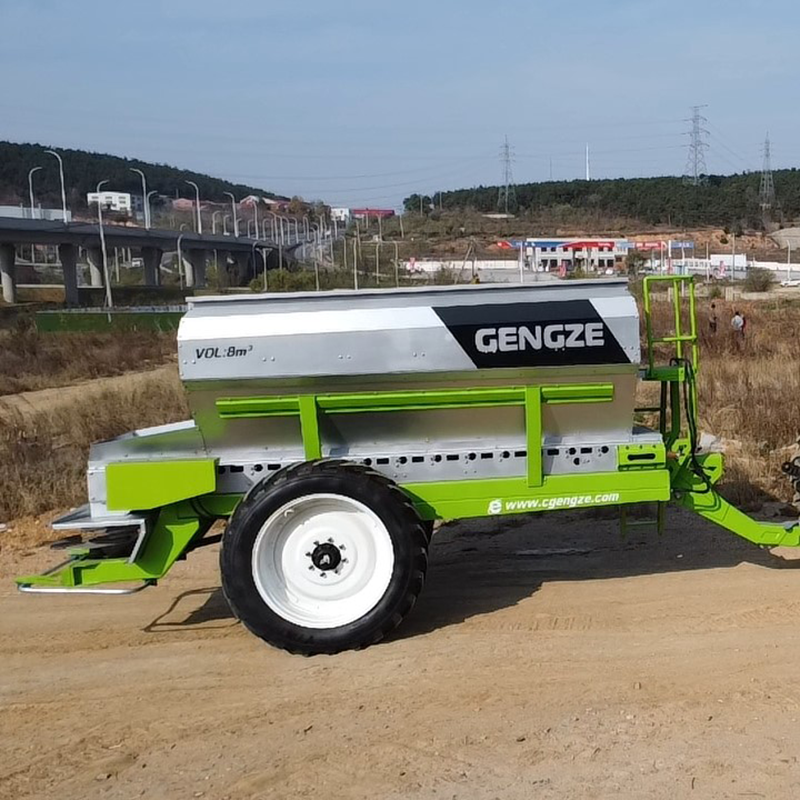

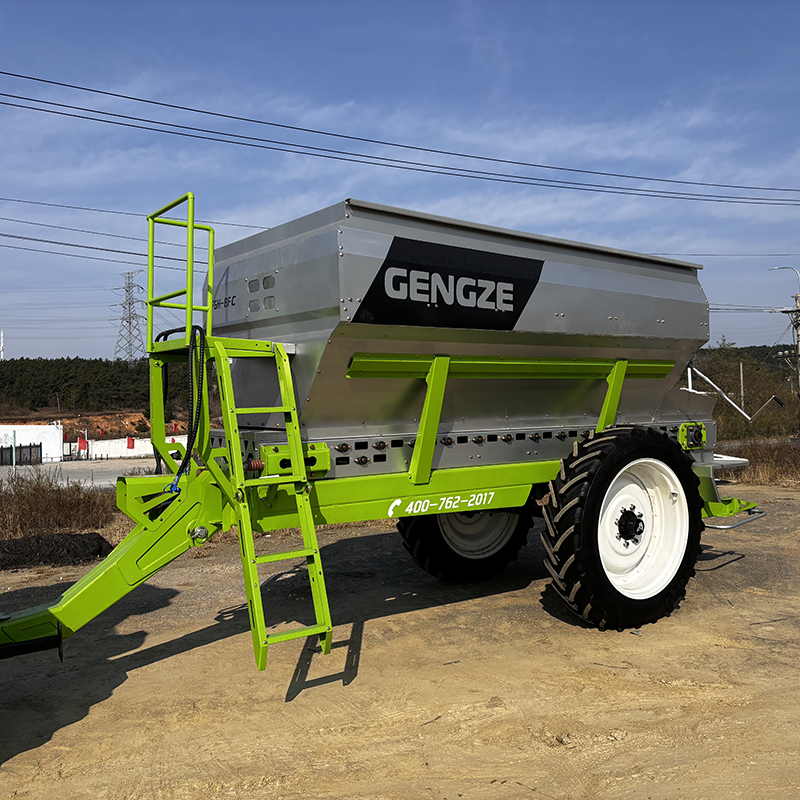

The fertilizer transport system of the Double-Disc Granular Fertilizer Spreader is regulated by highly responsive hydraulic motors, which draw hydraulic fluid pressure directly from the tractor’s on-board hydraulic system—ensuring seamless power integration and consistent operational performance. To safeguard critical components against unexpected overloads, robust rigid coupling elements are integrated into the drive train, effectively mitigating damage from excessive torque or operational stress.
Moreover, the spreader is equipped with specialized structurally optimized throwing discs, crafted through precision manufacturing processes. These discs not only boast enhanced structural integrity and wear resistance for long-term use but also refine the distribution trajectory of granular compound fertilizer. This design upgrade further elevates spreading uniformity and accuracy, minimizing fertilizer waste while ensuring even nutrient coverage across the field.
Specifications:
| Machine weight | 3000 kg |
| Maximum load capacity | 6000 kg |
| Spread width | 6m-15m |
| Number of single disc blades | 2 pieces |
| Minimum ground height | 400mm |
| Driving mode | PTO（Driving shaft） |
| Efficiency | ≥6m³/h |
| Travel speed | 3-20km/h |
Applications:
Video：
Advantages：

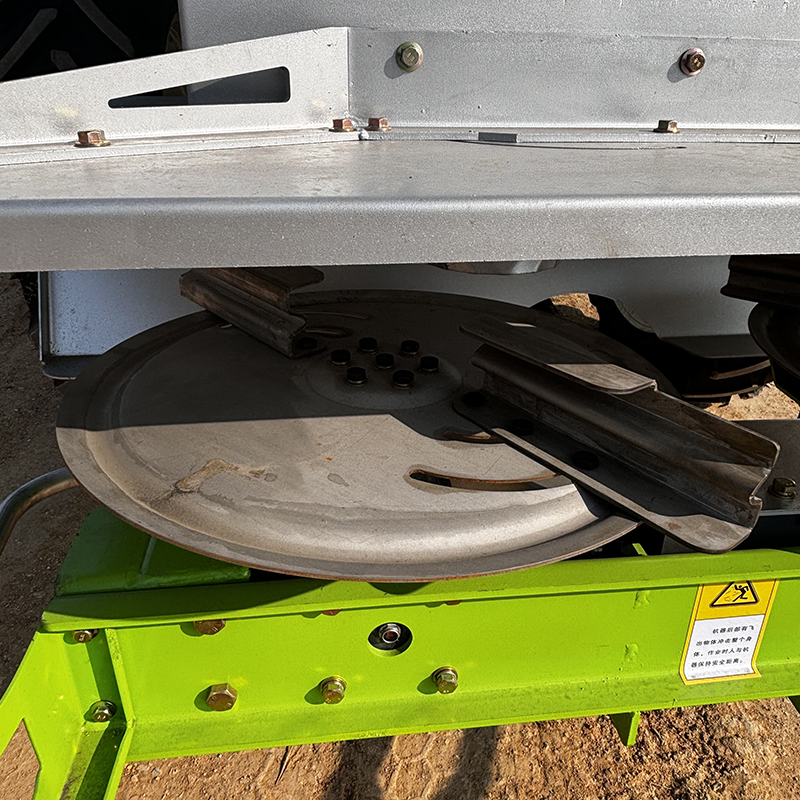

1.The spreader’s disc and blade boast a special process-shaped design: the disc has a streamlined contour, and the blade integrates reinforced edges. This avoids material clogging during high-speed rotation, keeps the throwing device running stably, strengthens key stress areas by over 20%, and narrows fertilizer distribution error to <5% within the rated unit for more uniform, controllable spreading.

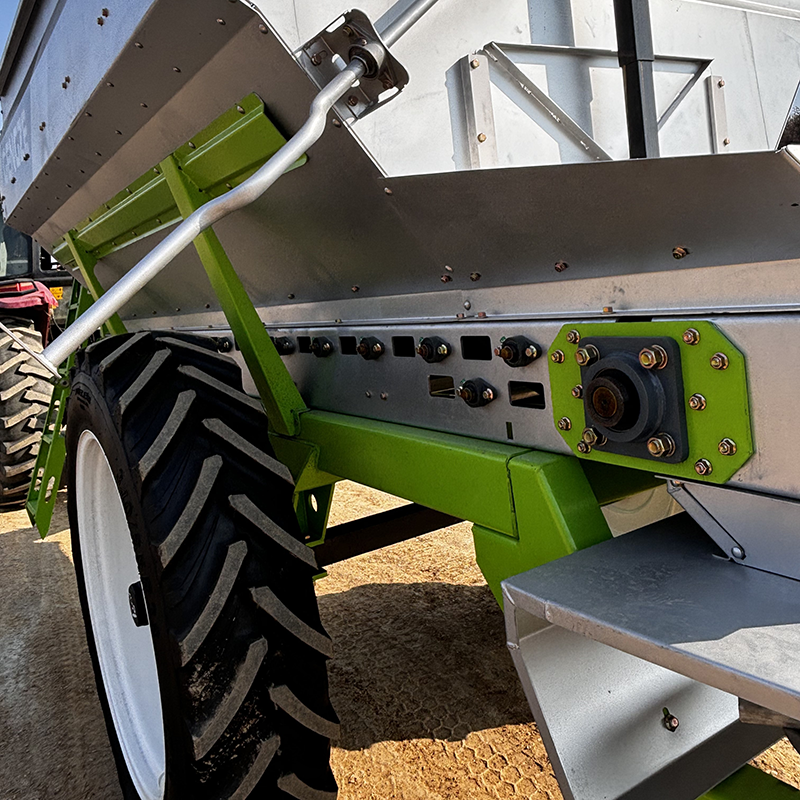

2.The compartment combines a special painting process (electrophoretic primer + anti-corrosion topcoat, chemical/UV-resistant) and structural optimization (internal ribs + gravity-balanced layout). It blocks moisture/salts to prevent rust, and aligns the center of gravity with the chassis midline when fully loaded, ensuring stable operation on undulating farmland.
3.The traction frame uses high-elastic rubber cushions at tractor connection points. These absorb jolts from rough terrain, reduce vibration transmission to the spreader’s hydraulic/throwing systems, and cut mechanical fatigue on vulnerable parts—extending equipment life by 30% vs rigid connections.
4.The chassis is reinforced via inclined rectangular tube welding (high-strength Q345B steel, 5-8mm wall; full-penetration welding). It boosts torsional resistance/load-bearing by 25%, making the traction-body connection firmer and preventing deformation even on muddy/sloped fields.
FAQ：
Q1 : Are you trading company or manufacturer?
A1: we are factory
Q2: How long is your delivery time?
A2: We have enough stock so that the delivery will be effected with in 7 days.
Q3: Why we buy from you?
A3: We have been the OME for the most famous American brand more than 20 years, every parts comply with the American quality standard.
