Description:

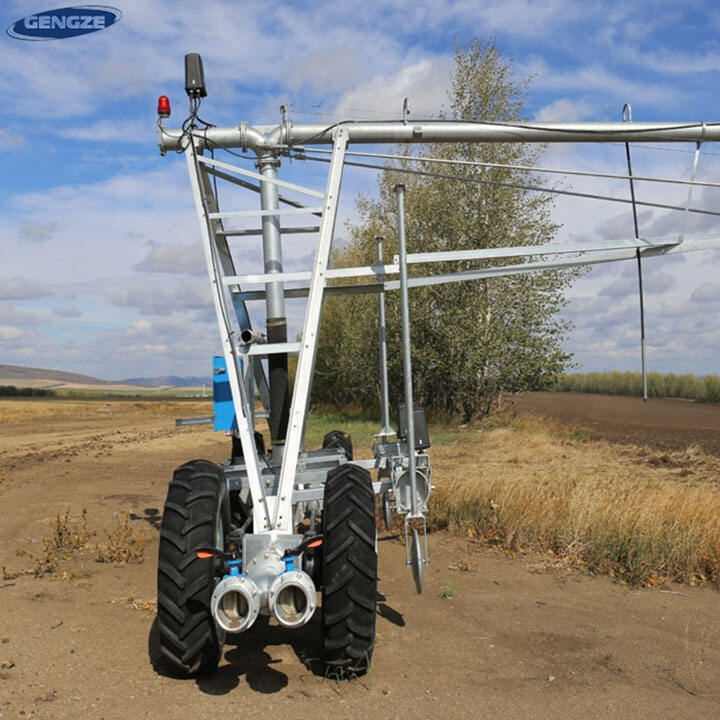

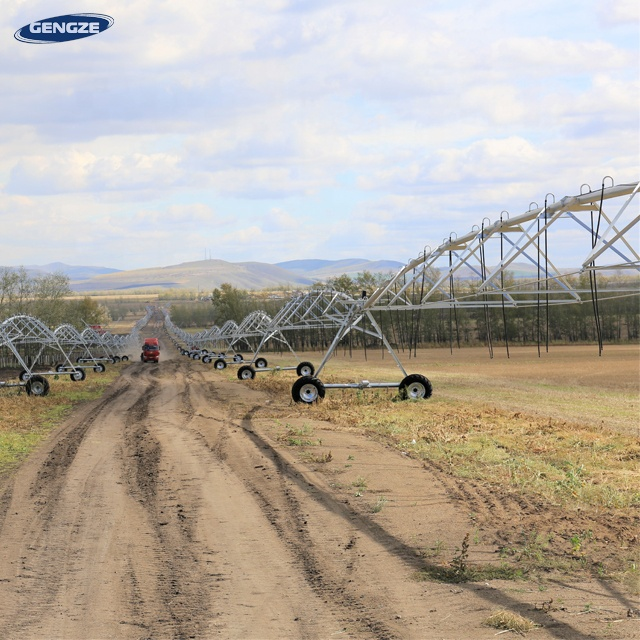

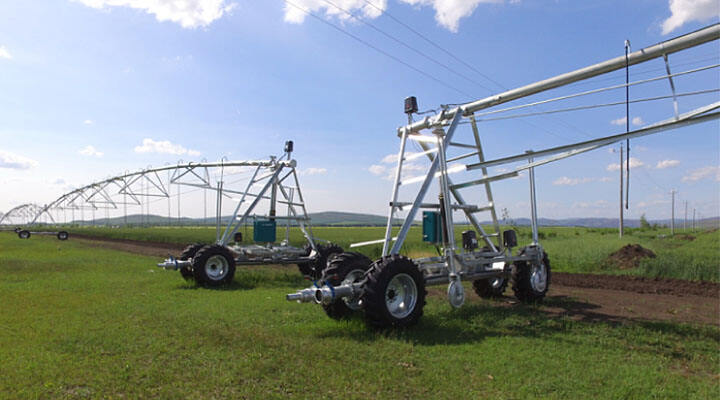

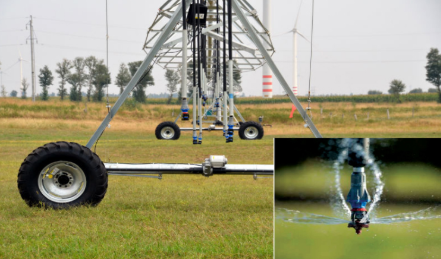

Farm sprinkler lateral move irrigation system features rapid-deployment wheels and quick-connect water couplings, enabling relocation between fields in under 2 hours. The system’s high-speed drive motors cover 1.5 acres per hour, ideal for rotational cropping or leased land. Includes a GPS auto-steer function to maintain alignment during moves. Farmers in Brazil and Australia use it to maximize land use efficiency without permanent infrastructure.
Specifications:

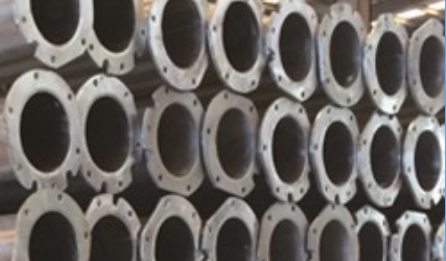

MAIN PIPE DIAMTER |
168 mm |
STANDARD SPAN |
168mm 54.5 m with 8 PIPES |
KING SIZE SPAN |
168mm 61.3 m with 9 PIPES |
PIPE LENGTH |
6.7 M 22 feet |
SPRAYER MOUNTED |
USA NELSON D 3000 R 3000 as option |
POWER SUPPLIED |
DIESEL GENERATOR OR LOCAL POWER SUPPLIED |

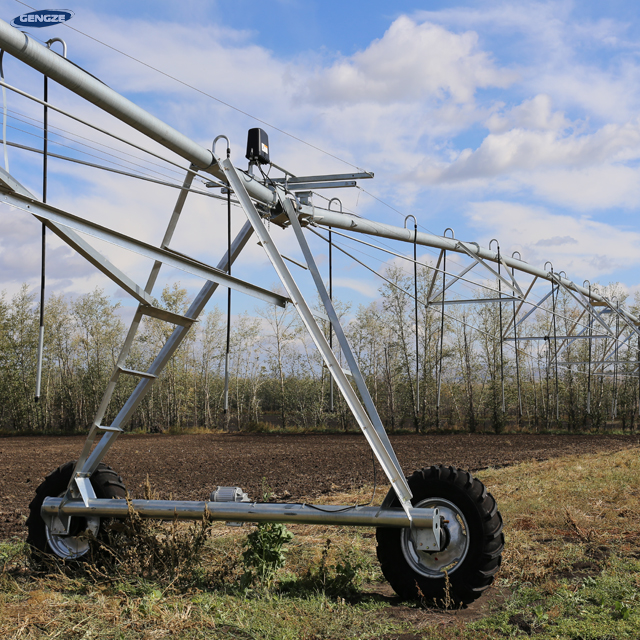

SPAN BODY TOWER STRUCTURE |
V model |
THE END |
LED WORKING LIGHT |
MOTOR SPEED REDUCER |
ELECTRIC TRANSMMISON GEAR BOX (AMERICAN BRAND) |
TIRE TYPE |
14.9X24 VACCUM TIRE |
IRRIGATION INTAKE |
1 WATER INTAKE WITH QUICK CONNECTION |
STANDARD TRUSS HEIGHT ALLOWED |
3.2m |
INTAKE PRESSURE |
0.2-0.35 mpa |
Applications:

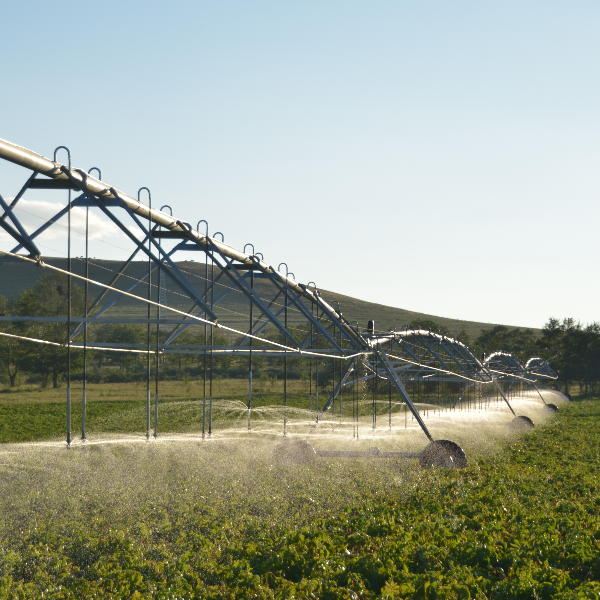

Potato Farms: Optimize tuber growth with precise moisture management across large potato fields.
Cotton Fields: Reduce water stress and improve fiber quality in arid cotton-growing regions.
Video：
Advantages：
A user-friendly control panel offers pre-programmed irrigation schedules, and optional fertigation kits enable simultaneous fertilizer application. Ideal for diversified farms seeking scalability and affordability.
FAQ：
Q:How does a linear move system compare to a center pivot system?
A:Linear move systems are better suited for rectangular fields, while center pivots are ideal for circular fields. Linear moves require a water supply that moves with the system.
Q:What are the energy requirements for a linear move system?
A:Energy requirements vary, but most systems use electric motors, hydraulic systems, or water-driven turbines. Energy consumption depends on the size and speed of the system.
