Large-Scale Trailing Hose-Reel Irrigator
1.Pressure-sensitive resistive touch screen

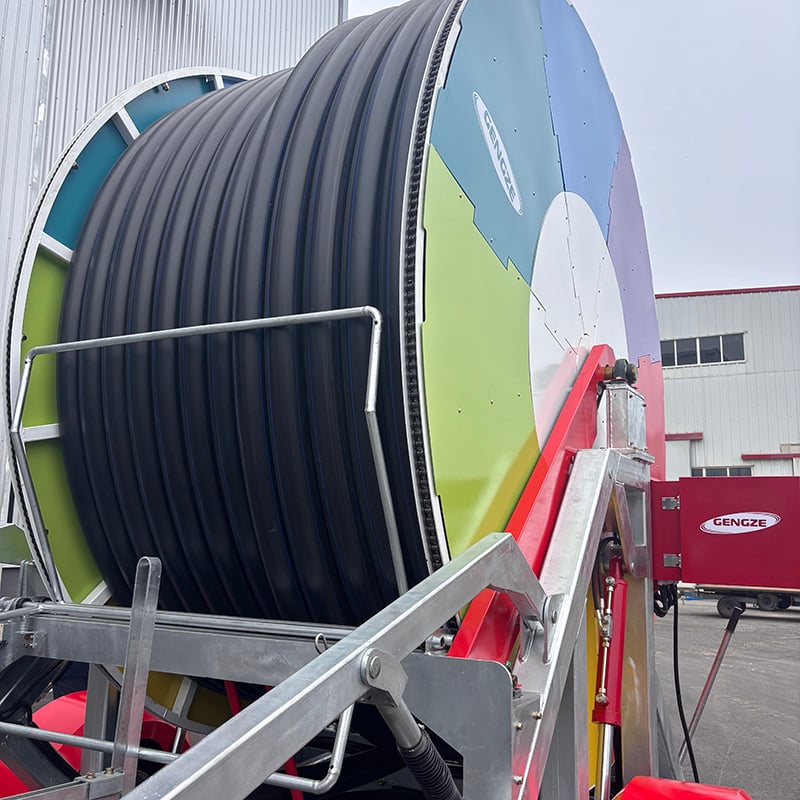

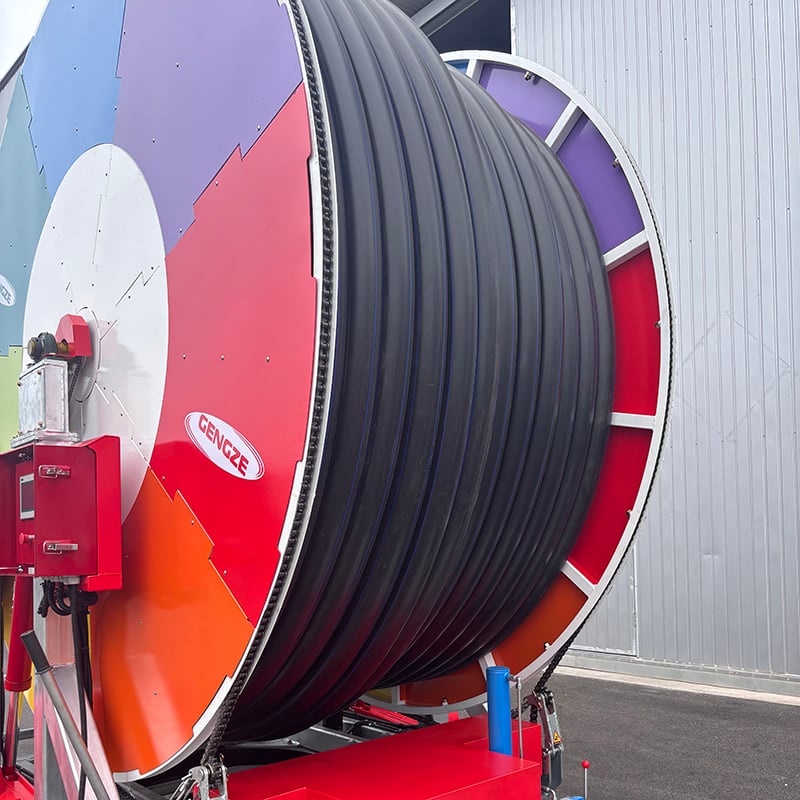

2.Up to 650 m long hose + 360° full-range rotation
3.Modular load-bearing chassis design
4.One-touch smart standalone hydraulic power unit
- Overview
- Related Products
Developed in-house by Dalian Gengze Agricultural Equipment Manufacturing Co., Ltd., the Large-Scale Trailing Hose-Reel Irrigator is a high-performance trailed irrigation unit. Powered by an electric motor, it integrates water delivery, sprinkling and automatic hose rewinding. Boasting a large-capacity reel, extra-long PE delivery hose and intelligent control system, this machine is built for large-scale irrigation across big farmlands, pastures, orchards and challenging terrain. It represents ideal irrigation hardware for modern high-efficiency agriculture.

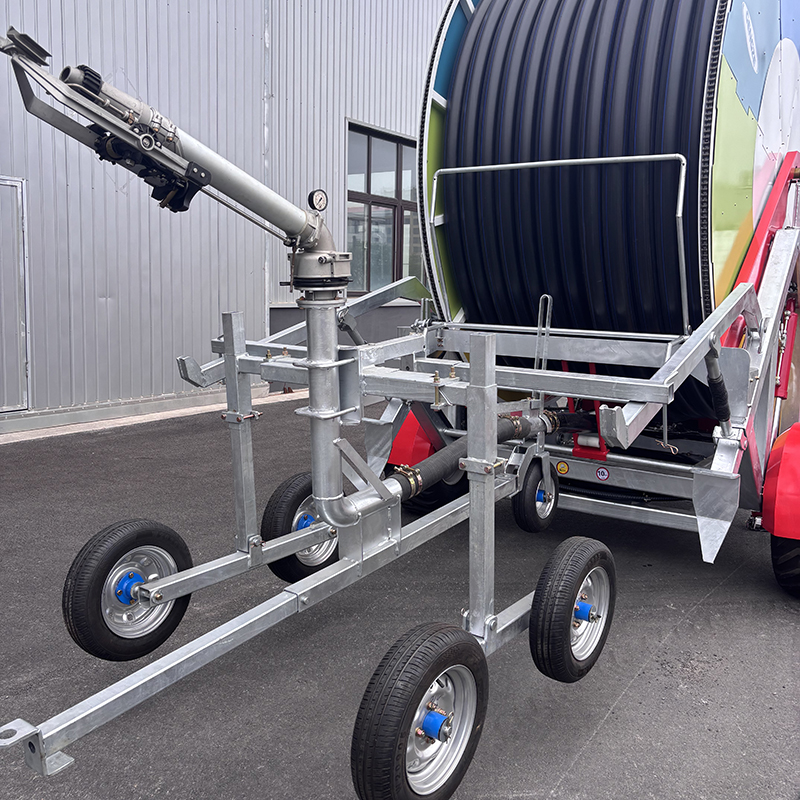

Driven by its electric motor, the reel rotates to automatically deploy and retract the PE hose. Pressurized water flows through the pipeline to the sprinkler nozzle, which breaks water into fine droplets for even coverage across fields. A sprinkler cart travels as the PE hose pulls it, delivering consistent irrigation over large areas. Compatible with wheat, corn, vegetables, fruit trees and more, the unit operates reliably on slopes, sandy ground and irregular-shaped plots.
Specifications:
| Model | Jp900 |
| PE Hose Diameter(mm) | 75,90,100,110 |
| PE Hose Length(m) | 300,350,400,450,500 |
| Water Flow (t/h) | 14-78 |
| Inlet Pressure（Mpa) | 0.6-1.0 |
| L*W*H(mm) | 4500*2235*3500 |
| Weight (kg) | 2400±30 |
Four Core Features

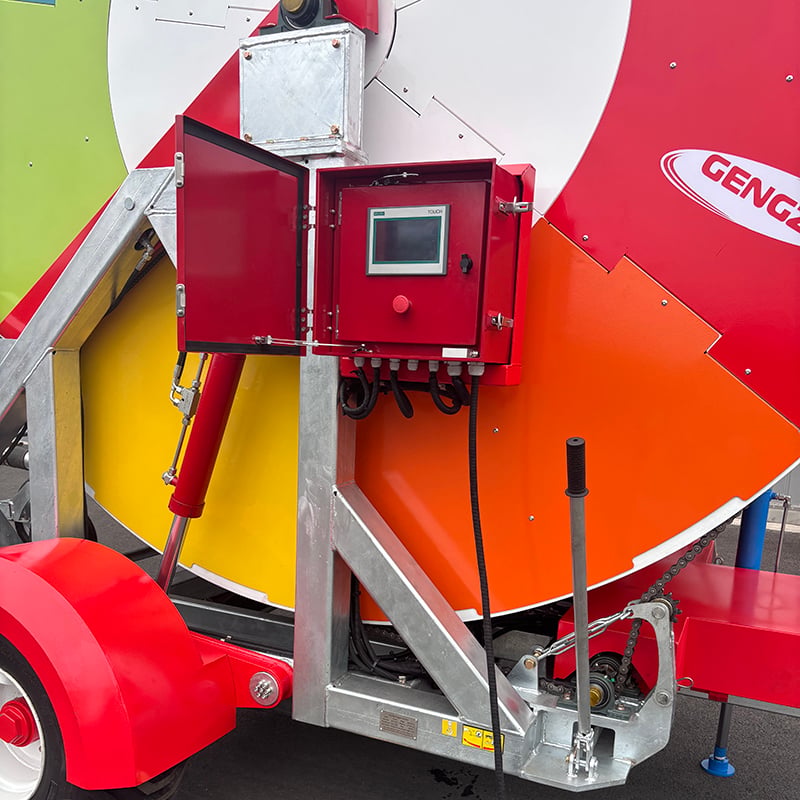

Pressure-Sensitive Resistive Touch Screen: Pressure-activated industrial touch interface pre-loaded with multiple irrigation presets. Adjust operational parameters with one tap; intuitive for quick operator onboarding.
Up to 650 m Long Hose & 360° Full-Range Rotation: Combined with infinitely adjustable rotating sprinklers, the extended hose delivers broad coverage, suited for thousand-mu-scale complex field layouts.
Modular Load-Bearing Chassis: Dual-spool wheelbase paired with heavy-duty anti-slip large tyres. Even weight distribution and strong ground grip drastically reduce roll-over hazards.
One-Touch Smart Standalone Hydraulic Power Unit: Independent hydraulic drive with height-adjustable support wheels. Auto-levels the machine on sloped ground, reinforces frame rigidity and guarantees safe, stable field performance.

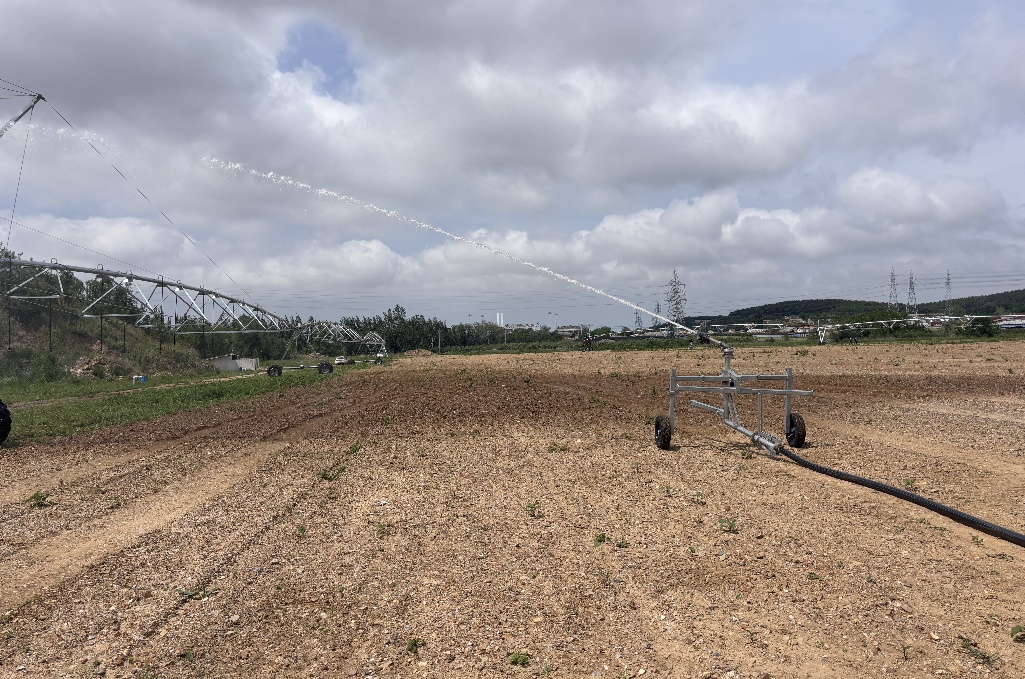

Applications:
This trailing hose-reel irrigator fits a wide range of irrigation use-cases including grain fields, pastures, orchards, cash-crop plantations, vegetable greenhouses and large-scale landscaping projects.
Field Grain Crops: Wheat, corn, rice, soybeans, sorghum, potatoes and other staple grains
Pastures & Livestock Operations: Alfalfa, ryegrass and other forage grasses
Fruit Orchards: Apple, orange, grape, banana, citrus and other fruit-bearing trees
Cash Crops: Sugarcane, tea, cotton, tobacco, medicinal & herbal plants
Vegetables & Greenhouses: Leafy greens, solanaceous vegetables, seedling nurseries and protected-culture crops
Landscaping Works: Rural landscape schemes and large-scale green site projects
Engineered for excellent terrain tolerance, the machine runs reliably on flat ground, slopes, odd-shaped parcels and remote scattered farm plots. It solves common irrigation pain points on difficult terrain, boosts irrigation throughput and drastically cuts manual labour input.
Constructed from corrosion-resistant, weather-proof materials, the JP900 stands up to long-term outdoor deployment. It performs equally well in arid, semi-arid, humid and high-rainfall zones. Its water-and energy-saving design elevates water-use efficiency and lowers overall production expenses. It is a premium irrigation solution for large planting bases, family farms, agricultural co-operatives and agribusinesses globally.
Video：
The JP900 excels under low-pressure supply conditions, smart operability, maximum coverage, structural safety and consistent field performance. Main benefits are outlined below:
1.Solid Performance at Low Inlet Pressure: The motor-driven hose retraction system fine-takes PE hose rewind speed under low-water-pressure circumstances, maintaining reliable sprinkler output.
2.Smart, One-Tap Operation: Industrial-grade pressure-sensitive touch screen with built-in irrigation programmes. Tweak all key parameters in one touch; operators become competent after minimal training.
3.Extended Reach & Full-Area Sprinkling: Max 650 m hose plus 360° infinite-rotation adjustable sprinklers cater for thousand-mu-size complex farmland and deliver uniform large-area irrigation.
4.Robust Build for Safety: Modular load-bearing chassis, dual-spool wheelbase, heavy-duty anti-slip tyres and low-centre-of-gravity frame distribute weight evenly. Superior ground grip minimises roll-over risks.
5.Hydraulic Auto-Levelling for Stable Work: Self-contained hydraulic system with adjustable support wheels automatically levels the unit on inclines. Reinforced frame resists wind-induced shifting or drifting for secure field operation.
6.Energy-Saving, Cost-Effective & Yield-Boosting: Electric-powered for clean, low-cost running. Slashes labour requirements while lifting irrigation efficiency, helping improve both crop yield and produce quality.
FAQ：
Q1: Does this JP900 hose reel sprinkler need external power supply?
A1: No. The JP900 is driven by water turbine, which gains power from water flow. It needs no electric power or fuel, and is perfectly suitable for remote farmlands and various field conditions.
Q2: What is the service life of this water turbine hose reel irrigation machine?
A2: With correct operation and regular maintenance, its service life can reach 8 to 10 years. The hose reel, sprinkler heads and water turbine adopt high wear-resistant and anti-corrosion materials for long-term outdoor use.
Q3: How does this irrigation system work?
A3: It is driven by water turbine. The flowing water pushes the turbine to drive hose retraction and sprinkling work, featuring energy saving and stable operation.
Q4: What are the advantages of water turbine drive compared with electric drive?
A4: Water turbine driven hose reel sprinkler needs no external power supply, saves electricity cost. It has simple structure, low failure rate and easy maintenance, and works more stably in outdoor farmland environments.
