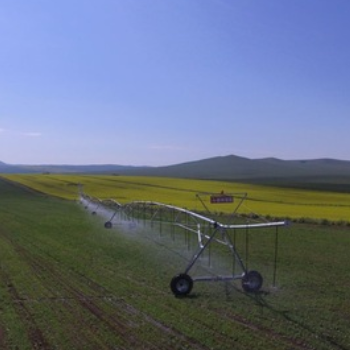

Pivot center irrigation machine
Gengze designs the center pivot irrigation system according to your specific climatic, topographical and cropping conditions that maximizes time, labor and water savings for your individual needs.
- Overview
- Related Products
Description:

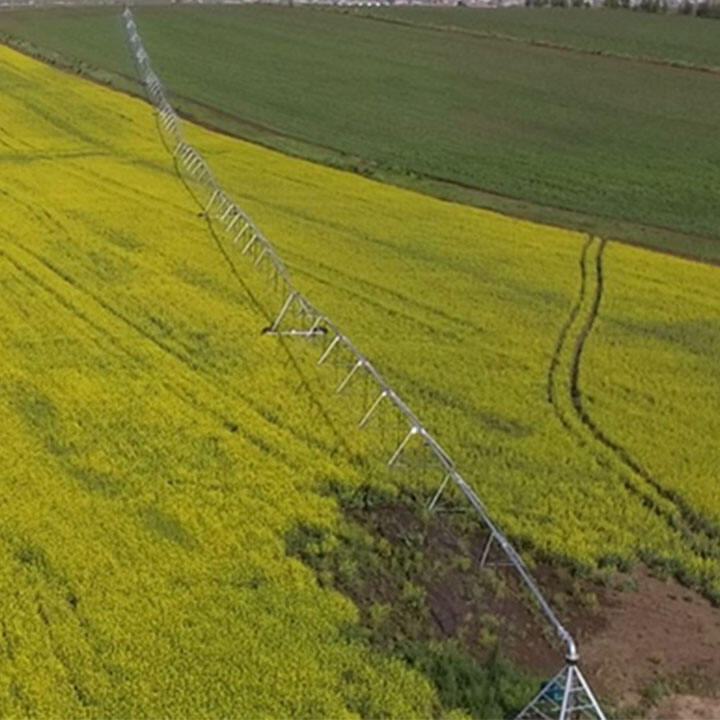

Pivots are irrigation systems consisting of one or more spans which rotate around a fixed point anchored to the ground. The spans turn repeatedly around a fixed central point. They are simple to use and require little intervention. These machines are both reliable and excellent value for money.
Specifications:
| Main pipe diameter | 6-5/8''(168mm*3.2mm,high frequency welded steel pipe) |
| Standard span | 6-5/8''(168mm)*54.5m(8 pipes) |
| King-sized span | 6-5/8''(168mm)*61.3(9 pipes) |
| Overhang | 5-9/16''(141mm) |
| King-sized overhang | 4''(101mm) |
| Pipe length | 22feet/one (6.7m) |
| Main pipe Flange thickness | 10mm, Flange and pipe adopt double welded technology |
| Working voltage | 460--380V/50--60HZ |
| Power supply mode | Diesel generator and the local power company provide |
| Tire type | 14.9-24 irrigation tire |

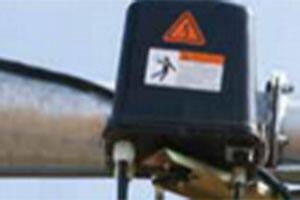

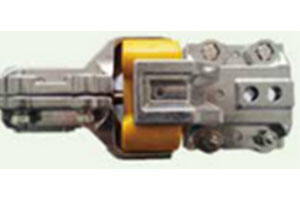

| Motor speed reducer | Electric transmission gearbox(American) |
| Motor power | 0.75~1.5 horse power |
| Motor speed reducer | output speed of electric transmission gearbox:28~86RPM |

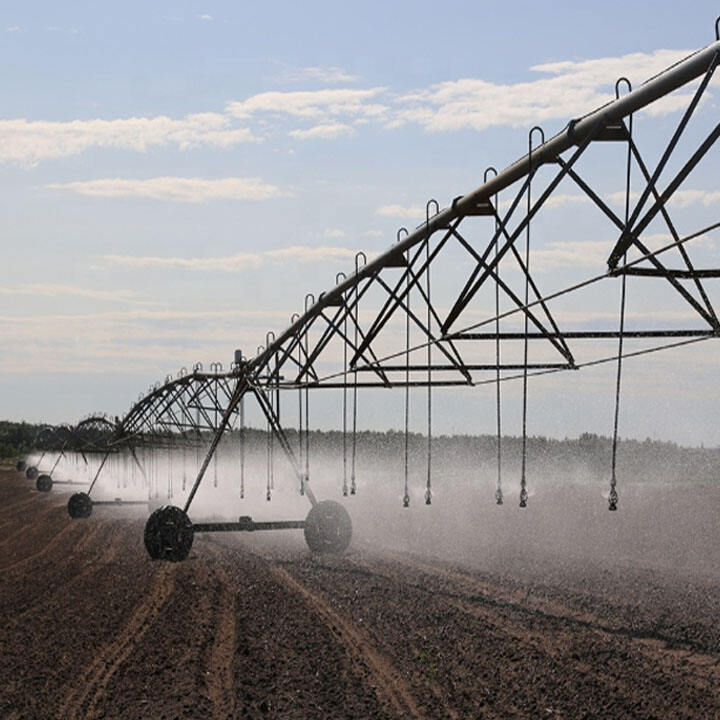

| Span body tower structure | Adopt "V" model tower |

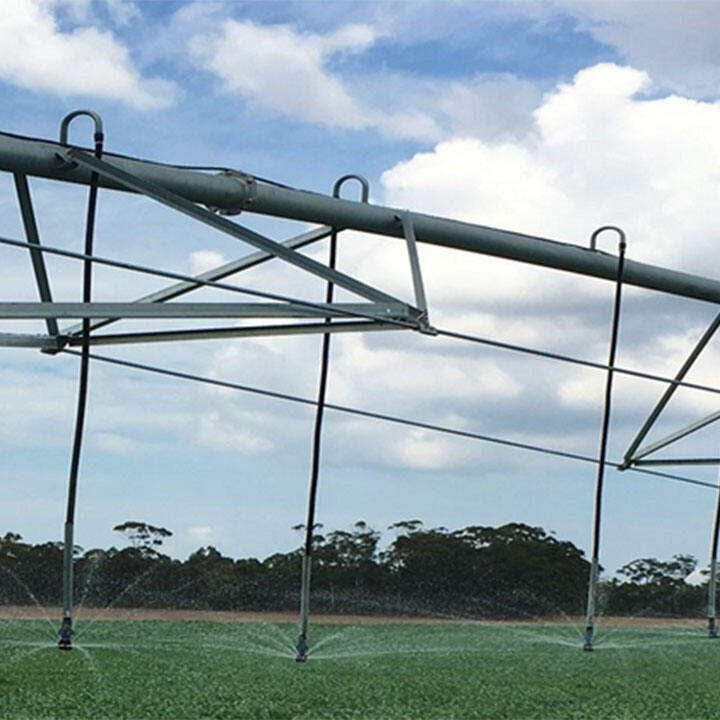

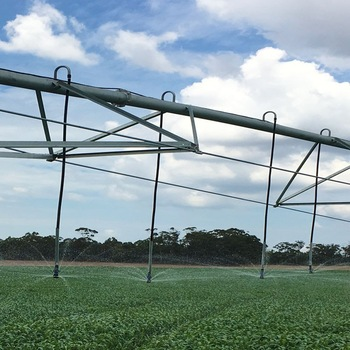

| Sprayer | Standard configuration's N D3000; selective configuration:USA N R3000 |
| All the equipment with | The pressure of sprinkler pressure governor:15PSI (20PSI)(10PSI) |
| Main cable | 4*4mm²+6*1.0mm²(resisting ultra violet and aging) |
| The end has | LED working status instruction light |
Advantages：
1.Center Pivot Irrigation System is a highly efficient system which helps conserve water.
2.Typically uses less water compared to many surface irrigation and furrow irrigation techniques, which reduces the expenditure of and conserves water.
3.Help to reduce labor costs compared to some ground irrigation techniques, which are often more labor-intensive.
video：
Applications:
In regions with limited rainfall, such as Sub-Saharan Africa, the Middle East, and parts of Australia, center pivots are a lifeline for agriculture. Their water-efficient design and compatibility with solar power make them ideal for off-grid or remote locations. By optimizing water use, these systems enable farmers to grow crops in otherwise inhospitable environments.
FAQ:
Q: What's the MOQ of your products?
A: Small order are welcomed, MOQ 1PCS.
Q: Can I visit your factory?
A: Sure, you are sincerely welcomed to visit our factory at any time.
Q:What about the warranty?
A:12 months warranty from the time of the goods arrived at destination.
