M505 Rotary Bale Shredder for Dry Straw
High-Efficiency Dry Straw Bale Processing Machine for Farms
Heavy-Duty Shredder for Round & Square Dry Straw Bales
Cost-Effective Agricultural Solution for Straw Crushing & Recycling
- Overview
- Related Products
Description:
The M505 Rotary Bale Shredder is a cost‑effective and heavy‑duty agricultural machine designed for high‑efficiency processing of dry straw round bales. It also supports square bale processing with its expandable structure, making it a versatile solution for daily farm operations. Built with a simple and ultra‑sturdy frame, it delivers consistent and reliable performance even in harsh agricultural environments, serving as an essential tool for straw shredding and processing of all scales.
Driven by a direct PTO‑powered rotor, the M505 provides strong shredding force. Its tub rotation speed is controlled by a hydraulic motor, enabling smooth adjustment of material output to match on‑site working conditions. Optimized for dry hay, it ensures outstanding shredding efficiency. A key extendable design increases the original 1500 mm tub length by an extra 300 mm (total 1800 mm), allowing easy processing of 1500 mm round straw bales and 1200 mm square straw bales. It is equipped with a 13–120 mm adjustable screen for precise control of crushed straw particle size.
With overall dimensions of 2324 mm × 1963 mm × 2400 mm and a weight of 923 kg, the M505 balances compact size and stable operation. The 1800 mm tub diameter and 990 mm rotor diameter ensure powerful processing capacity. It combines superior cost‑efficiency, durable construction for long‑term heavy use, and user‑friendly maintenance to minimize downtime and running costs for farmers and agricultural contractors.
Ideal for straw incorporation, feed preparation, and straw recycling, the M505 is the top choice for efficient dry straw bale processing. Standard production lead time is 15–20 working days after order confirmation. For international orders, sea freight is the standard and cost‑effective shipping method, ensuring safe and timely delivery of this heavy‑duty machine to customers worldwide.
Specifications:
| Model | M505 |
| Length × width × height | 2324mm×1963mm×2400mm |
| weight | 923kg |
| Tub diameter | 1800mm |
| Tub length | 1500mm (Can extend 300m) |
| Rotor diameter | 990mm |
| Screen | 13-120mm |

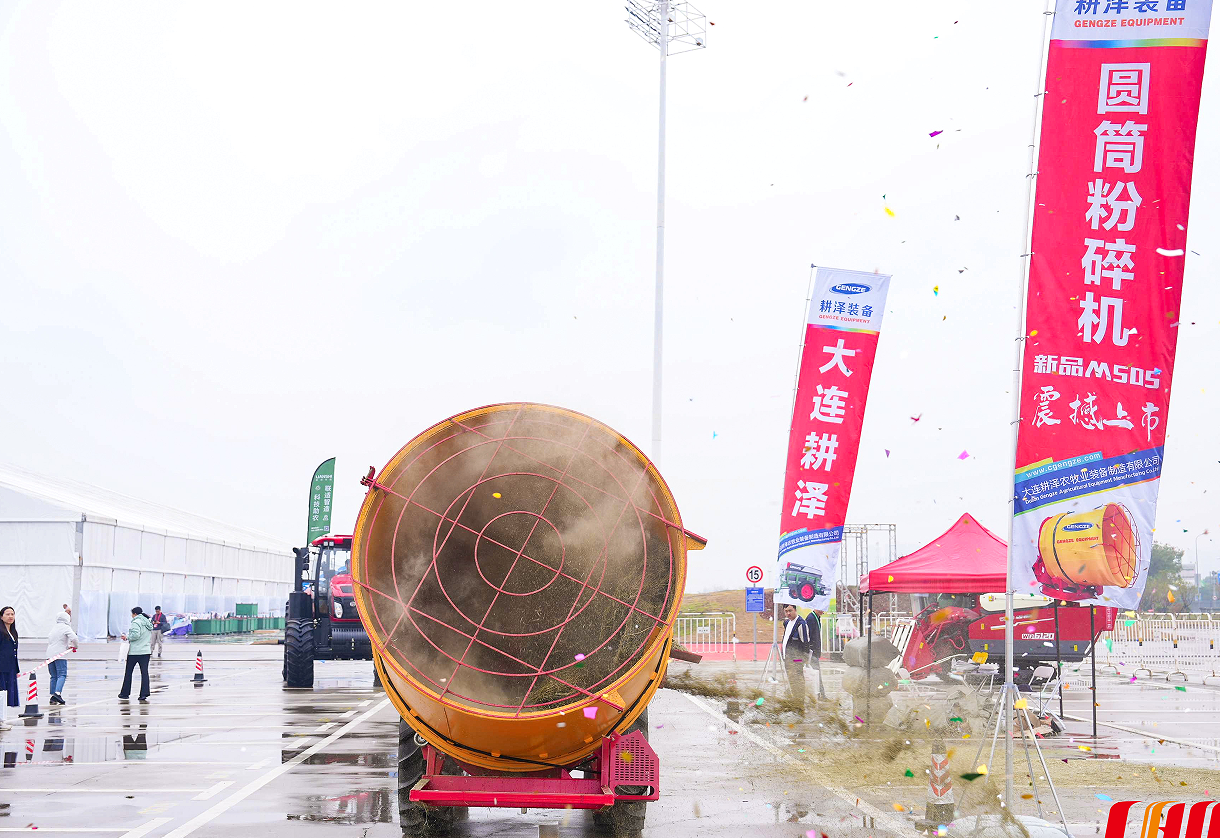

Applications:
The M505 Rotary Bale Shredder is a highly adaptable agricultural machine dedicated to dry straw bale processing. It is widely used in large‑, medium‑, and small‑scale farms, livestock breeding bases, and agricultural cooperatives. Specially designed to shred 1500 mm dry straw round bales and 1200 mm dry straw square bales, it serves as core equipment for straw incorporation: by shredding straw into adjustable particle sizes, it improves soil fertility and supports eco‑friendly farmland management.
It is also an excellent choice for livestock roughage production, processing dry hay into uniform fragments to meet the feeding needs of cattle, sheep, horses, and other herbivores, reducing feed processing costs for breeding operations. In addition, the machine is widely applied in agricultural straw recycling, including organic fertilizer production, breeding bedding material, and biomass energy raw material processing, achieving high‑value utilization of straw waste and reducing environmental pollution from open burning. With stable performance and flexible operation, it is suitable for on‑site outdoor straw processing in various farmland conditions, supporting efficient production and improving overall straw resource utilization.
Video：
Advantages：
1.Cost‑Effective & High Efficiency
Delivers exceptional dry straw bale shredding performance at a competitive price. Adjustable output and precise particle‑size control greatly improve processing efficiency while maximizing value for agricultural operators.
2.Heavy‑Duty & Durable Build
Constructed with high‑quality materials and a simplified robust frame to resist wear and tear during long‑term heavy use in harsh farming environments. Ensures stable, reliable operation with low failure rates.
3.Flexible & Adaptive Design
Features an extendable tub (1500 mm to 1800 mm) compatible with both round and square dry straw bales. Hydraulic tub speed control and 13–120 mm adjustable screen meet diverse on‑site processing requirements.
4.Easy Operation & Maintenance
User‑friendly structure simplifies daily operation and maintenance, reducing downtime and operational costs. Direct PTO drive ensures simple power connection and easy use even for non‑professional operators.
5.Well‑Balanced Structure
Compact dimensions and stable 923 kg weight provide a good balance between space savings and steady performance, suitable for on‑site processing in farms and breeding facilities.
6.Reliable Lead Time & Logistics
Standard production lead time of 15–20 working days after order confirmation. Sea freight is the standard international shipping solution, offering safe, economical transport for heavy agricultural machinery.
FAQ：
Q1: What types of bales is the M505 Rotary Bale Shredder suitable for?
A1: It is specially designed for dry straw bales, capable of processing 1500 mm dry straw round bales and 1200 mm dry straw square bales with its extendable tub. This machine is for dry hay only.
Q2: Can output and particle size be adjusted?
A2: Yes. Tub rotation speed is controlled by a hydraulic motor for flexible output adjustment. The 13–120 mm adjustable screen enables precise control of shredded straw particle size to meet various processing needs.
Q3: What is the production lead time?
A3: Standard production lead time is 15–20 working days after order confirmation to support your production schedule.
Q4: What shipping methods are available for international orders?
A4: For international orders, sea shipping is the standard and most cost‑effective method, specially optimized for safe and economical transport of heavy agricultural machinery such as the M505.
