M505 Rotary Dry Straw Bale Shredder for Farm Use
Multifunctional PTO Driven Bale Shredder for Round & Square Dry Straw | Adjustable Particle Size Straw Recycling Equipment
- Overview
- Related Products
Description:

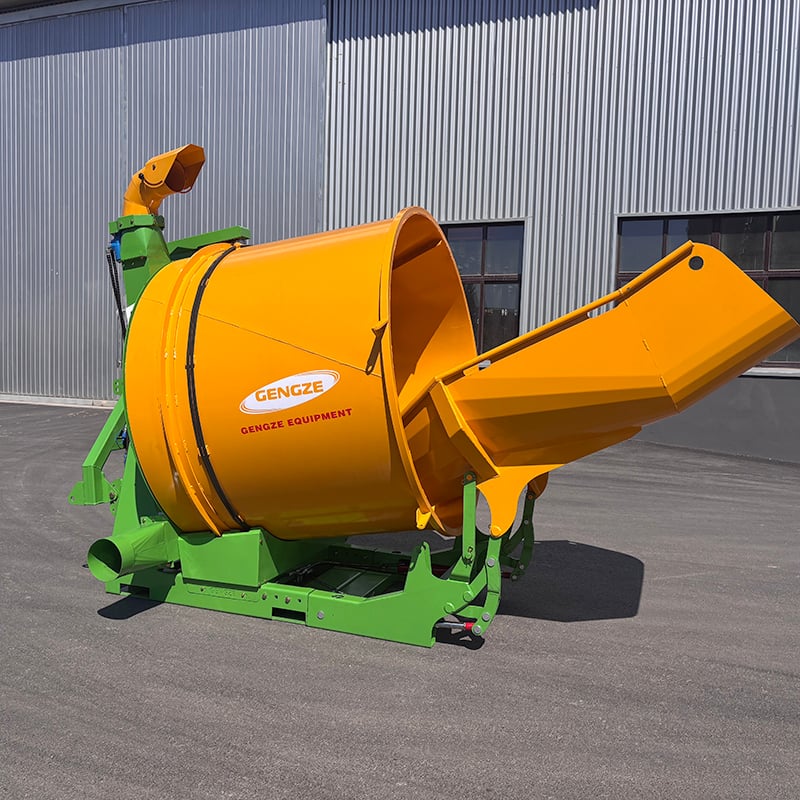

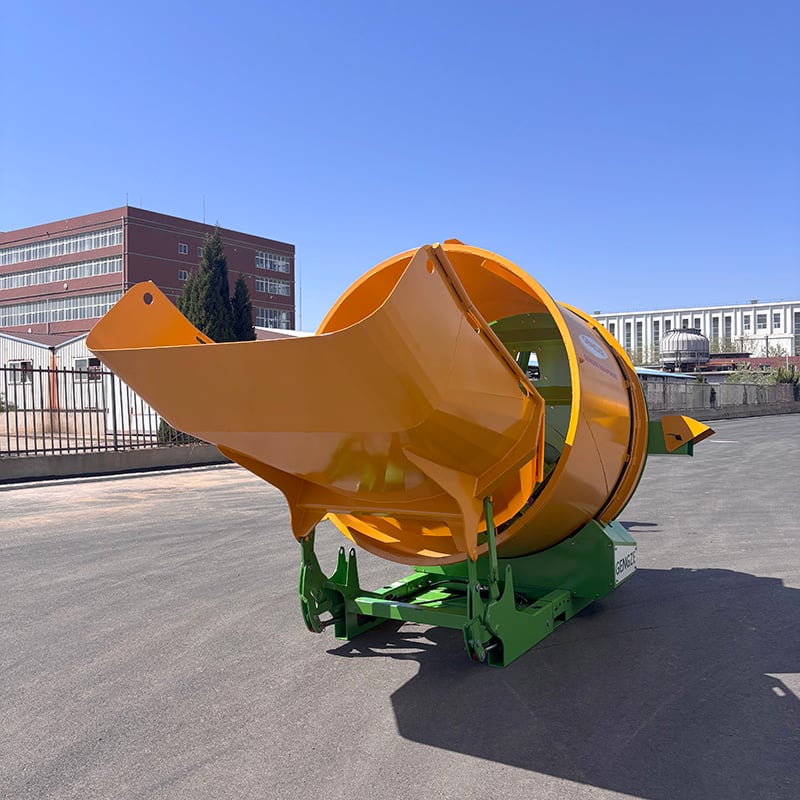

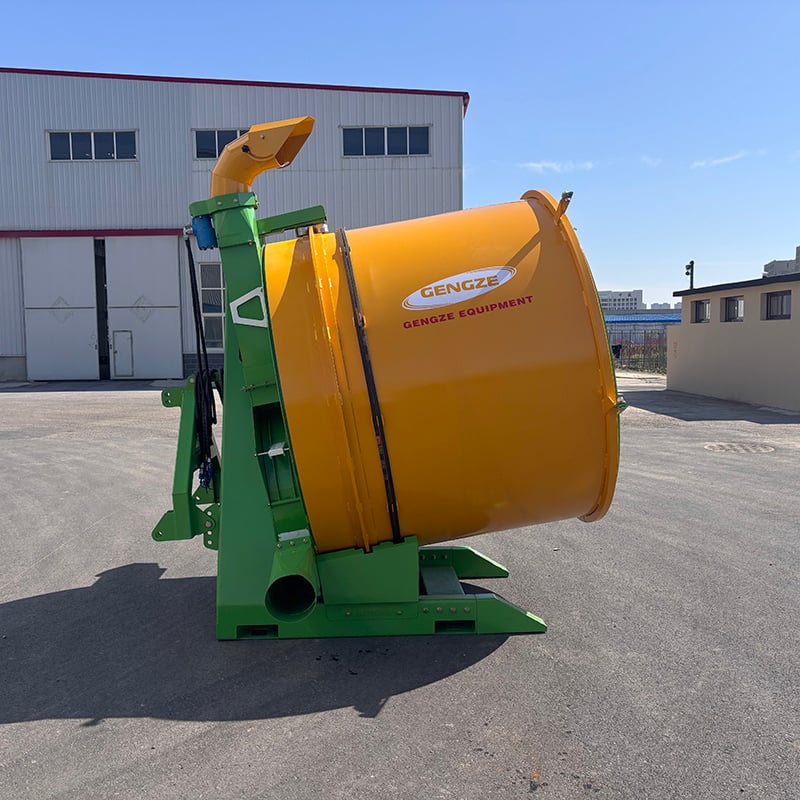

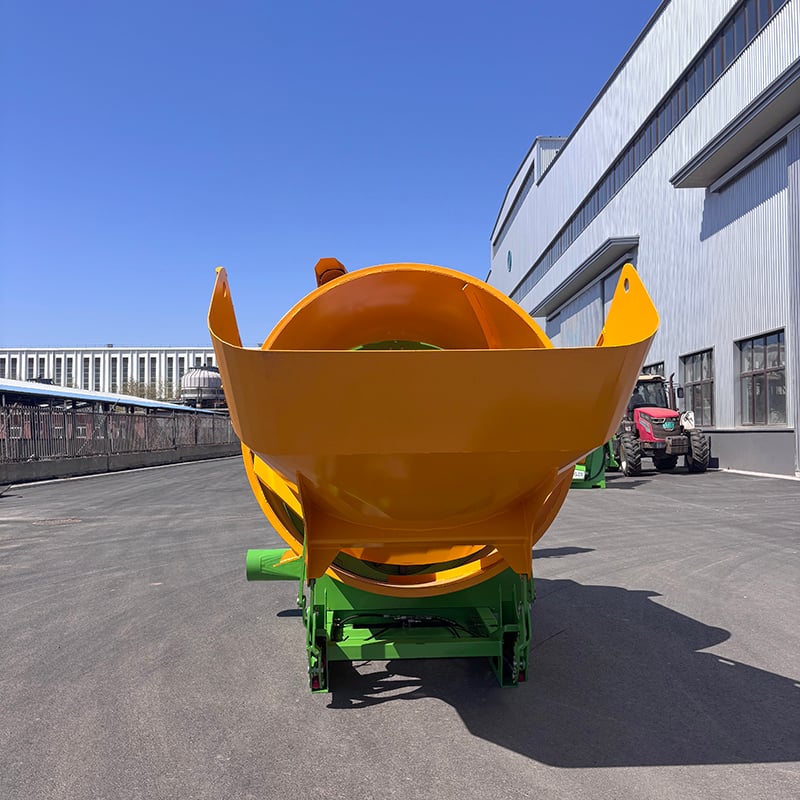

The M505 rotary straw bale shredder is a robust, cost-saving agricultural processing device tailored to handle all kinds of dry straw bales on farms. Thanks to its expandable trough design, the machine can tackle both round and square dry straw bales, making it an all-around workhorse for daily farming tasks. The whole machine adopts an integrated reinforced frame with simple structural layout, which maintains steady running performance even under rough field working conditions, and fits small, medium and large farms alike as indispensable straw treatment equipment.
Power is delivered directly via tractor PTO to the built-in rotor, generating powerful cutting and crushing force for dry straw. The rotating speed of the material trough is regulated by an independent hydraulic motor, allowing operators to freely adjust material discharging volume according to field processing demands. The core extendable trough structure can stretch from the original 1500 mm to 1800 mm in full length, which perfectly accommodates 1500 mm diameter round straw bales and 1200 mm square straw bales. Equipped with a replaceable sieve ranging from 13 mm to 120 mm, farmers can accurately customize the fineness of crushed straw fragments to match different application scenarios.
This shredder measures 2324 mm × 1963 mm × 2400 mm with a total weight of 923 kg, combining compact footprint and stable running weight. The 1800 mm trough diameter and 990 mm large rotor diameter guarantee outstanding single-batch processing capacity. Besides low manufacturing and purchase costs, the equipment features wear-resistant components to extend service life; its convenient disassembly design cuts maintenance intervals and lowers long-term operation expenditure for farmers and agricultural contractors.
The machine serves multiple agricultural production links including straw returning to field, livestock forage preparation and crop straw resource recovery. We maintain a fixed production cycle of 15–20 working days once deposits and orders are confirmed. For global overseas buyers, sea transportation is recommended as the most affordable delivery option, which can safely ship this heavy farm machinery to all major ports worldwide.
Specifications:
| Model | M505 |
| Length × width × height | 2324mm×1963mm×2400mm |
| weight | 923kg |
| Tub diameter | 1800mm |
| Tub length | 1500mm (Can extend 300m) |
| Rotor diameter | 990mm |
| Screen | 13-120mm |

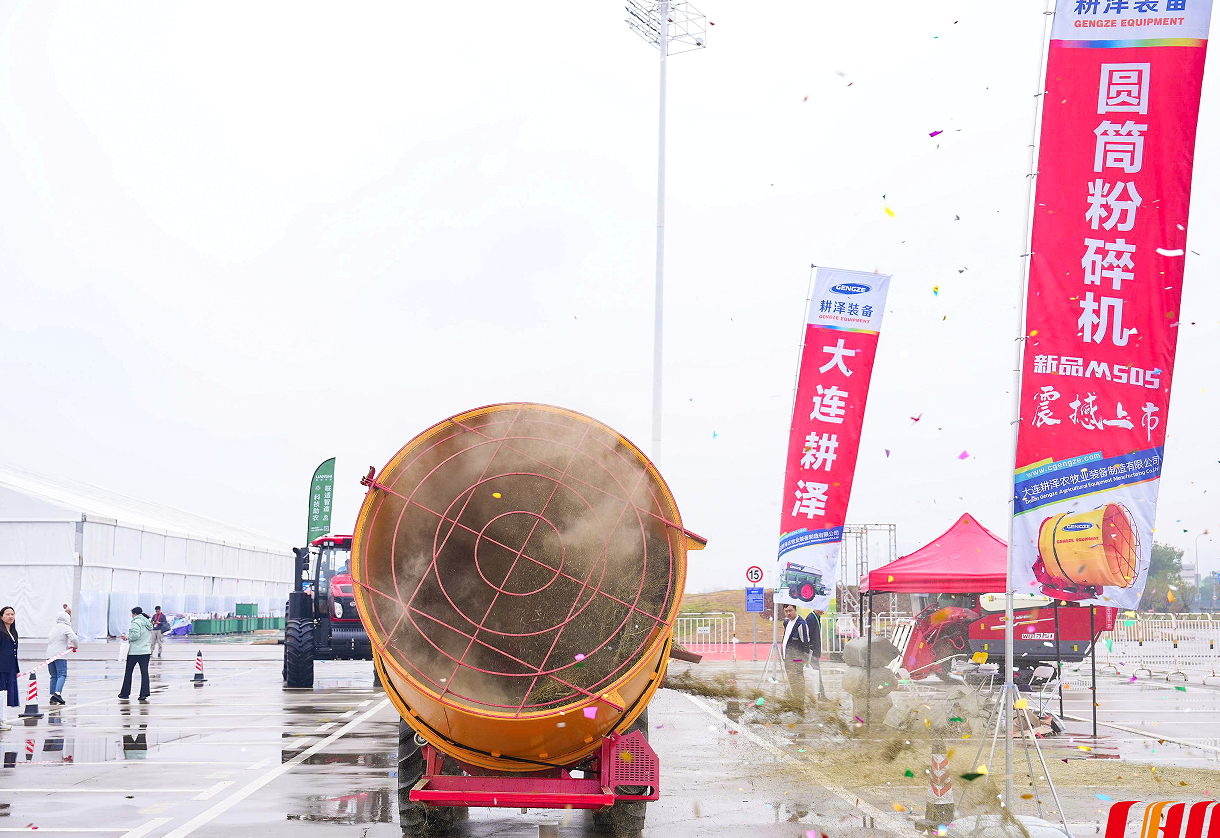

Applications:
The M505 rotary straw bale shredder is a robust, cost-saving agricultural processing device tailored to handle all kinds of dry straw bales on farms. Thanks to its expandable trough design, the machine can tackle both round and square dry straw bales, making it an all-around workhorse for daily farming tasks. The whole machine adopts an integrated reinforced frame with simple structural layout, which maintains steady running performance even under rough field working conditions, and fits small, medium and large farms alike as indispensable straw treatment equipment.
Power is delivered directly via tractor PTO to the built-in rotor, generating powerful cutting and crushing force for dry straw. The rotating speed of the material trough is regulated by an independent hydraulic motor, allowing operators to freely adjust material discharging volume according to field processing demands. The core extendable trough structure can stretch from the original 1500 mm to 1800 mm in full length, which perfectly accommodates 1500 mm diameter round straw bales and 1200 mm square straw bales. Equipped with a replaceable sieve ranging from 13 mm to 120 mm, farmers can accurately customize the fineness of crushed straw fragments to match different application scenarios.
This shredder measures 2324 mm × 1963 mm × 2400 mm with a total weight of 923 kg, combining compact footprint and stable running weight. The 1800 mm trough diameter and 990 mm large rotor diameter guarantee outstanding single-batch processing capacity. Besides low manufacturing and purchase costs, the equipment features wear-resistant components to extend service life; its convenient disassembly design cuts maintenance intervals and lowers long-term operation expenditure for farmers and agricultural contractors.
The machine serves multiple agricultural production links including straw returning to field, livestock forage preparation and crop straw resource recovery. We maintain a fixed production cycle of 15–20 working days once deposits and orders are confirmed. For global overseas buyers, sea transportation is recommended as the most affordable delivery option, which can safely ship this heavy farm machinery to all major ports worldwide.
Video：
Advantages：
High Cost Performance & Flexible Processing Efficiency
It delivers excellent dry straw crushing capacity with competitive pricing. Hydraulic discharge speed adjustment and multi-specification sieves optimize overall processing efficiency and create greater economic benefits for agricultural practitioners.
Heavy-Duty Wear-Resistant Construction
All key parts are manufactured from premium wear-resistant materials, paired with simplified thickened frame structure. The equipment resists abrasion under long-duration heavy-load field work, featuring stable operation and extremely low failure probability.
Expandable Multi-Scenario Matching Structure
The stretchable trough adapts to both round and square dry straw bales. Matched with hydraulic speed control system and adjustable sieves of different apertures, it fully satisfies diversified straw processing requirements in different agricultural industries.
Simple Operation & Low Maintenance Threshold
The overall layout is optimized for easy daily operation and routine upkeep, effectively reducing machine downtime. Direct tractor PTO connection simplifies power access, and even operators without professional mechanical experience can master the machine quickly.
Optimized Balance Design for Field Mobility
Compact overall size plus 923 kg stable dead weight balance space occupation and running stability, suitable for mobile straw treatment in farm plots and breeding yards.
Stable Production Cycle & Economical Global Logistics
Clear standardized production schedule of 15–20 working days after order confirmation to match customers’ production planning. Sea freight is our primary overseas shipping plan, providing secure and low-cost transport for heavy agricultural machinery like the M505 shredder.
FAQ：
Q1: What types of straw bales can the M505 shredder process?
A1: This model is exclusively designed for dry straw bales. With the extended trough, it can process 1500 mm round dry straw bales and 1200 mm square dry straw bales. Wet straw is not applicable for this equipment.
Q2: Can I adjust the straw output quantity and fragment size?
A2: Yes. The trough’s rotation speed is controlled via hydraulic motor to adjust discharging capacity freely. The interchangeable sieve with 13–120 mm hole sizes lets you precisely control how fine the final straw fragments are for different usage needs.
Q3: How long is the production period after placing an order?
A3: Normally, we finish production within 15 to 20 working days once the official order is signed and confirmed, to coordinate with your farm’s working timetable.
Q4: Which shipping method do you suggest for international clients?
A4: For cross-border bulk orders, ocean freight is the standard and most cost-effective transport solution, specially customized for safe and low-cost delivery of heavy agricultural machinery such as the M505 straw bale shredder.
