Mobile Towable Center Pivot Irrigation Equipment
Flexible Towable Design | Labor-saving & High-efficiency Agricultural Irrigation Machine
360° Full Coverage | Water-saving Mobile Center Pivot Irrigator for All Crops
Hot-dip Galvanized Structure | Portable Center Pivot Irrigation System with Long Service Life
- Overview
- Related Products
Description:
Developed and manufactured by Dalian Gengze Agricultural Equipment Manufacturing Co., Ltd., the towable center pivot irrigation system (Model DYP) is a core intelligent agricultural irrigation equipment integrating mobility, automation and high efficiency. Drawing on decades of professional experience in irrigation equipment R&D and production, this system breaks the usage limitation of traditional fixed center pivot irrigators. Featuring a towable design, it can be flexibly transferred among different farm plots, perfectly catering to the diverse irrigation demands of modern large-scale farms, agricultural cooperatives and planting bases. As a reliable choice for arid, semi-arid regions and conventional farmland, it realizes water conservation, labor reduction, yield improvement and stable operation throughout the whole process.
Specifications:
The complete set of equipment consists of central support, galvanized steel truss, walking drive system, electrical control system, professional sprinkler assembly and mobile traction structure. Adopting premium carbon steel pipes with hot-dip galvanized treatment complying with marine standards, the main pipe is thickened for enhanced compression resistance and anti-corrosion performance; the optional rubber liner further protects the pipeline against harsh water quality and prolongs the service life. Equipped with internationally renowned Nelson D3000 standard sprinklers, the sprinklers are arranged at a spacing of 2.2 meters to ensure even water distribution across the farmland.
| Model | DYP |
| Pipe Diameter | 141,168,203,214mm |
| Span | 61.3,54.5,48,41m |
| System Height | 4.6m |
| Working Time | 24 hours |
| Inlet Pressure | 0.25-0.35Mpa |
| Control Angle | 360° |
| Motor Power | 0.55 KW/Span |
| Irrigation quantity | 0--55mm |
| The max running speed of the last span | 156 meters / hour |
| Working volage | 380V，460V |
| Sprinker | Standard Nelson D3000 (USA) |
| Sprinkler distance | 2.2m |

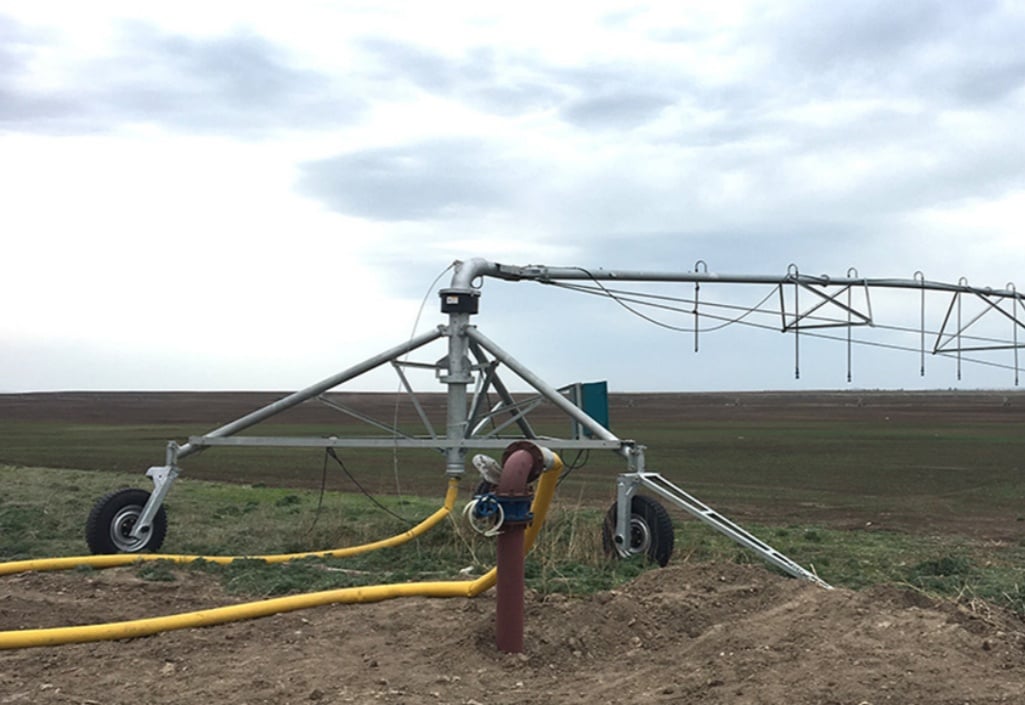

Applications:
Our mobile center pivot irrigator is a versatile irrigation solution for modern agriculture. With strong mobility and stable performance, it serves large farmlands, pastures and forage fields across all kinds of terrain.
It supports the irrigation of grain crops, cash crops and forage grass, and is the preferred equipment for commercial farms and agricultural demonstration zones. The flexible towable structure makes it easy to redeploy between plots, delivering uniform irrigation, water conservation and yield growth for all open-air planting environments.
Video：
Advantages：
1.Excellent Mobility
Adopting a professional towable structure, the unit can be easily towed by tractors and moved freely between different fields. It features high flexibility and realizes cross-plot reuse of irrigation equipment.
2.Water Saving & Uniform Irrigation
Equipped with premium brand sprinklers, it delivers even water distribution across the whole field. High water utilization rate effectively reduces water waste, ideal for water-scarce areas.
3.High Efficiency & Labor Saving
Fully automatic 360° rotary irrigation, capable of 24-hour continuous operation. It greatly cuts down manual work and daily management costs, improving overall irrigation efficiency.
4.Sturdy & Durable Structure
Main pipes are made of thickened carbon steel with hot-dip galvanized treatment in line with marine standards. Optional rubber liner prevents pipeline corrosion, ensuring long service life and low failure rate.
5.Wide Compatibility
Adaptable to flat farmland and terrains with a slope up to 25°. Suitable for most field crops, pastures and various large-scale planting scenarios.
6.Easy Operation & Maintenance
Modular design with simple mechanical and electrical structure. User-friendly control system and convenient daily upkeep, no complex professional skills required.
7.Energy Saving & Cost Effective
Low power consumption per span, stable running performance and low operating costs. It helps increase crop yield and quality while bringing better economic benefits.
After-sales service
一．Core Service Commitment
1. Warranty service: 2-year warranty for the entire machine, and extended warranty for key components
2. Lifetime maintenance service
二. Proactive and Value-added Services
1.Regular equipment inspection work
2. Professional training services
3. Intelligent remote support
三. Emergency Response System
1.All-weather emergency response
24-hour service hotline: We have set up a service hotline that operates all year round to ensure that customers can contact us immediately in case of an emergency.
2. Hierarchical response mechanism:
Level 1 (Emergency Failure) : The equipment is completely paralyzed. We promise to respond within 2 hours and dispatch engineers to the site within 24 to 72 hours (depending on distance).
Level 2 (General Fault) : Some functions of the equipment fail, but it can still operate at a downgraded level. We promise to respond within 4 hours and provide a solution within 48 hours.
Green channel for spare parts: Set up a spare parts warehouse and a fast spare parts logistics channel for emergency repairs, giving priority to ensuring emergency needs.
FAQ：
1. What is the irrigation coverage of this towable center pivot irrigation system?
The total span reaches 250 meters, supporting 360° full-range rotary irrigation. It can cover large areas of farmland and meet the irrigation needs of extensive planting land.
2. Is the equipment easy to move between different fields?
Yes. It features a professional towable design and can be conveniently pulled by a tractor to different plots. The whole machine has great mobility and flexible deployment.
3. What kinds of crops and lands is it suitable for?
It works perfectly for corn, wheat, soybeans, cotton, alfalfa, sunflower, sugarcane, pasture and other field crops. It is applicable to flat farmland, grassland, forage land and terrains with a slope within 25°.
