Product Description

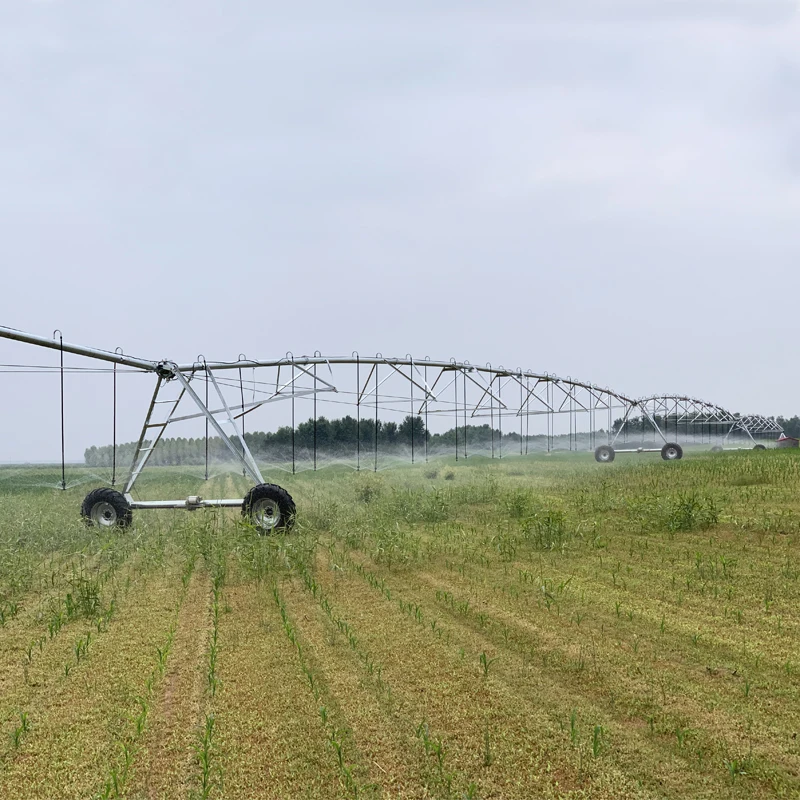

Farm three wheel towing center pivot sprinkler irrigationmachine is an irrigation system has proved itself in this field.This system irrigates at high performance economically withdifferent climate and terrain conditions. Galvanized anti.corrosion coating consisting of high-grade steel construction.This system makes automatic irrigation in a circular motionover a singie platform.
Specifications:
3 Rounds Towable Center Pivots Irrigation System |
||
Pipeline Diameter |
141mm, 168mm, 203mm, 254mm |
|
Pipeline Material |
Hot-dip galvanized pipe, Steel 304 pipe ： Option: with poly span inside |
|
Pipeline Thickness |
3.0mm |
|
Pipe Length |
6.7m |
|
Span Length |
54.5m, 48m, 41m |
|
Maximum Machine Length |
500m |
|
Overhang Length |
22ft=6.7m/pc, not more than 3pcs |
|
Sprinkler |
Nelson D3000/R3000 |
|
Working Voltage |
380-460V/50-60HZ: powered by Diesel generator or local power supply |
|
Truss Diameter |
22mm,19.1mm,17.5mm( 61.3m:22mm; 54.5m&48m: 19mm; 41m&34m:17.5mm ) |
|
Main pipe Flange thickness |
10mm, Flange and pipe adopt double welded technology |
|
Irrigation intake pressure |
0.25-0.35Mpa |
|
Irrigation intake |
1 water inlet in center point,quick pipe joint connected structure |
|
Tire Options |
11.2x22.5; 11.2x24.5; 11.2''x24''; 14.9x24'' |
|
Motor/Gearbox |
American brand |
|
Motor power |
0.75/1.5 HP |
|
Span body tower structure |
Adopt V model tower |
|
Control Panel |
Digital control or PLC |
|
End Gun |
Option: 35--45m |
|
Details Images
The enforced standard pipes are normally carbon steel, their diameters are 6 5/8 inch(168 mm), which is 10% thicker than the competitor's top quality level.And they are effected the hot-dip galvanized process according to maritime standard.
If the water condition is unexpected hostile,the rubber liner inside the pipe will offer additional protection.
The sprinkler from most famous brand in the world, so that our system has more competitive price and higher working performance.
1. Work status indication and real-time monitoring
2. Failure alarm
3. Span synchronization protecting function
4. Auto-stop of irrigation machine and water pump if water pressure is too low or if irrigation machine encounters some problem
5. Auto-start of water pump with the start of the machine
2. Failure alarm
3. Span synchronization protecting function
4. Auto-stop of irrigation machine and water pump if water pressure is too low or if irrigation machine encounters some problem
5. Auto-start of water pump with the start of the machine
Product Packaging
Only 40ft Container or 40HQ can load our equipment.
Our equpiments are all large scale, so normally would be delivered with full container load.
The standard export wooden boxes or pallets , which meet the international trading regulation, will be offered by our side.
The reliable shipping agent will be chosen, if the customer prefer the appointed shipping agent, also acceptable.
The standard export wooden boxes or pallets , which meet the international trading regulation, will be offered by our side.
The reliable shipping agent will be chosen, if the customer prefer the appointed shipping agent, also acceptable.
Installation
Company Profile
Office
Factory
FAQ
1. What about the MOQ? - 1 set (at least 2 spans) 2. There are many similar unqualified products in the market, how can you make sure your quality control? - We have got the certificates of CE and ISO 9001, and strict production procedures are effected in our company 3. What’s your accepted payment terms? - T/T or LC 4. How many sets machine can be loaded in a 40ft container? - About 1set with 500m or 2sets with 250m. 5. Whether you can support customized logo? - OEM service is available. 6. How many years warranty you can support? - One year standard warranty, but will supply more service if you need, pls contact us for more discussion.
