Product Description

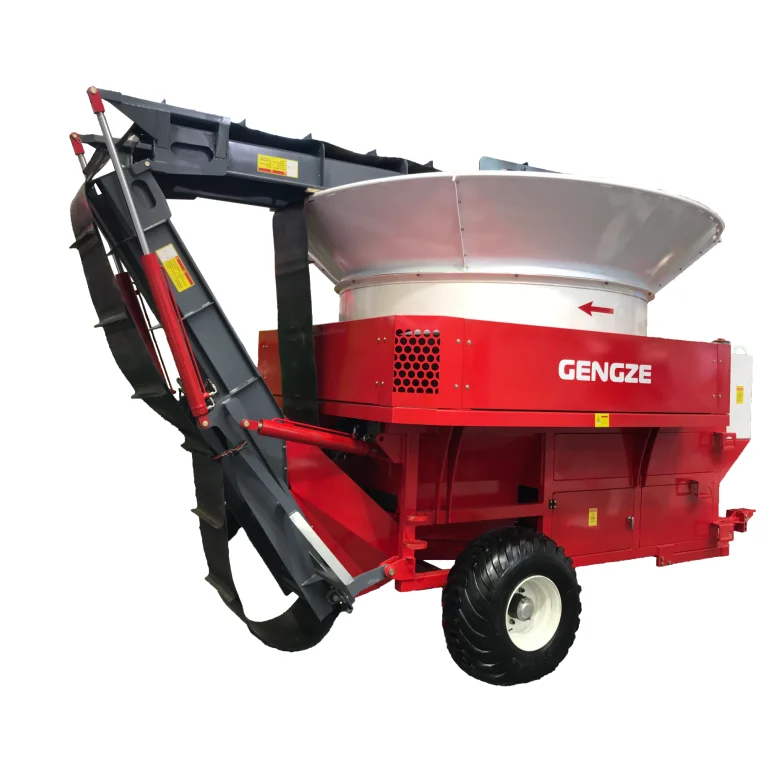

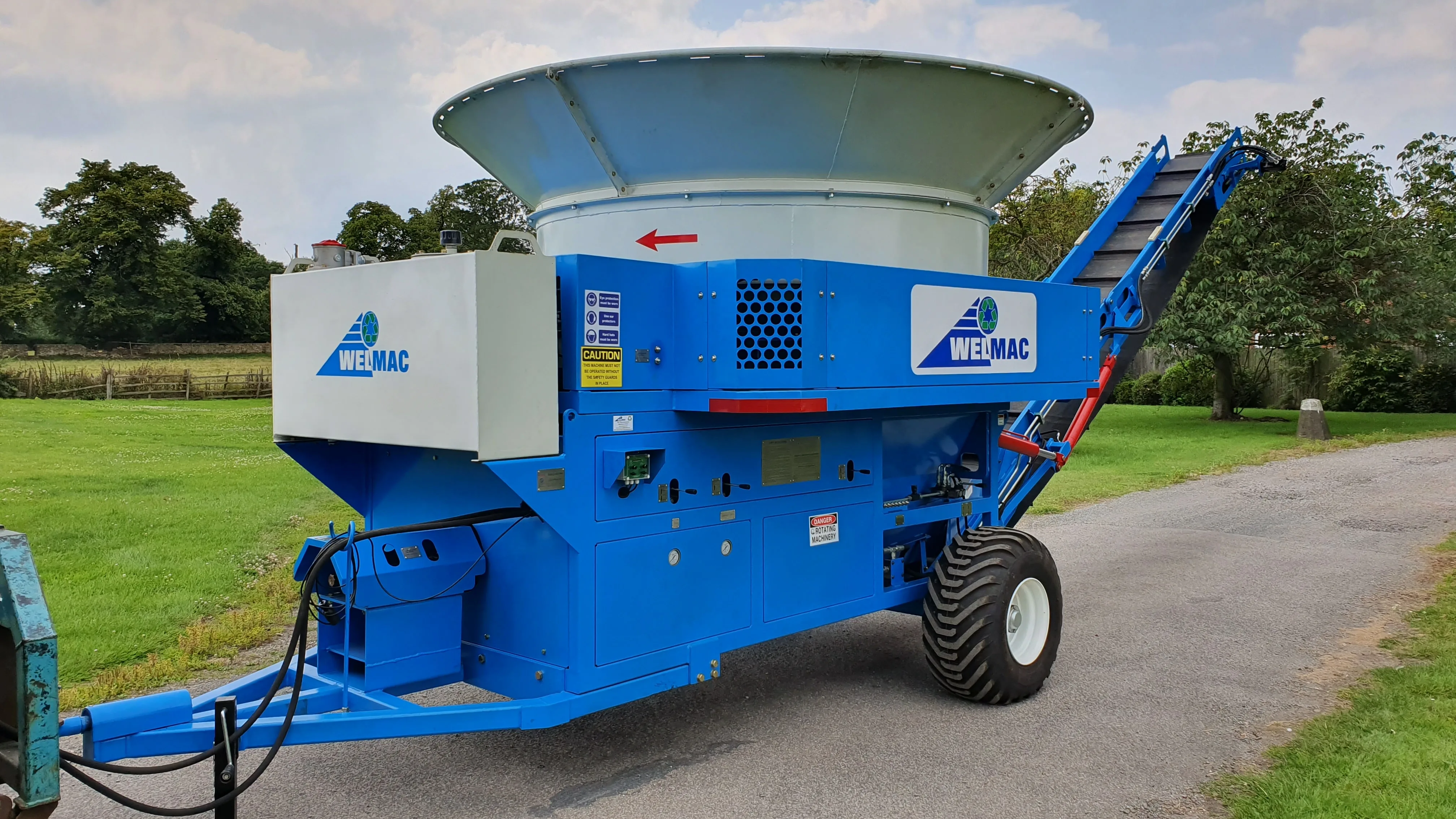

Large Scale Hay Bale Rotary Fly Hammer Tub Grinder Straw Chaff Chopper Rice Straw Cutter Kneading Equipment
Compared with other tub grinders, our Cattle Farm Animal Feed Forage Chaff Cutter Cornstalk Chopper Grass Tub Grinder Dry Straw Bales Shredderare around ours is only one-third of commercial value, but ours are much more capable in tougher condition.ours can grind all the wet, dry, tougher material for the cattle, but other do not have this ability.
Our Large Scale Hay Bale Rotary Fly Hammer Tub Grinder Straw Chaff Chopper Rice Straw Cutter are much more friendly to environment, it just needs a tractor with 90-180 HP, that means less diesel will be used while working.
Our Cattle Farm Animal Feed Forage Chaff Cutter Cornstalk Chopper Grass Tub Grinder Dry Straw Bales Shredder needs less maintenance and can be operated very easily. With a folding conveyor, which can be lower and up,the machine allows the grinded material into stock piles, trucks and spreading bedding. During working little waste occurs. Because of large clearance below the hammers, the machine can eliminate the block load of material.
Product Name |
Agricultural Tractor PTO Driven Cattle Feed Straw Maize Silage Processing Tub Grinder |
||||||
Rotor hammer mill |
Fly hammer: 64
Fly hammer shaft: 8
Drive: PTO
|
||||||
Combined power |
Tractor drive: 90-180 HP
PTO speed: 1000/ r-min Option: Motor drive: 90-150 kw
|
||||||
Screen mesh |
Thickness: 6 mm Diameter of hole :6 mm-125 mm |
||||||
Drum/Tub |
Outside width: 3.2m Inside Dia: 2.3m |
||||||
Screw pusher |
Type: bi-column symmetric Length: 1150mm |
||||||
Capacity |
Hay: 3-15T/H; Corn: 40-70T/H |
||||||
Discharging conveyor |
Type: folding hydraulic drive; Maximum lifting height: 4.19 m; Belt: Rubber |
||||||
Apply To |
Herbage, rice straw, oat grass, alfalfa, corn straw, rape straw, wheat straw, weeds, etc.
Corn kernels (high moisture content), corn cobs, etc.
|
||||||

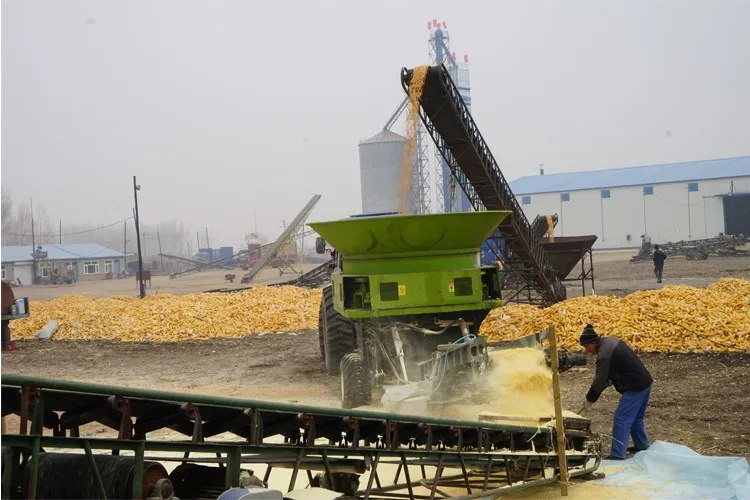

Grinding Corn
Grinding Silage

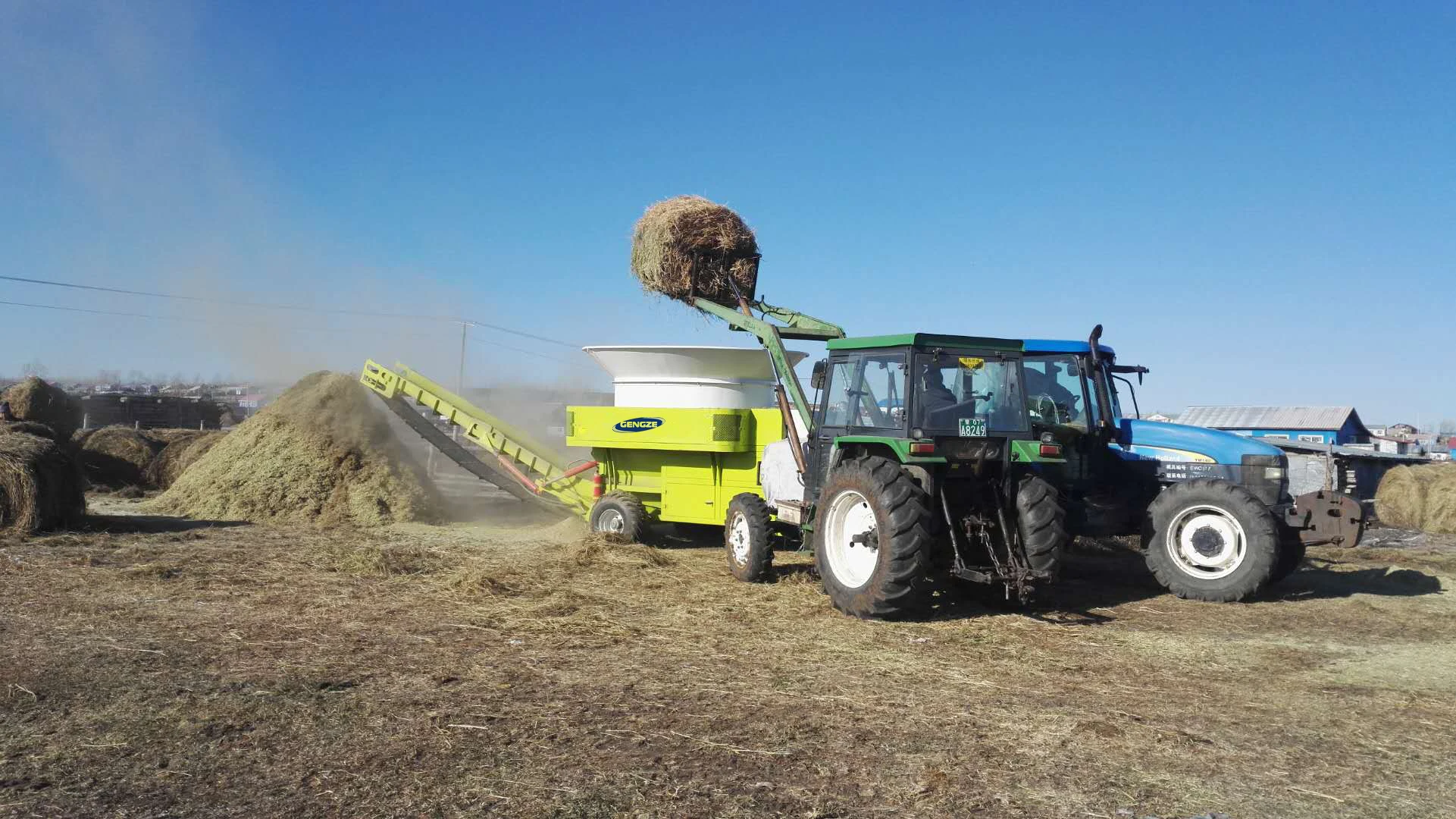

Grinding Effect Display
Detailed Images

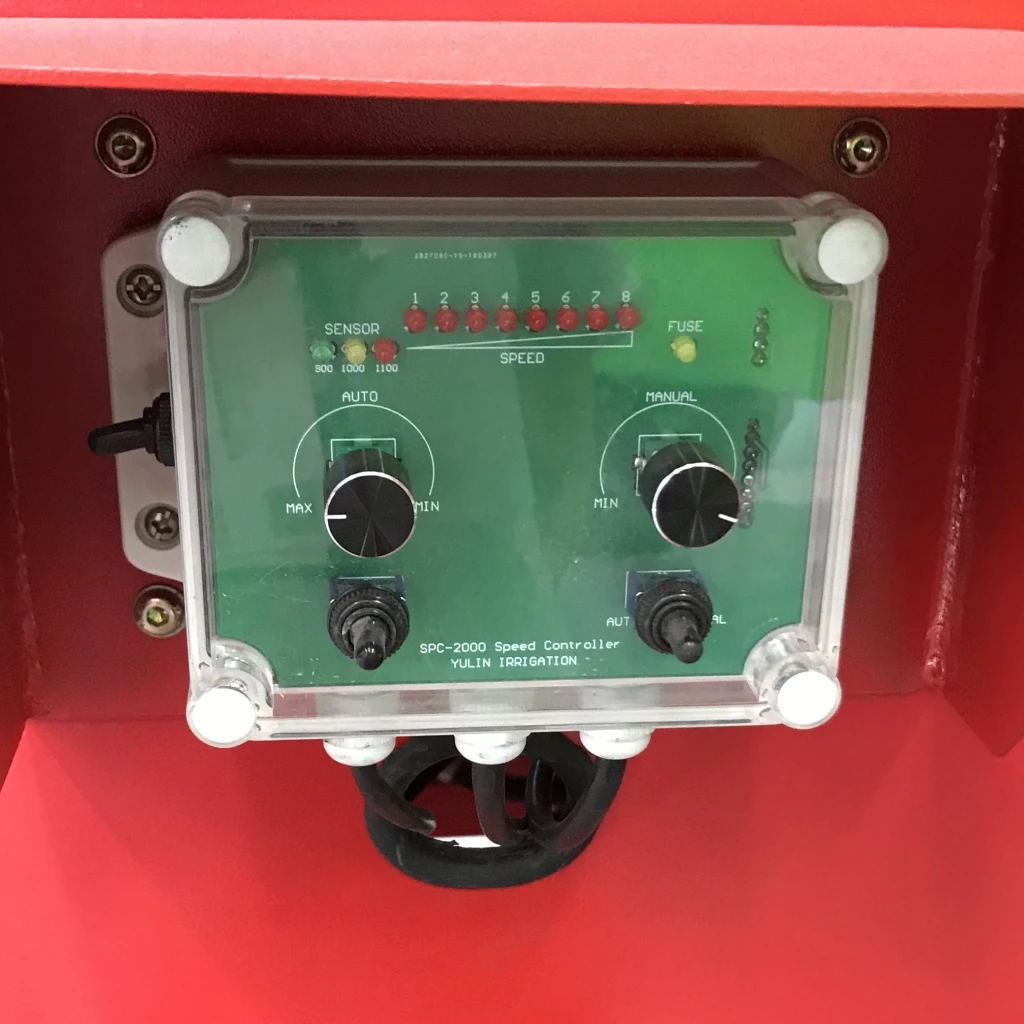

Electrical governor mounded on the machine , which control the stability of power outlet, adjust the tub speed. Also the tub rotating direction, stop is controlled by it.

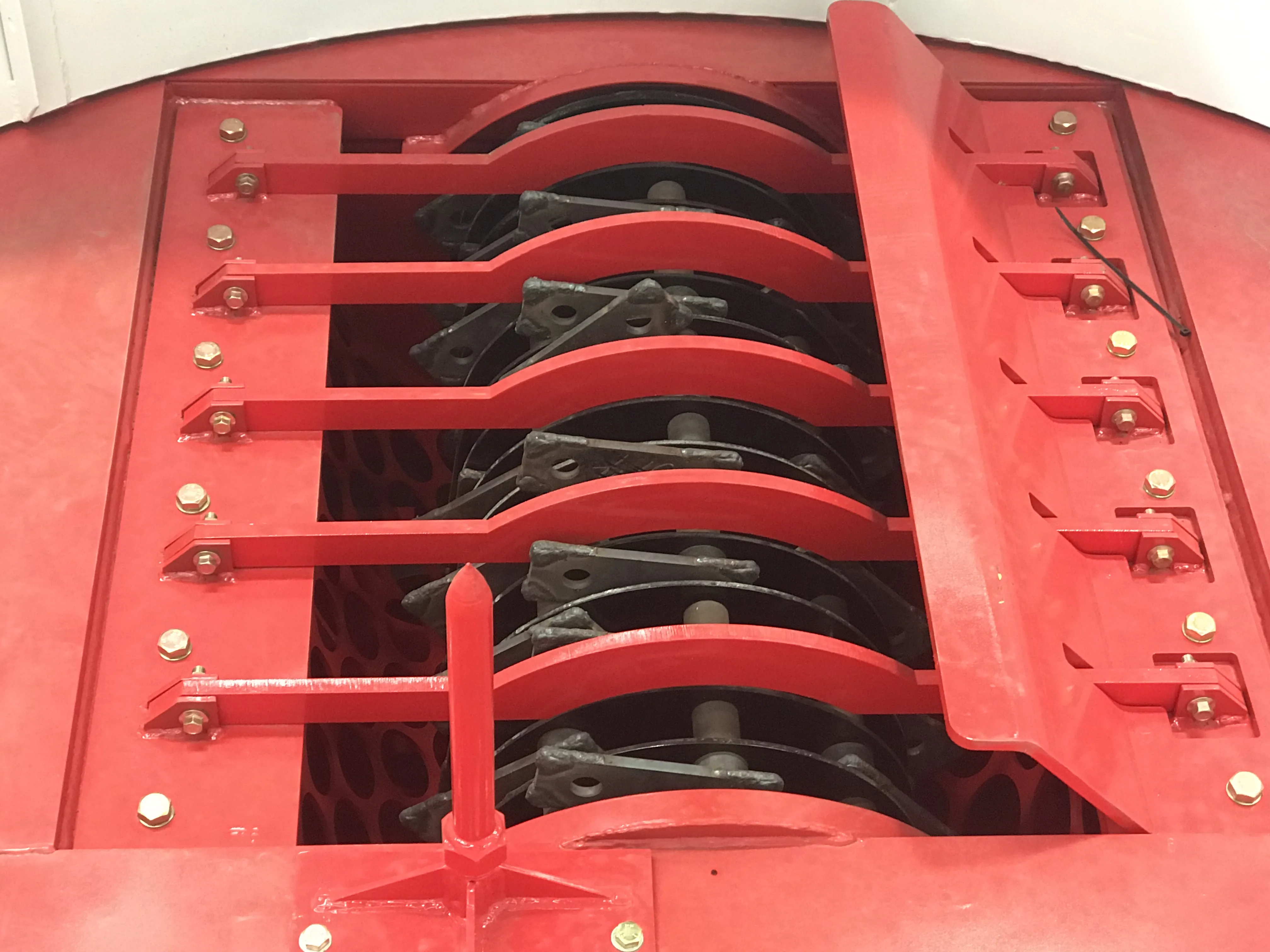

The hammers set as consumable parts can work with machine 2000- 4000 hours. And it is driven by 8-belt engine system , simple structure , not easy to shut-down

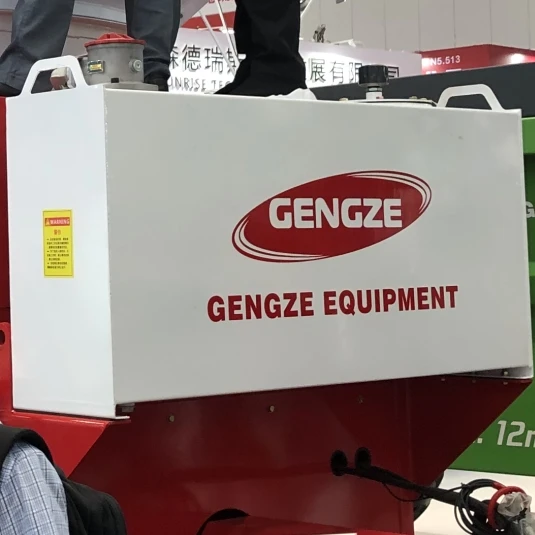

Hydraulic system to provide power for machine operation
The drum on the platform can be turnover with safe lock device, so that repair and parts changed can be easily accessed.
The new designed dual belly augers are suspended by two heavy duty bearings, to make sure the easy flow of outlet.

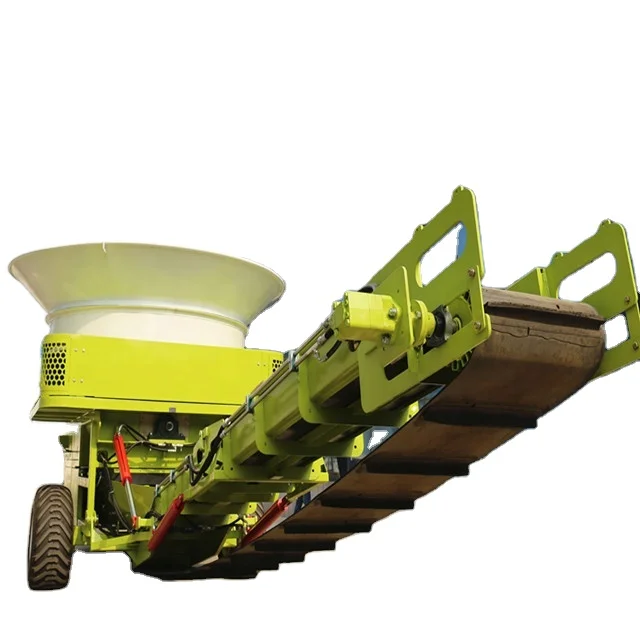

Smart and unique design chosen on the cylinders, make sure the boom to be folded.
Product Packaging
Our equipment are all large scale, so normally would be delivered with full container load.
The standard export wooden boxes or pallets , which meet the international trading regulation, will be offered by our side.
The reliable shipping agent will be chosen, if the customer prefer the appointed shipping agent, also acceptable.
Our Service
1.Certificate:CE, ISO: 90001;
2. Accept the third party inspection company quality check;
3.Product qualification rate achieved 100%;
4.Match the international environmental protection policy; quality and delivery can be guaranteed;
5. Full refund in case of bad quality.
6.we are the top 5 famous agricultural equipment manufacturer in China;
7.owning strong production ability;
8.Owing independent research and develop apartment and more than 100 professional service staff.
9.small order are welcomed, MOQ 1PCS.
10.Provide quality assurance agreement. Large Scale Hay Bale Rotary Fly Hammer Tub Grinder Straw Chaff Chopper Rice Straw Cutter Kneading Equipment
