Mobile Towable Center Pivot Irrigation Equipment
1.Tractor-Tow Mobile Design | Automated High Output Farm Irrigation Equipment
2.360-Degree Full-Area Sprinkling | Water Efficient Movable Pivot Irrigator for All Farm Crops
3.Marine-Grade Hot-Dip Galvanized Frame | Portable Rotary Irrigation Unit with Extended Service Life
- Overview
- Related Products
Description:
Independently developed and manufactured by Dalian Gengze Agricultural Equipment Manufacturing Co., Ltd., the DYP towable center pivot irrigation machine is an intelligent core irrigation unit integrating flexible mobility, full automation and high efficiency. Benefiting from decades of experience in irrigation equipment R&D and production, this model breaks the restriction of traditional fixed center pivot irrigators that can only work on a single plot. Equipped with an integrated traction traveling structure, the machine can be quickly towed to different farmlands by tractors, perfectly meeting diversified irrigation demands of large-scale farms, agricultural cooperatives and massive planting bases.
Applicable to arid, semi-arid areas and ordinary farmland, the equipment runs stably in all working cycles, helping users save water and labor while boosting crop yields and economic benefits.
Specifications:
The complete set consists of six major modules: central support tower, hot-dip galvanized steel truss, traveling drive assembly, intelligent electric control system, professional sprinkler assembly and traction moving mechanism.
The main pipeline is made of thickened high-quality carbon steel processed with marine-standard hot-dip galvanization, featuring outstanding compression resistance and corrosion resistance. An optional rubber liner can be installed to isolate erosion from poor-quality irrigation water and further extend the service life.
The machine is fitted with original US Nelson D3000 premium sprinklers installed at a standard 2.2-meter interval, delivering evenly distributed water across the whole field without dry spots.
| Model | DYP |
| Pipe Diameter | 141,168,203,214mm |
| Span | 61.3,54.5,48,41m |
| System Height | 4.6m |
| Working Time | 24 hours |
| Inlet Pressure | 0.25-0.35Mpa |
| Control Angle | 360° |
| Motor Power | 0.55 KW/Span |
| Irrigation quantity | 0--55mm |
| The max running speed of the last span | 156 meters / hour |
| Working volage | 380V，460V |
| Sprinker | Standard Nelson D3000 (USA) |
| Sprinkler distance | 2.2m |

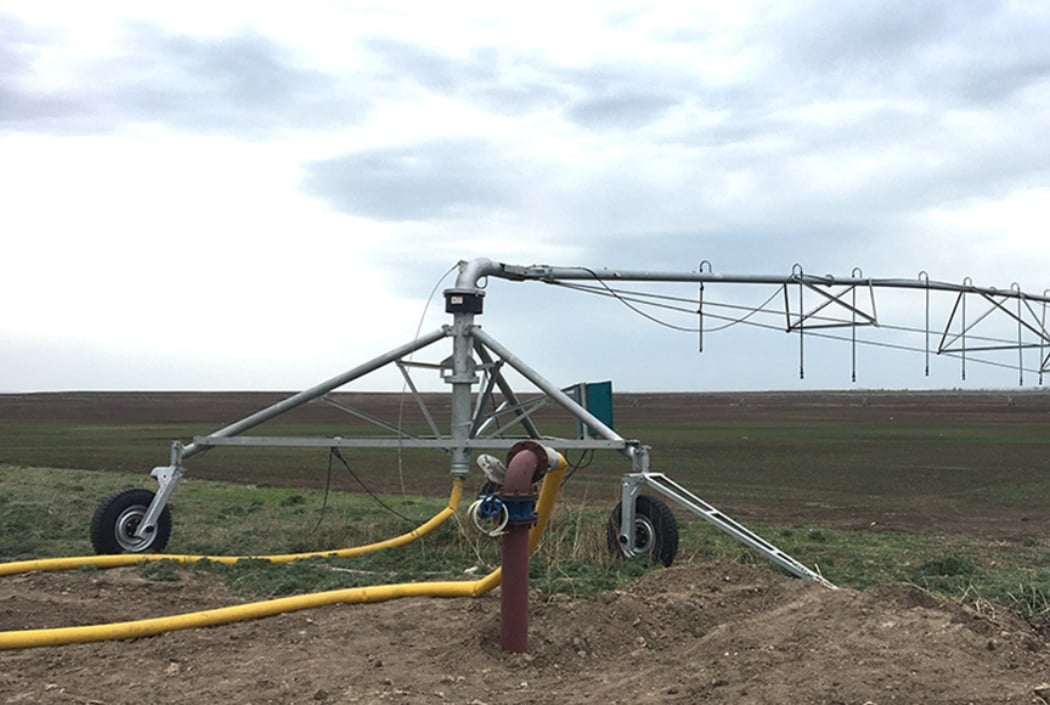

Applications:
This mobile center pivot irrigator fits all modern agricultural planting scenarios. With stable performance and convenient relocation, it is widely used in large farmlands, grasslands and forage bases and adapts to various terrains.
It works well for grain crops, cash crops and pasture grass, serving as the top irrigation choice for commercial farms and agricultural demonstration zones. The flexible towable design enables easy relocation between plots, achieving uniform water supply, water conservation and yield improvement for all open-air planting environments.
Relevant field operation real photos can be attached on the page.
Video：
Advantages：
1. Outstanding Relocation Mobility
Built with an integrated professional traction structure, the whole machine can be towed by tractors to freely transfer among different fields. The equipment can be reused across multiple plots with excellent flexibility.
2. Uniform Sprinkling & Remarkable Water Saving
Equipped with world-famous brand sprinklers, the machine delivers consistent water distribution over the entire field. It greatly improves water utilization rate and is highly suitable for water-deficient arid regions.
3. Fully Automatic High-Efficiency Operation & Labor Reduction
Capable of 360° automatic rotary spraying and 24-hour continuous operation, it drastically cuts manual labor and daily management costs and greatly lifts overall irrigation efficiency.
4. Robust Construction & Long Service Life
The main pipeline adopts thickened carbon steel with marine-grade hot-dip galvanized treatment. Optional rubber liners prevent pipeline corrosion and reduce equipment failure rates for long-term stable operation.
5. Wide Adaptability to Terrains & Crops
It works normally on flat ground and terrains with slopes up to 25 degrees. Compatible with most field grain crops, cash crops and grasslands for all large-scale planting projects.
6. Simple Operation & Convenient Maintenance
Modular overall design simplifies mechanical and electrical structures. The control system features a user-friendly interface, and daily maintenance is easy without professional technical skills.
7. Low Energy Consumption & Cost-Effective
Each span motor consumes low power with stable running performance to lower long-term electricity costs. Meanwhile, it improves crop yield and quality to bring higher economic returns to farmers.
After-sales service
一．Core Service Commitment
1. Warranty service: 2-year warranty for the entire machine, and extended warranty for key components
2. Lifetime maintenance service
二. Proactive and Value-added Services
Regular equipment inspection work
2. Professional training services
3. Intelligent remote support
三. Emergency Response System
1.All-weather emergency response
24-hour service hotline: We have set up a service hotline that operates all year round to ensure that customers can contact us immediately in case of an emergency.
2. Hierarchical response mechanism:
Level 1 (Emergency Failure) : The equipment is completely paralyzed. We promise to respond within 2 hours and dispatch engineers to the site within 24 to 72 hours (depending on distance).
Level 2 (General Fault) : Some functions of the equipment fail, but it can still operate at a downgraded level. We promise to respond within 4 hours and provide a solution within 48 hours.
Green channel for spare parts: Set up a spare parts warehouse and a fast spare parts logistics channel for emergency repairs, giving priority to ensuring emergency needs.
FAQ：
1.What is the irrigation coverage of this towable center pivot irrigation machine?
The maximum combined span reaches 250 meters, supporting 360° dead-angle-free rotary spraying. It can cover large contiguous farmlands and meet irrigation requirements of large-scale planting bases.
2.Is it difficult to transfer the machine between different plots?
The machine adopts a professional towable design and can be directly dragged by tractors to various farmlands. It boasts excellent mobility and flexible deployment for plot switching.
3.What crops and land types is this equipment suitable for?
It is ideal for corn, wheat, soybean, cotton, alfalfa, sunflower, sugarcane, pasture and other field crops. It can be applied on flat farmland, grassland, forage land and terrains with slopes within 25 degrees.
