250m Rotating Linear Motion Irrigation System
1.360° Uniform Irrigation with Towable Flexibility
2.Continuous Linear Irrigation for Large-Scale Crops
3.Auto High-Efficiency Linear Drive Farm Irrigation
- Overview
- Related Products
Description:

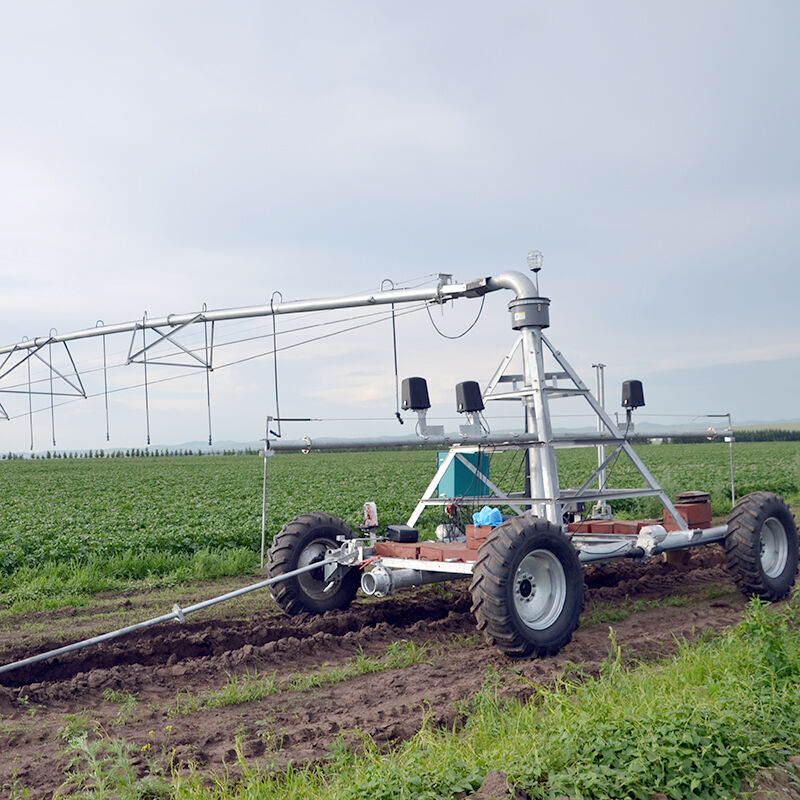

This 250m Rotating Linear Motion Irrigation System is a high-performance automatic irrigation solution engineered for large-scale agricultural planting, featuring a professional 360° rotating linear drive core design and a total span of 250m. It achieves slow, stable linear movement around the central pivot, covering large-area farmland in a circular range with uniform water distribution and no irrigation dead angles, and the adjustable irrigation quantity (0--55mm) precisely matches the water demand of different crops in various growth stages. The last span can reach a maximum running speed of 156 meters per hour, supporting 24-hour continuous operation to meet the efficient irrigation needs of large flat farmland.

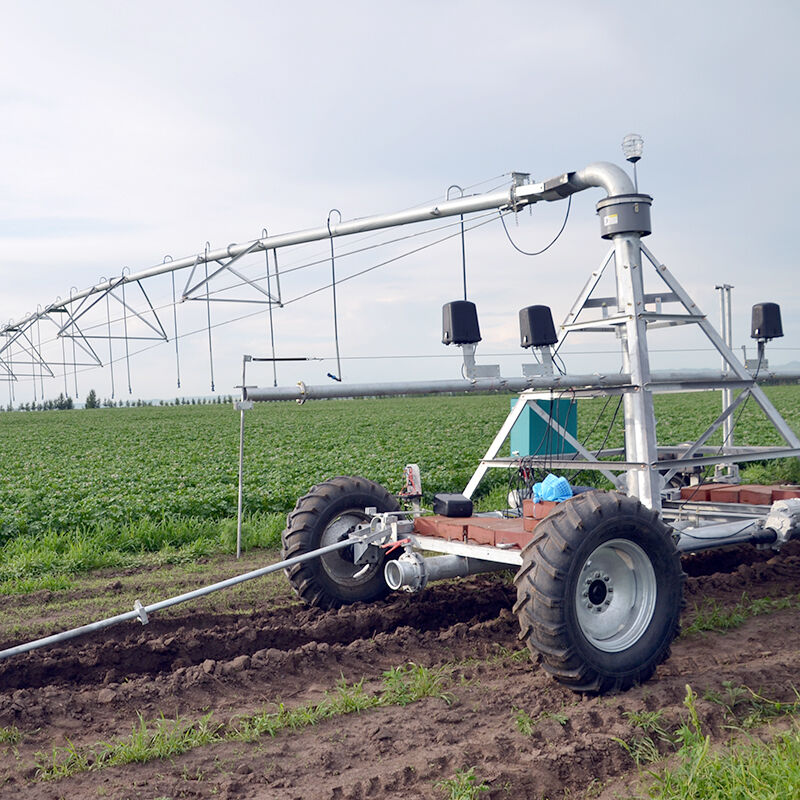

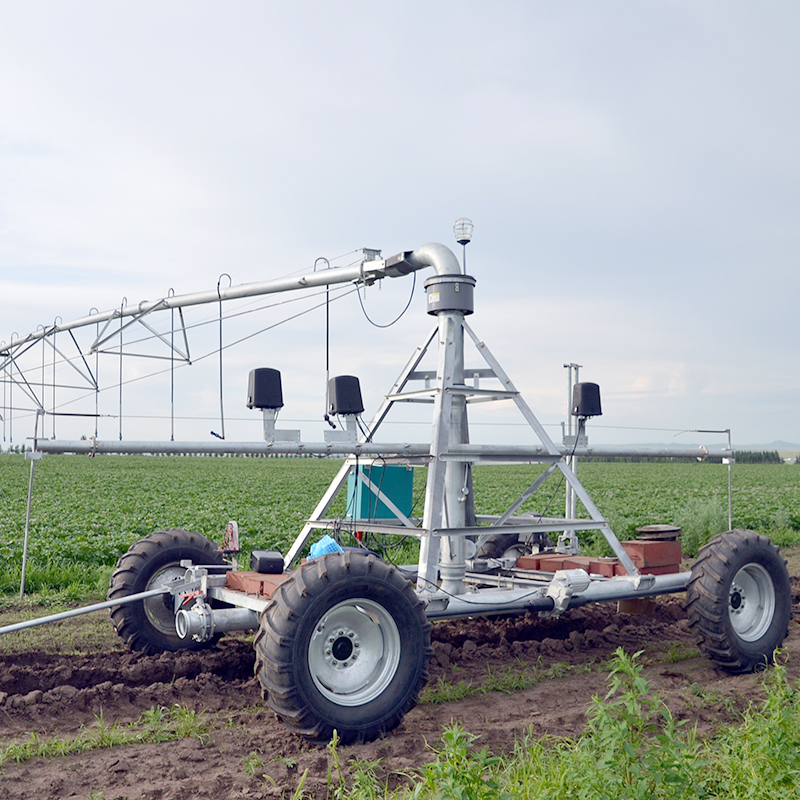

Equipped with a sturdy multi-specification pipe structure (141/168/203/214mm diameter) and dedicated 0.55KW per-span low-power motors, the system operates stably with low failure rates and energy consumption; matched with standard American Nelson D3000 sprinklers (2.2m spacing) and a 0.25-0.35Mpa inlet pressure design, it ensures uniform water atomization and improved irrigation quality. Its integrated towable structure enables easy transfer between different plots by tractor, with strong mobility and flexibility, realizing multi-field shared use and solving the problem of difficult movement of traditional large irrigation equipment.
Specifications:
| Model | DYP |
| Pipe Diameter | 141,168,203,214mm |
| Span | 61.3,54.5,48,41m |
| System Height | 4.6m |
| Working Time | 24 hours |
| Inlet Pressure | 0.25-0.35Mpa |
| Control Angle | 360° |
| Motor Power | 0.55 KW/Span |
| Irrigation quantity | 0--55mm |
| The max running speed of the last span | 156 meters / hour |
| Working volage | 380V，460V |
| Sprinker | Standard Nelson D3000 |
| Sprinkler distance | 2.2m |

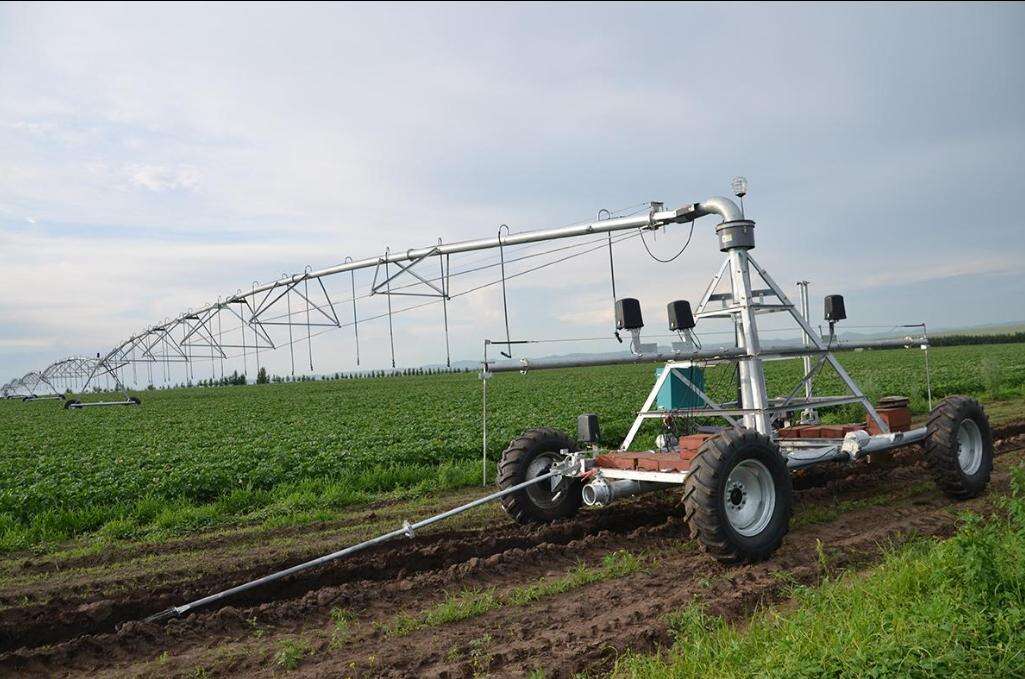

Applications:

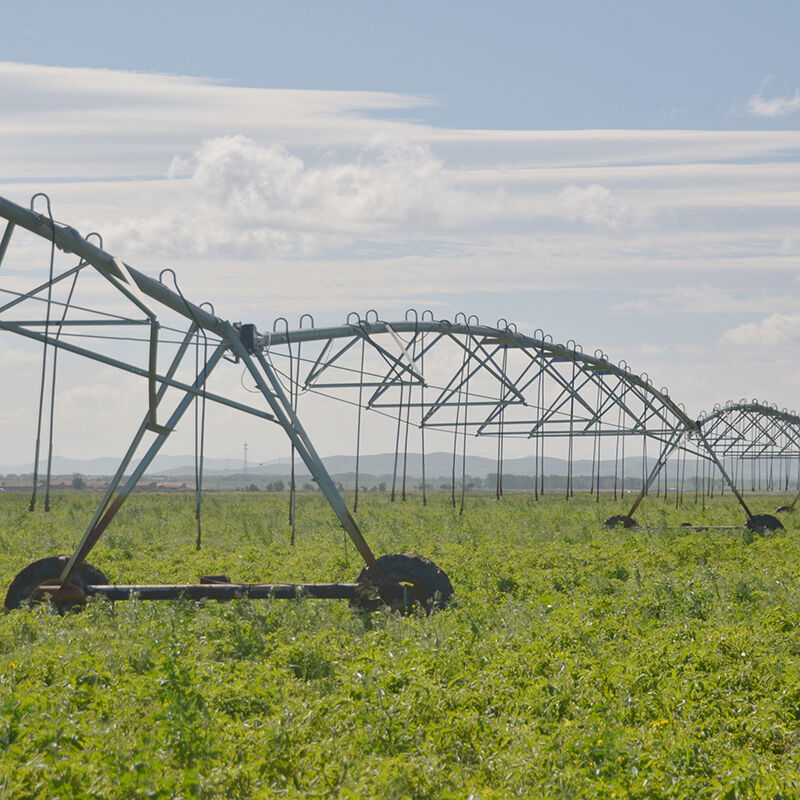

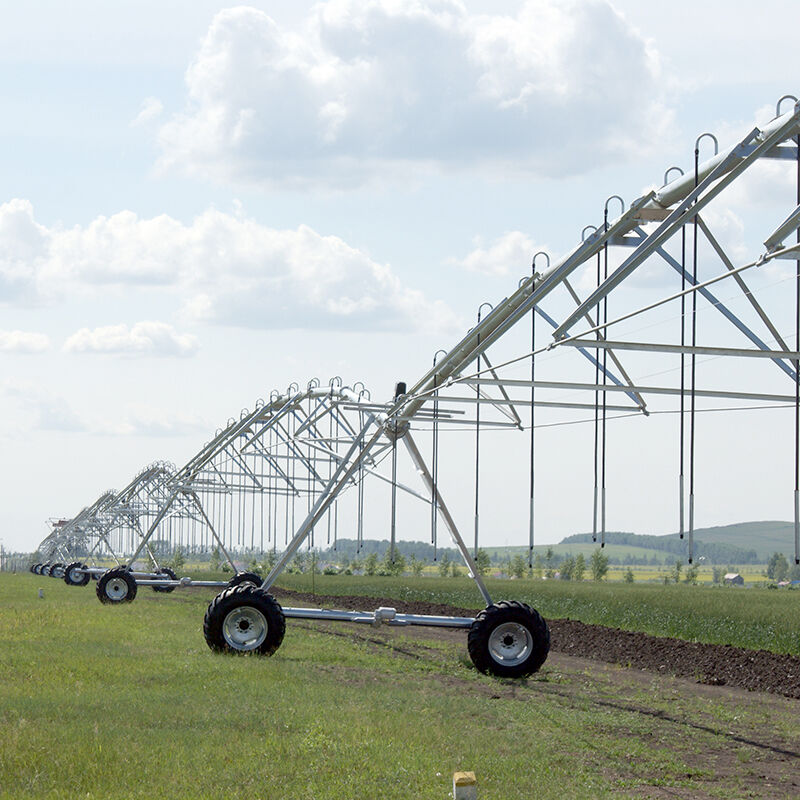

This 250m Rotating Linear Motion Irrigation System is engineered for large-scale agricultural irrigation scenarios, boasting strong adaptability to diverse terrains, crops and planting operations. It is widely applied in the following scenarios:
1.Applicable Terrains: Large flat farmland, natural grassland, pastoral land, artificial forage land and all open flat agricultural lands requiring large-area uniform irrigation.
2.Suitable Crops: Field grain crops (corn, wheat, soybeans, sorghum), economic crops (cotton, sunflower, sugarcane) and forage crops (alfalfa, pasture) of various planting scales.
3.Target Users & Bases: Large-scale commercial farms, family farms, agricultural planting cooperatives, professional crop planting bases and modern agricultural demonstration zones.
4.Irrigation Demand Scenarios: Areas pursuing high-efficiency, water-saving and labor-saving automatic irrigation; plots that need flexible transfer of irrigation equipment and shared use across multiple fields; arid and semi-arid regions with water resource constraints and ordinary farmland areas aiming to improve agricultural water utilization efficiency.
5.General Agricultural Scenarios: All open-field planting operations that require stable, continuous 24-hour irrigation and 360° full-coverage water distribution for large-area farmland.
Video：
Advantages：
1.High-Efficiency Rotating Linear Irrigation
360° rotating linear drive design with a 250m total span achieves circular full coverage of large farmland, no irrigation dead angles, and adjustable irrigation quantity (0--55mm) for precise water supply matching different crop growth needs; supports 24h continuous operation to meet large-scale irrigation demands efficiently.
2.Towable Flexibility & Strong Mobility
Integrated towable structure enables easy transfer between different plots by tractor, realizing multi-field shared use of equipment. It perfectly solves the problem of difficult movement of traditional large irrigation systems, with high flexibility to adapt to diversified planting layout needs.
3.Water & Energy Saving, Cost Reduction
Uniform water distribution by standard USA Nelson D3000 sprinklers (2.2m spacing) ensures high agricultural water utilization rate, effectively saving water resources; low-power motor configuration (0.55 KW/span) features low energy consumption while maintaining stable operation, reducing long-term operation costs.
4.Stable & Durable for Long-Term Use
Sturdy multi-specification pipe structure (141/168/203/214mm diameter) and reliable drive system ensure low failure rate and long service life; the whole machine is built with durable materials, adapting to long-term outdoor agricultural working conditions with stable performance.
5.Full Automation & Labor Saving
Intelligent automatic operation realizes unmanned on-site irrigation management, greatly reducing manual labor and daily management costs of large-scale farmland; no complex professional operation is required, and the system runs stably with minimal human intervention.
6.Easy Operation & Maintenance
Concise structural design with user-friendly operation interface, suitable for agricultural operators of different skill levels; daily maintenance only requires simple routine checks, with low later maintenance difficulty and cost, saving time and effort for farm management.
7.Improve Crop Yield & Quality
Stable and uniform linear irrigation ensures consistent water supply for crops in the whole covered area, promoting balanced growth of crops and effectively improving the overall yield and commercial quality of field crops, bringing higher economic benefits for planting operations.
8.Wide Adaptability
Compatible with multiple working voltages (380V/460V) and adaptable to different power supply conditions; suitable for various open-field planting terrains and crop types, and applicable to both arid/semi-arid regions and ordinary farmland, with strong environmental and scenario adaptability.
After-sales service
Core Service Commitment
1. Warranty service: 2-year warranty for the entire machine, and extended warranty for key components
2. Lifetime maintenance service
FAQ：
1. What is the core design feature of this 250m Rotating Linear Motion Irrigation System?
It features a professional 360° rotating linear drive design with a total span of 250m, realizing slow and stable linear movement around the central pivot. The design achieves circular full coverage of farmland with uniform water distribution and no irrigation dead angles, and supports adjustable irrigation quantity for precise water supply.
2. What is the maximum running speed and irrigation quantity range of the system?
The last span of the system can reach a maximum running speed of 156 meters per hour, and the adjustable irrigation quantity ranges from 0 to 55mm, which can be flexibly adjusted to match the water demand of different crops in various growth stages.
3. Is this irrigation system easy to move between different fields?
Yes. It is designed with an integrated towable structure, which can be easily towed and transferred between different plots by a tractor. It has strong mobility and flexibility, realizing multi-field shared use of equipment and solving the movement difficulty of traditional large irrigation systems.
