Agricultural Feed Spreader Truck
28 Cubic Meter Large‑Capacity Agricultural Feed Spreader Truck | Self‑Propelled Hydraulic‑Powered, Uniform Long‑Distance Throwing & Metal Debris Removal for Large‑Scale Livestock Farm Feeding
- Overview
- Related Products
Description:

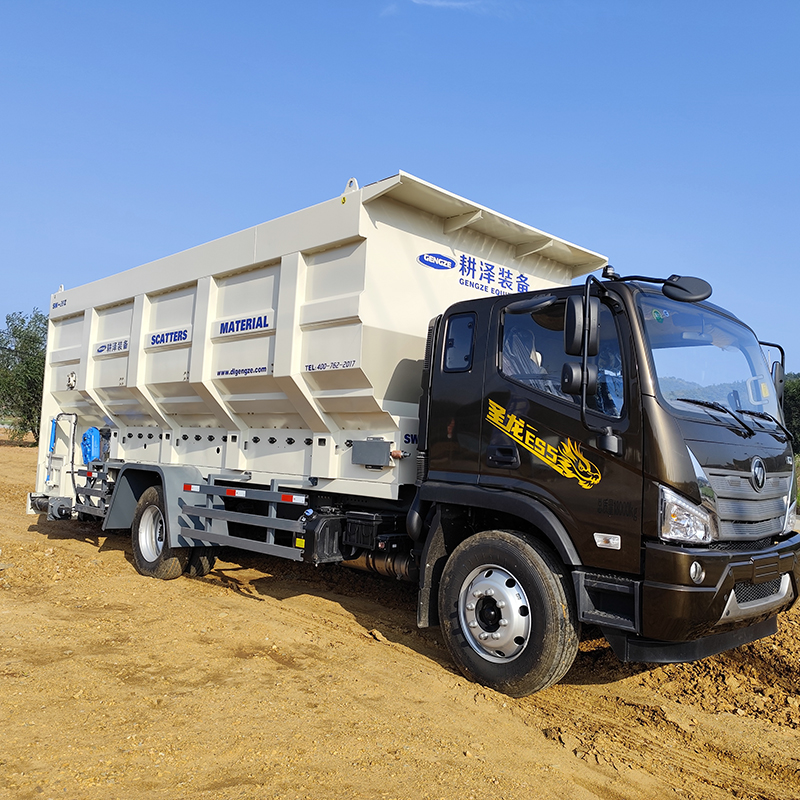

Our 28m³ Agricultural Feed Spreader Truck is a heavy‑duty self‑propelled livestock farming solution purpose‑built for high‑volume feed distribution operations on large‑scale farms and pastures. This hydraulically driven feed spreader features a front feeding system equipped with dual hydraulic motors and heavy‑duty conveyor belt assembly to achieve smooth, leak‑free material delivery throughout the whole working cycle. Its rear discharge system adopts direct‑drive belt roller design to realize high‑speed, long‑distance throwing performance, delivering consistent feed output even during extended heavy‑duty continuous operations. A built‑in magnet fitted on the rear discharge roller efficiently captures stray metal debris including screws, nuts and iron filings mixed within feed materials, effectively preventing hard foreign objects from being thrown out together with feed and protecting livestock from potential injury caused by metal impurities.
A heavy‑duty rigid coupling assembly is integrated into the internal power transmission chain, acting as a reliable overload buffer. In case of unexpected feed jams or sudden peak loads, it absorbs impact shocks to safeguard critical transmission components against damage, reduce unplanned downtime and greatly extend the machine’s overall service life.
The core rear throwing roller unit is precisely calibrated to stabilize feed flight trajectories. This advanced configuration eliminates common uneven‑spreading troubles such as over‑accumulated feed strips or uncovered blank zones, and maintains stable spreading accuracy across the full working range.
Constructed with thickened high‑strength steel frames, this 28m³ feed spreader truck combines ultra‑large hopper capacity with excellent structural rigidity. Human‑centered layout facilitates daily operation and routine inspection, lowering maintenance workload for farm operators. It enables large‑scale breeding enterprises to finish massive feed‑distributing tasks efficiently, significantly cuts manual labor input, and supports standardized feeding management for modern animal husbandry.
Specifications:
| Model | SW-28Z |
| Capacity（m³） | 28 |
| Engine power | 200HP |
| Maximum discharge rate | 0.12m³/m |
| Weight（t） | 10 |
| L*W*H(mm) | 9060mmX3000mmX3530mm |
| Discharge out let height(from ground) | 850 mm |
Applications:

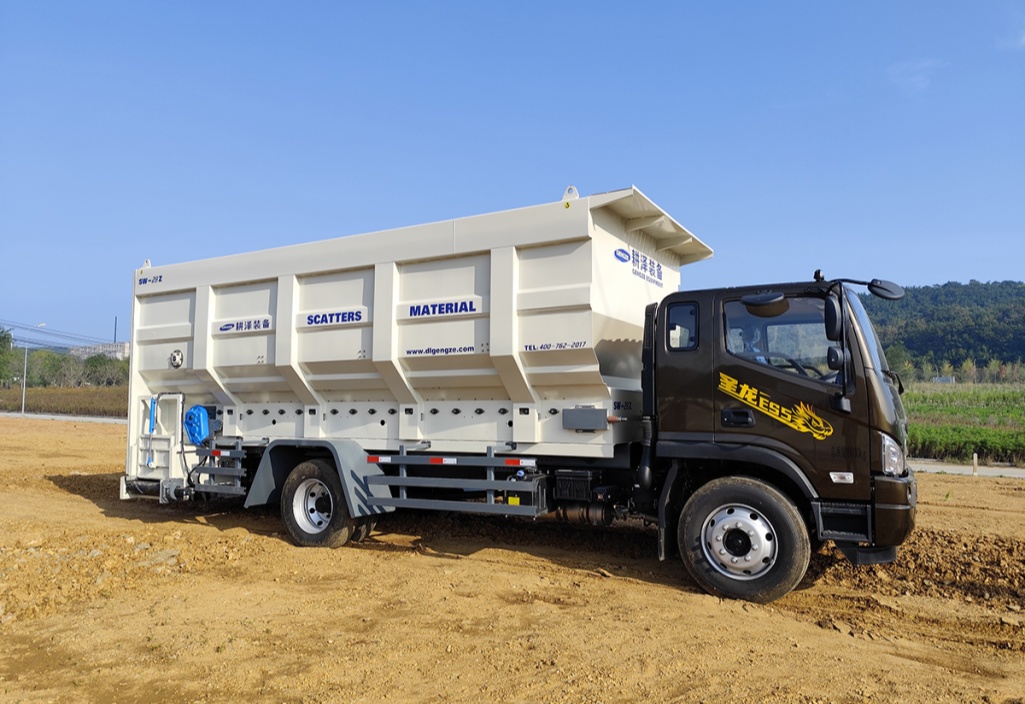

This 28m³ Agricultural Feed Spreader Truck suits intensive large‑scale livestock production scenarios, covering commercial large‑size pastures, concentrated cattle and sheep breeding farms, large family‑run feeding yards and agricultural cooperatives. It performs outstandingly in distributing TMR mixed ration, silage, hay, forage and livestock bedding materials.
Benefiting from its 28‑cubic‑meter oversized storage hopper, operators can minimize frequent refilling interruptions during pasture operation. Combined with its stable long‑distance throwing performance and built‑in metal impurity removal function, the machine ensures clean and even feed supply, optimizes livestock feeding environment and improves overall operational efficiency of large‑scale breeding farms.
Video：
Advantages：
1.Self‑Propelled Full‑Hydraulic Driving & Front Feeding System
Dual hydraulic motors power the front‑mounted feeding system paired with heavy‑duty conveyor belt, realizing stable, leak‑free feed conveying. Independent self‑propelled structure removes reliance on tractors; it adapts excellently to complex and uneven ground conditions inside barns and open pastures for long‑hour non‑stop operation.

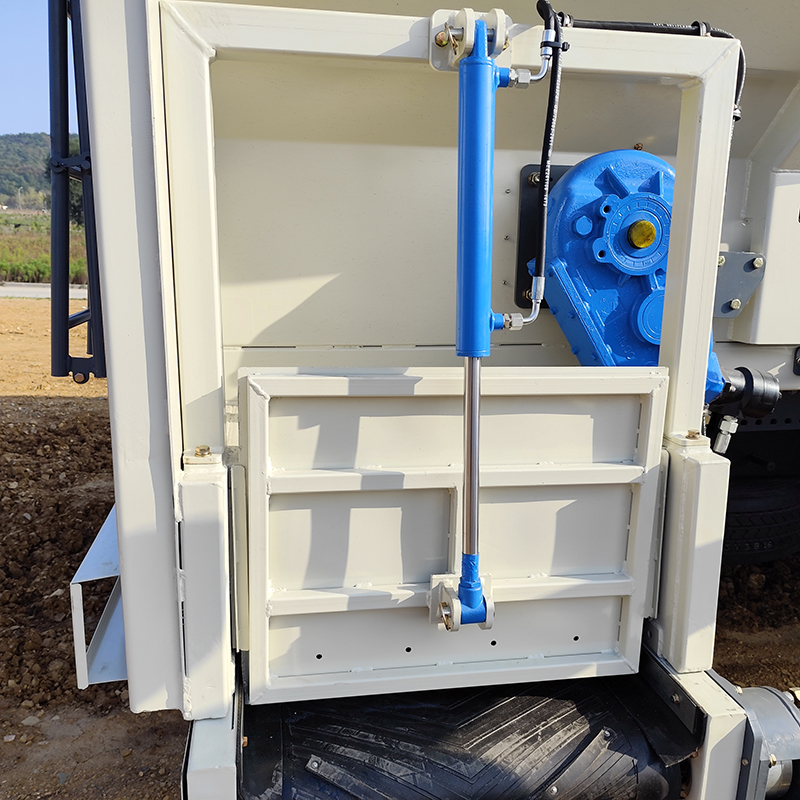

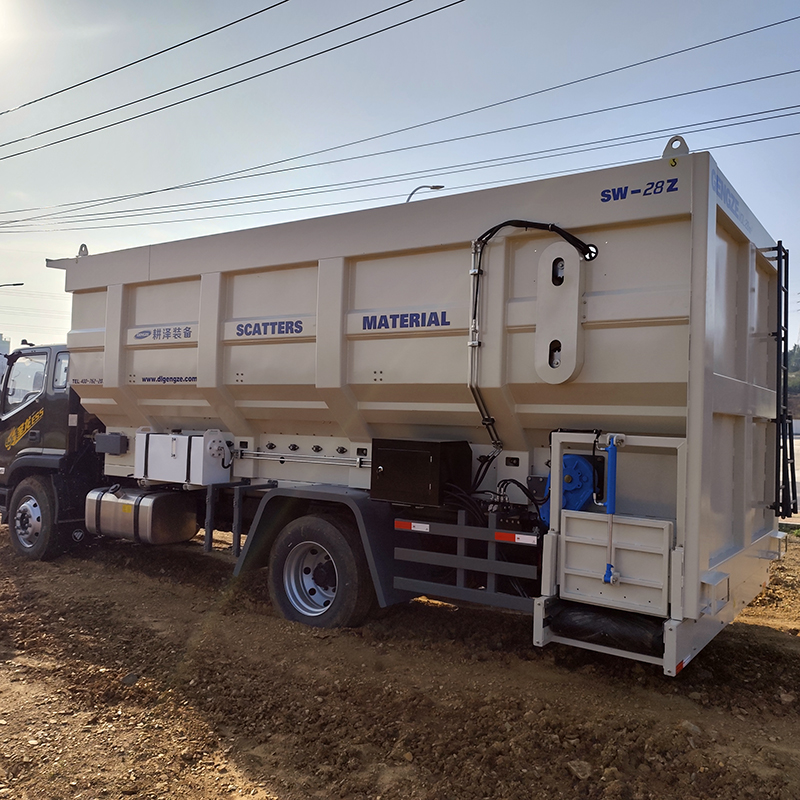

2.Rear Direct‑Drive Discharge Roller for High‑Speed Long‑Distance Throwing
Direct‑drive belt‑roller rear discharge structure delivers powerful high‑speed throwing capacity, achieving adjustable spreading distance from 6‑15 meters, realizing wide‑range feed distribution across pastures or feeding lots.
3.Built‑in Magnetic Metal Debris Removal
Powerful magnet installed on rear discharge roller traps screws, nuts, iron filings and other ferrous scraps mixed in raw feed. It filters hazardous metal impurities before material discharge, avoiding livestock ingestion risk and improving feed safety.
4.Built‑in Overload‑Resistant Protection
Rigid coupling power connection cushions sudden load shocks triggered by feed blockages or material surges, protects key transmission parts against burnout or fracture and enhances complete‑machine reliability.

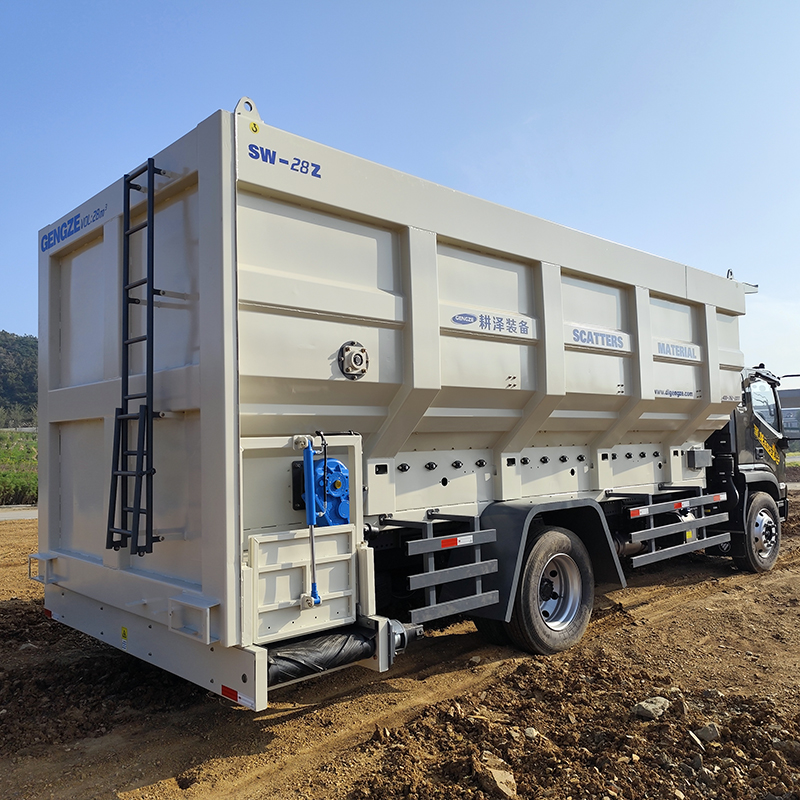

5.Ultra‑Large‑Capacity Heavy‑Duty Frame
Massive 28m³ hopper reduces repeated refilling frequency. High‑strength welded steel construction withstands harsh breeding‑site operating conditions for long service life.
6.User‑Friendly Operation & Low‑Maintenance Design
Simplified human‑oriented control logic for operators; key inspection and service points are readily accessible for quick check‑ups and component replacement, shortening equipment downtime and cutting maintenance cost.
FAQ：
Q1: What is the driving principle of this 28m³ Agricultural Feed Spreader Truck?
A: This is a self‑propelled fully‑hydraulic feed spreader truck with no tractor required. Dual hydraulic motors drive the front feeding conveyor belt for leak‑free material transport; power is transmitted to the rear direct‑drive discharge roller to complete high‑speed long‑distance feed throwing.
Q2: How does the machine handle metal impurities mixed in feed materials?
A: A high‑strength built‑in magnet is mounted on the rear discharge roller. It attracts and collects stray metal fragments such as screws, nuts and iron filings contained in feed before discharging, preventing metal debris from being spread together with feed and protecting livestock health.
Q3: Which parts ensure smooth feed conveying and long‑distance spreading performance?
A: The front feeding system driven by dual hydraulic motors together with heavy‑duty conveyor belt guarantees smooth leak‑free feed delivery. The rear direct‑drive belt‑roller discharge unit provides powerful kinetic energy to realize high‑speed long‑distance throwing within 6‑15 meters working width.
Q4: Can this 28m³ large‑capacity feed spreader truck work continuously under heavy‑load conditions?
A: Yes. The whole machine adopts reinforced welded steel structure and wear‑resistant core components, plus rigid‑coupling overload protection mechanism. It is engineered for demanding livestock‑farm operating environments and supports stable long‑duration continuous work.
Q5: Is this large‑volume feed spreader truck complicated to operate and maintain?
A: No. It adopts practical breeding‑site‑oriented design. Operators can get familiar with operation quickly after simple training. Major service locations are exposed for easy inspection and part replacement to save maintenance time and expense.
Q6: What materials and farm sites is this self‑propelled feed spreader truck suitable for?
A: It has wide applicability for large‑scale cattle‑sheep pastures, intensive feeding barns and agricultural cooperatives. It can spread TMR mixed feed, silage, hay, forage and bedding materials to satisfy diversified feeding requirements for modern large‑scale animal husbandry.
