DPP Series Traveling Linear Sprinkler Machine | Automatic Large Farm Linear Irrigation Equipment
Efficient Full-Field Uniform Watering System
24H Unattended Agricultural Linear Irrigator
Water-Saving Automatic Sprinkler Equipment for Large Rectangular Farmland
Durable Modular Farm Irrigation Machine with Imported Sprinkler Heads
- Overview
- Related Products
Description:
The DPP Series Traveling Linear Sprinkler Machine is an advanced automated irrigation device specially developed for large continuous rectangular farmlands. Unlike circular center pivot irrigation equipment that leaves unused corner areas, this linear sprinkler moves back and forth in a straight line across the field, achieving nearly full land coverage without dry blind zones and greatly improving farmland utilization efficiency.
Fitted with standard American Nelson D3000 sprinklers spaced 2.2 meters apart, the equipment delivers soft, rain-like water mist with a full 360° spraying angle. Its irrigation volume can be flexibly adjusted between 0–55mm, perfectly matching the water demand of various crops at different growth stages. The stable water delivery pipeline ensures consistent water output along the entire truss, effectively solving the common problems of uneven watering, soil hardening and crop damage caused by manual watering or fixed small sprinkler facilities.
Boasting an intelligent automatic travel control system, the machine supports 24-hour continuous unattended operation. Farmers only need to preset travel speed, irrigation volume and working cycles, and the unit can run independently over vast farmlands with minimal manual supervision. The whole frame and pipeline adopt thickened anti-corrosion metal materials, which can withstand long-term outdoor exposure to sunlight, rain and soil abrasion, extending service life and reducing daily maintenance pressure.
Adopting a modular spliced structure, the linear irrigator supports quick disassembly, transportation and on-site assembly. It is suitable for flat land and gentle slopes within 5°, and can be freely combined with different span lengths according to actual field sizes. Whether for daily regular irrigation or emergency drought supplementary watering, the DPP linear sprinkler provides stable and cost-effective irrigation support to help modern large-scale farms boost crop quality and total yield.
Specifications:
| Model | DPP |
| Pipe Diameter | 141,168,203,214mm |
| Span | 61.3,54.5,48,41m |
| System Height | 4.6m |
| Working Time | 24 hours |
| Inlet Pressure | 0.25-0.35Mpa |
| Control Angle | 360° |
| Motor Power | 0.55 KW/Span |
| Irrigation quantity | 0--55mm |
| The max running speed of the last span | 156 meters / hour |
| Working volage | 380V，460V |
| Sprinker | Standard Nelson D3000 (USA) |
| Sprinkler distance | 2.2m |

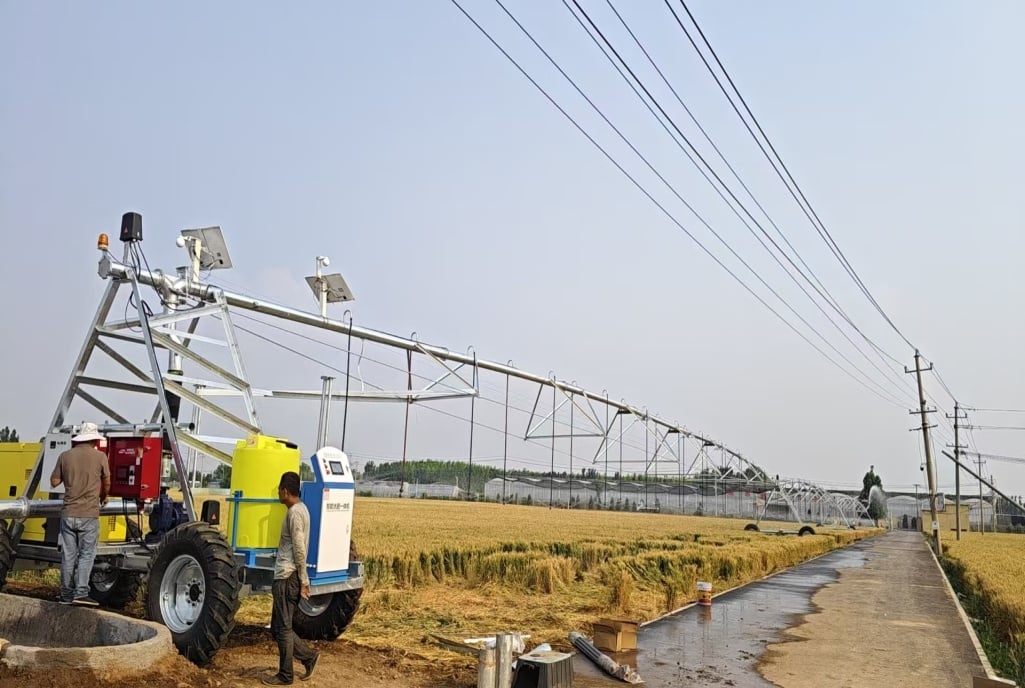

Applications:
· Large Grain Crop Farms
Ideal for expansive wheat, corn, rice and barley fields. Uniform and stable soil moisture can maintain steady crop growth throughout the whole growth cycle and guarantee stable grain yield.
· High-Value Cash Crop Plantations
Applicable to cotton, soybean, sugar beet and oilseed planting bases. Adjustable spray intensity meets precise water requirements in seedling, blooming and fruiting periods to upgrade the commercial value of cash crops.
· Open-Air Vegetable Bases & Fruit Orchards
Perfect for tomatoes, potatoes, cabbages and other field vegetables, as well as apple, pear and citrus orchards. Gentle atomized irrigation avoids fruit drop and leaf bruising, significantly improving fruit quality.
· Forage Grasslands for Livestock Breeding
Suitable for alfalfa, clover and other pasture irrigation. Constant moderate humidity keeps pasture lush all year round and supplies sufficient high-quality feed for livestock farms.
· Special Industrial & Medicinal Crops
Capable of meeting strict precision irrigation standards for tobacco, hemp and medicinal herb planting, effectively avoiding yield losses from drought or excessive watering.
· Newly Reclaimed Farmland Construction
A preferred irrigation solution for newly sorted and reclaimed large plots. Stable moisture regulation accelerates soil ripening and creates favorable growing conditions for initial crop planting.
Video：
Advantages：
1. Even Water Distribution with Zero Irrigation Blind Spots
Straight-line traveling design paired with evenly arranged high-precision sprinklers eliminates local dry patches and waterlogging areas. All crops receive balanced moisture to realize synchronous and uniform growth.
2. High Irrigation Efficiency for Large-Area Plots
One-time straight-line covering replaces repeated manual watering work, drastically shortening overall irrigation time and lifting the comprehensive operation efficiency of large farms.
3. Greatly Cut Labor Input & Operating Costs
Full automatic operation only requires regular simple inspections during work. It reduces long-term labor dependence and lowers the comprehensive production cost of agricultural planting.
4. Robust Structure with Strong Weather Resistance
Anti-rust truss and wear-resistant driving parts adapt to harsh outdoor farm environments such as intense sunshine, heavy rainfall and mud erosion, featuring long service life and low replacement frequency of spare parts.
5. Powerful Adaptability to Multiple Crops & Terrains
Spray flow and working cycles can be customized freely to fit all types of crops and growth phases. Modular splicing design supports span length customization, and the machine runs smoothly on flat land and slopes below 5 degrees.
6. Obvious Water-Saving Effect for Sustainable Farming
Targeted root zone watering reduces water waste from surface evaporation and field runoff. It realizes eco-friendly sustainable irrigation and effectively cuts farms’ water consumption.
After-sales service
一．Core Service Commitment
1. Warranty service: 2-year warranty for the entire machine, and extended warranty for key components
2. Lifetime maintenance service
二. Proactive and Value-added Services
Regular equipment inspection work
2. Professional training services
3. Intelligent remote support
三. Emergency Response System
1.All-weather emergency response
24-hour service hotline: We have set up a service hotline that operates all year round to ensure that customers can contact us immediately in case of an emergency.
2. Hierarchical response mechanism:
Level 1 (Emergency Failure) : The equipment is completely paralyzed. We promise to respond within 2 hours and dispatch engineers to the site within 24 to 72 hours (depending on distance).
Level 2 (General Fault) : Some functions of the equipment fail, but it can still operate at a downgraded level. We promise to respond within 4 hours and provide a solution within 48 hours.
Green channel for spare parts: Set up a spare parts warehouse and a fast spare parts logistics channel for emergency repairs, giving priority to ensuring emergency needs.
FAQ：
Q1: What is the maximum irrigation width of DPP Series Traveling Linear Sprinkler Machine?
A: The effective irrigation width depends on different span combinations, ranging from 30 meters to 120 meters. We provide customized span collocation and total working width according to the actual size of customers’ rectangular farmland.
Q2: Can this linear irrigation machine work on uneven terrain?
A: The equipment operates stably on flat ground and gentle slopes with a gradient of ≤5°. For severely undulating fields, we can supply matching terrain adjustment accessories to ensure stable traveling and consistent irrigation results.
