Product Description

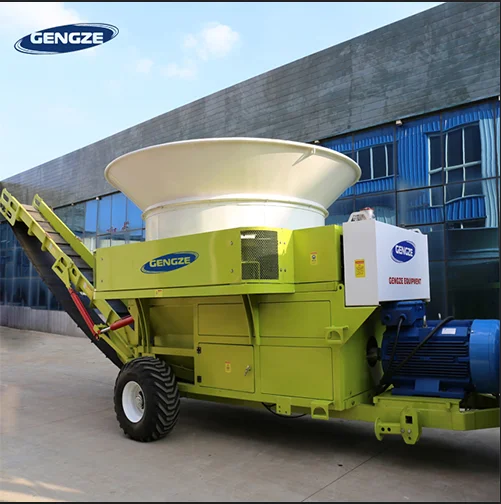

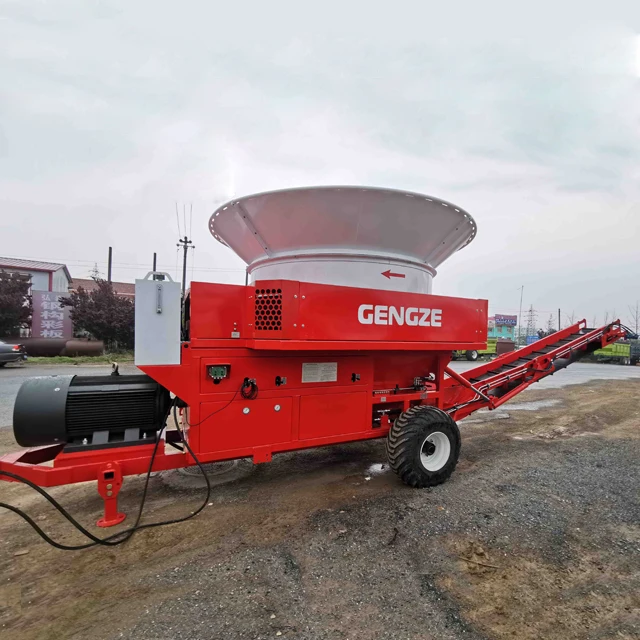

Hay wheat straw grinding machine rice grass hay bale tub grinder can be driven by PTO or electrical motor, can work with any kind of hay/ straw bale at round shape. it is an ideal equipment for treating round bale for the cattle. better tasty feed and more comfortable bedding can be realized by its carbide grit hammers set.
Product Name |
Hay Wheat Straw Grinding Machine Rice Grass Hay Bale Tub Grinder |
||||||
Rotor hammer mill |
Fly hammer: 64
Fly hammer shaft: 8
Bearing: SKF
Drive: PTO |
||||||
Combined power |
Motor drive: 90-150 kw
Option: Tractor drive: 90-180 HP
|
||||||
Screen mesh |
Thickness: 6 mm Diameter of hole :6 mm-125 mm |
||||||
Drum/Tub |
Outside width: 3.2m Inside Dia: 2.3m |
||||||
Screw pusher |
Type: bi-column symmetric Length: 1150mm |
||||||
Capacity |
Hay: 3-15T/H; Corn: 40-70T/H |
||||||
Discharging conveyor |
Type: folding hydraulic drive; Maximum lifting height: 4.19 m; Belt: Rubber |
||||||
Apply To |
Herbage, rice straw, oat grass, alfalfa, corn straw, rape straw, wheat straw, weeds, etc. Corn kernels (high moisture content), corn cobs, etc.
|
||||||
Detailed Images

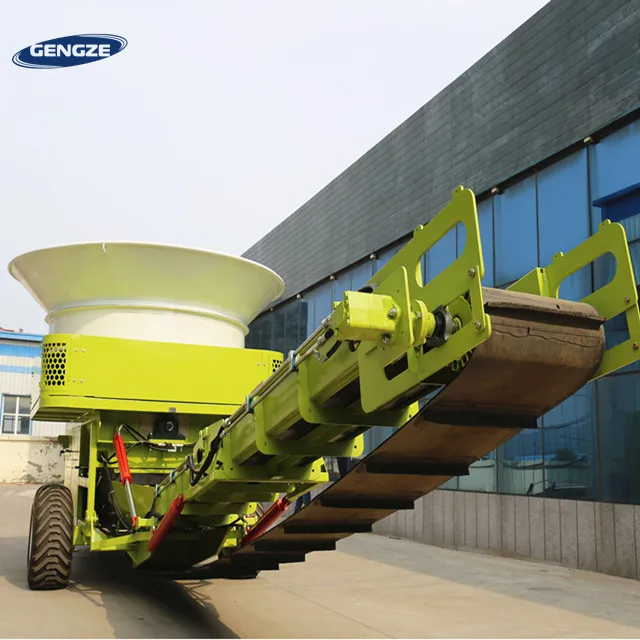

Smart and unique design chosen on the cylinders, make sure the boom to be folded
Hydraulic motor on the machine make sure the belt move smoothly

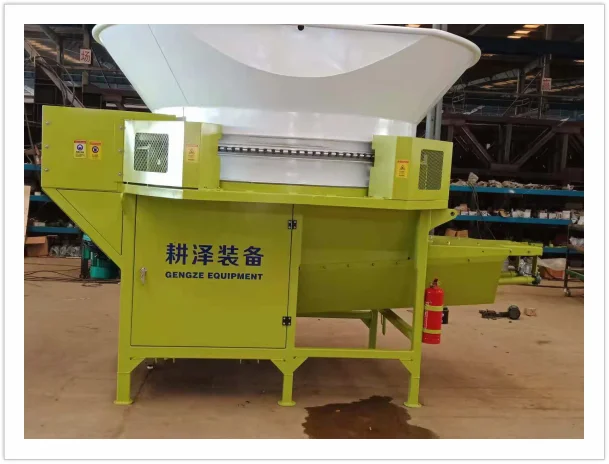

The tub on the platform can be turnover with safe lock device . so that repair and parts changed can be easily accessed.

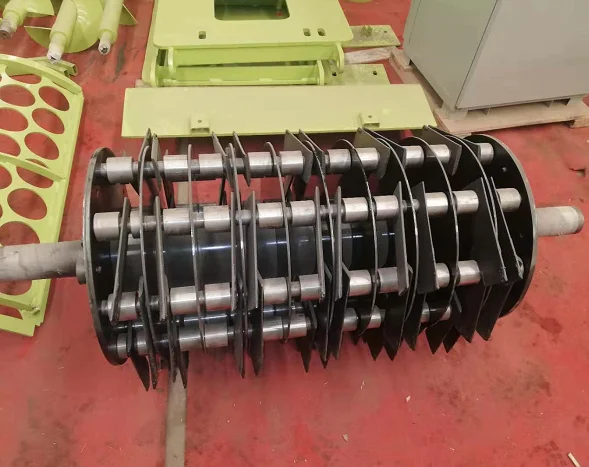

A 64-hammer set mounded on the machine, at least 2000-4000hours used.

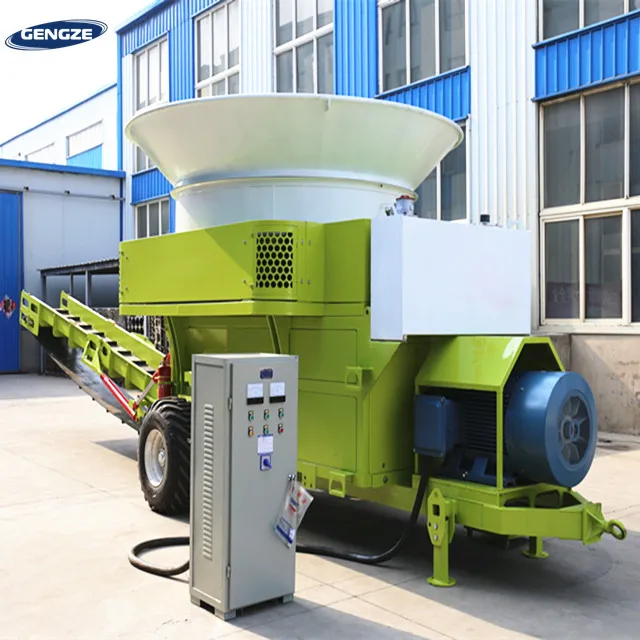

Electrical governor mounded on the machine , which control the stability of power outlet, adjust the tub speed. Also the tub rotating direction, stop is controlled by it.
hydraulic oil tank mounded on the machine
Packing&Delivery
L*W*H: 6.5m*3.2m*3.2m
Weight:5300KG
Hay Buster Wheat Straw Grinding Machine Rice Grass Hay Bale Tub Grinder Factory PriceOur equipment are all large scale, so normally would be delivered with full container load.
Hay Buster Wheat Straw Grinding Machine Rice Grass Hay Bale Tub Grinder Factory Price
The standard export wooden boxes or pallets , which meet the international trading regulation, will be offered by our side.
The reliable shipping agent will be chosen, if the customer prefer the appointed shipping agent, also acceptable.
