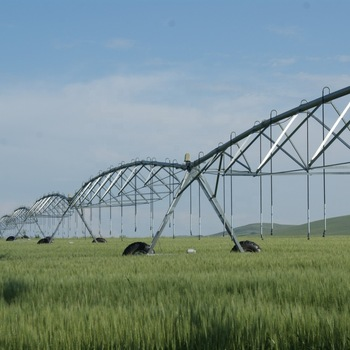

High Efficiency Center Pivot Irrigation
Especially applied in the irrigation of planing potatoes, sugarcanes, watermelons, legumes, economic crops and pasture.
- Overview
- Related Products
Description:

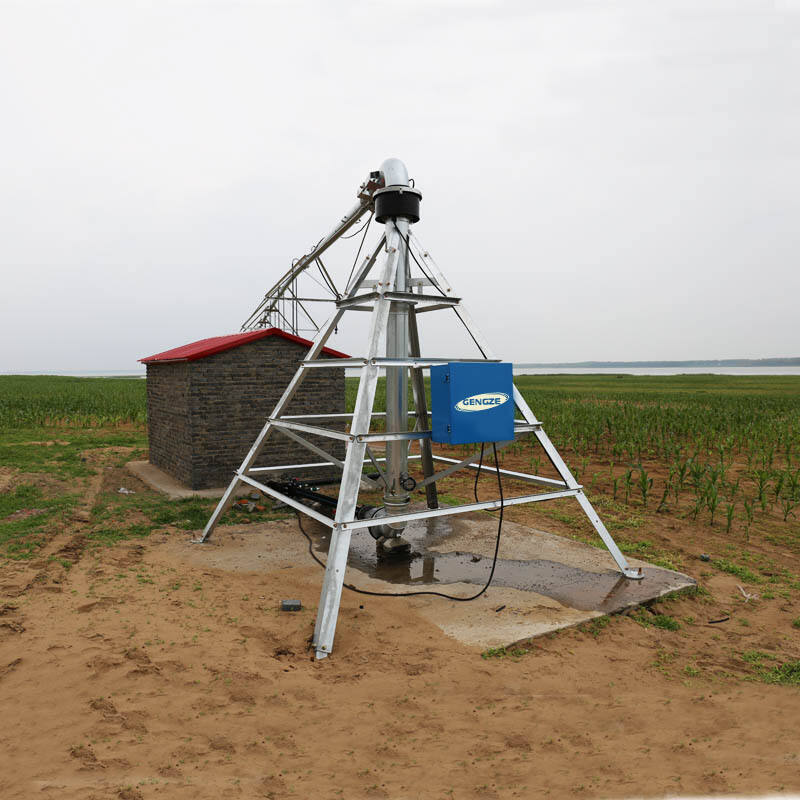

The center pivot is firmly fixed on the cement base to eliminate the force generated by the machine operating on irregular terrains, so that the water supply pipe can rotate freely in a circle radius to irrigate the whole round field.
Specifications:
| Main pipe diameter | 6-5/8''(168mm*3.2mm,high frequency welded steel pipe |
| Standard span | 6-5/8''(168mm)*54.5m(8 pipes) |
| King-sized span | 6-5/8''(168mm)*61.3(9 pipes) |
| Motor power | 0.75~1.5 horse power |
| Motor speed reducer | output speed of electric transmission gearbox:28~86RPM |

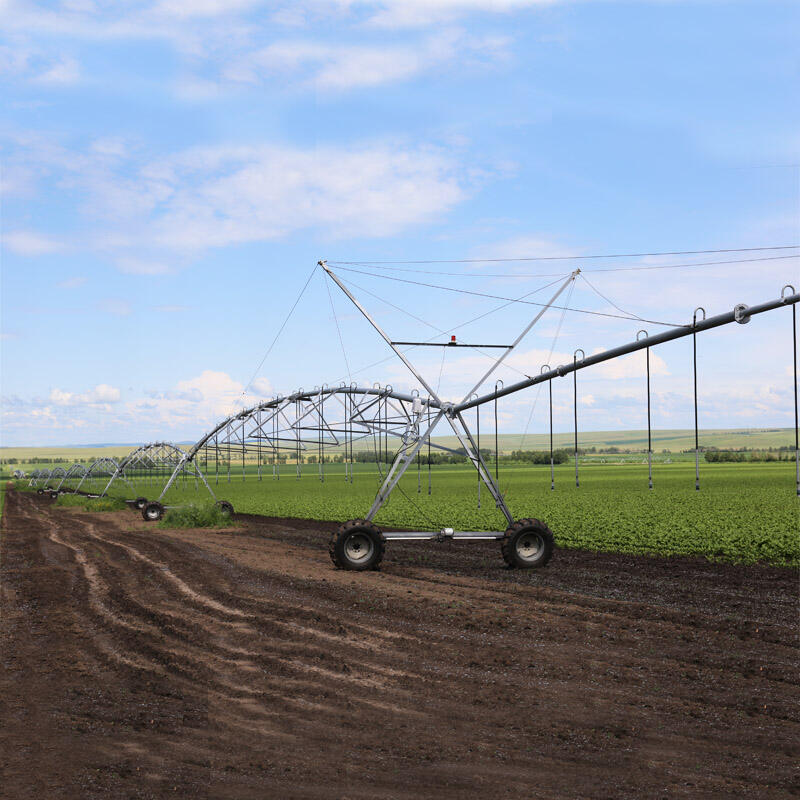

| Span body tower structure | Adopt "V" model tower |
| All the equipment with | The pressure of Nelson pressure governor:15PSI (20PSI) |
| Main cable | 4*4mm²+6*1.5mm²(resisting ultra violet and aging |

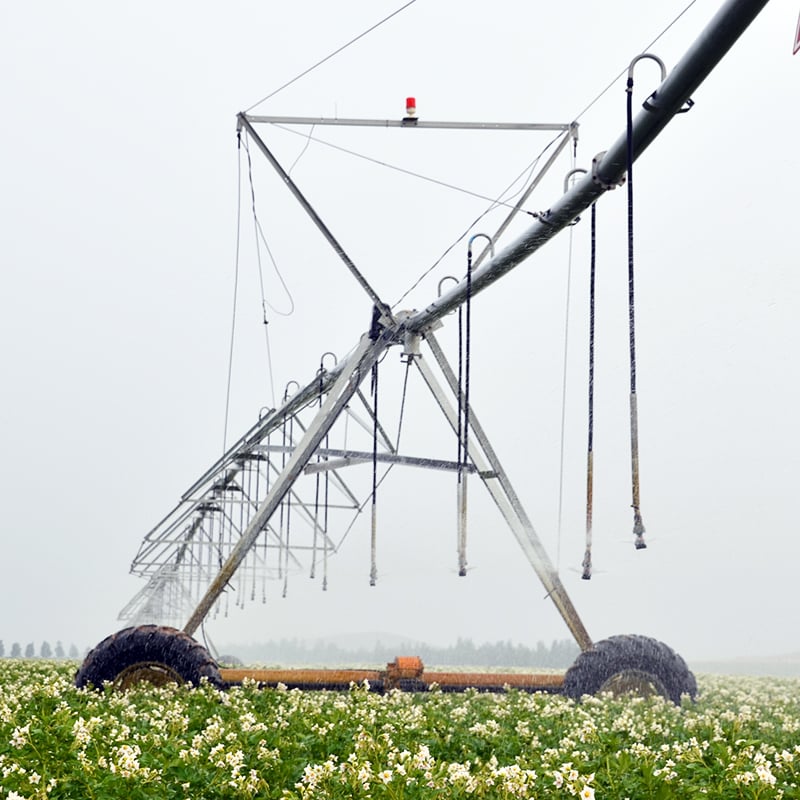

| The end has | LED working status instruction light |
| Irrigation intake | 1 water inlet in center point,quick pipe joint connected structure |
| Irrigation intake caliber | 8inches,the spot water supply pipe is more than 6 inches |
| Irrigation intake pressure | 0.20--0.35mpa |
| Standard irrigation truss height from the ground | 3.2m |

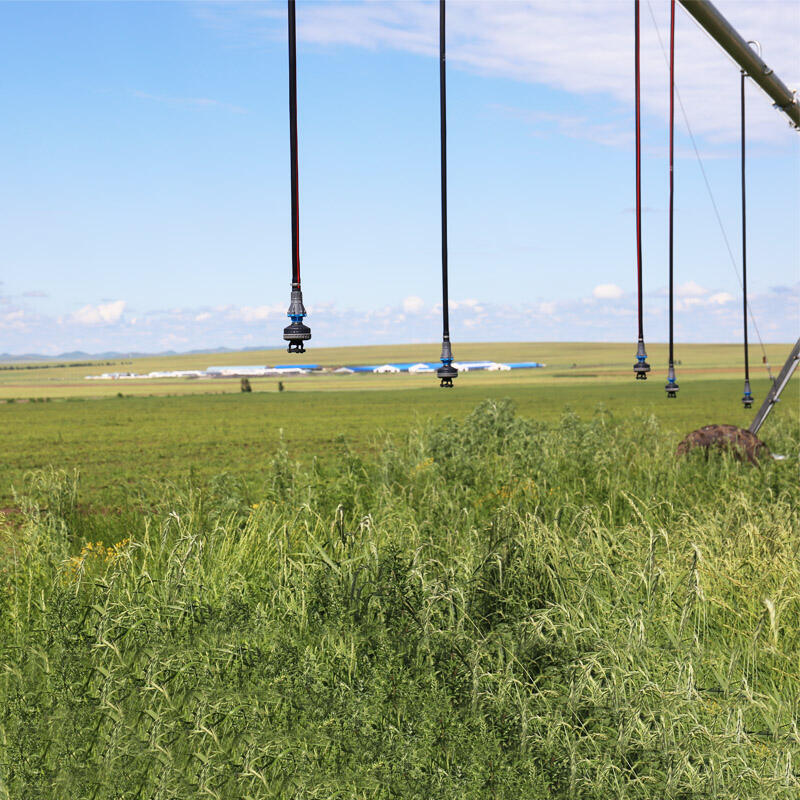

| Sprayer spacing | 2.2--4m (the quantity:2-3sprayer/water pipes |
Applications:
Center pivots are ideal for irrigating pastures and forage crops (e.g., alfalfa, clover). They provide consistent moisture levels, promoting healthy grass growth and improving livestock feed quality. The system’s automated operation reduces labor requirements, making it a cost-effective solution for large grazing areas.
Advantages：
It realize labor savings, power savings and water savings plus the improved crop yields ofautomated center pivot irrigation to small acreage applications.
Especially applied in the irrigation of planing potatoes, sugarcanes, watermelons, legumes, economic crops and pasture. It is suitable for large-area irrigation with features of economic, efficient, sturdy, durable and easy to handle. The system diameter can reach 1000 meters long.
video：
FAQ：
Q: How many years warranty you can support?
A: One year standard warranty, but will supply more service if you need, pls contact us for more discussion.
Q: There are many similar unqualified products in the market, how can you make sure your quality control?
A: We have got the certificates of CE and ISO 9001, and strict production procedures are effected in our company
