Product Description
Animal Feed Forage Chaff Cutter Cornstalk Chopper Grass Tub Grinder Dry Straw Bales Shredder
The reasonable construction by heavy duty steel , the high efficiency and long life-span hammers set as key part can provide operation service with a longer period.
Besides meeting the farm's self-use requirement of 5000 heads beefs, Agricultural maize straw hammer mill tub grinder cornstalk forage grass shredder can be also used to process for other farms to collect extra fee, thereby improve the utilization rate of the equipment and increase more benefits. Animal Feed Forage Chaff Cutter Cornstalk Chopper Grass Tub Grinder Dry Straw Bales Shredder
Rotor hammer mill |
Fly hammer：40pcs, wear-resistant alloy material |
||
Fly hammer shaft: strength alloy steel |
|||
Rotor speed |
1730r/min |
||
Flying hammer diameter |
680mm |
||
Crushing principle |
Hammering and kneading crushing |
||
Combined power |
75 kw motor |
||
Tractor drive power: |
75-150hp |
||
Motor speed |
1450r/min |
||
Screen mesh |
Thickness：3 mm |
||
Transmission mode: chain type |
|||
Drum speed |
3-8r/min |
||
Working efficiency |
2-5 t/h |
||

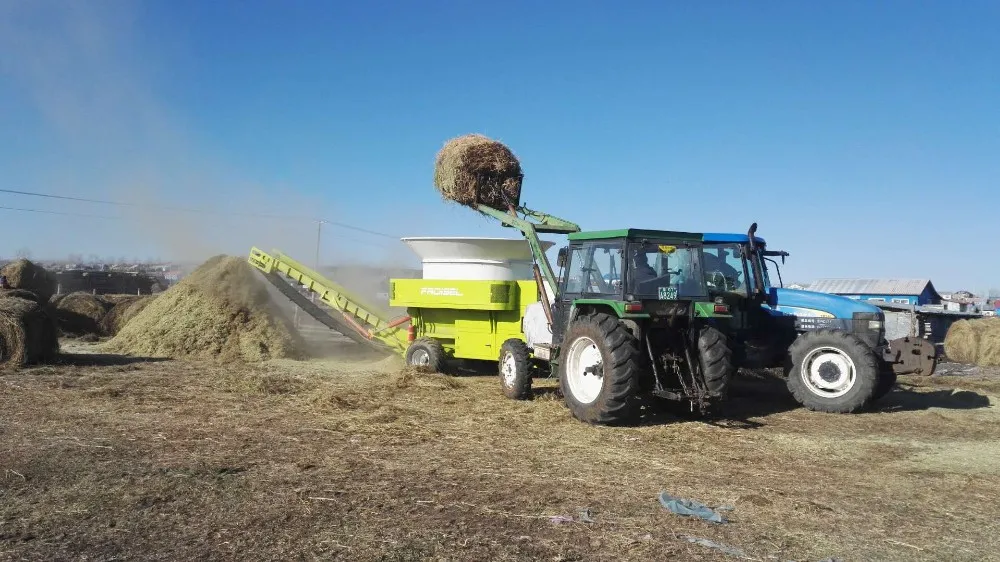

Grinding Corn
Grinding Silage
Detailed Images
Electrical governor mounded on the machine , which control the stability of power outlet, adjust the tub speed. Also the tub rotating direction, stop is controlled by it.
Hydraulic station to provide power for machine operation
Motor Powered Big Size Hay Bales Crushing Chopper Machine Wheat Straw Maize Silage Tub Grinders
The hammers set as consumable parts can work with machine 2000- 4000 hours. And it is driven by 8-blet engine system , simple structure , not easy to shut-down
The tub on the platform can be turnover with safe lock device, so that repair and parts changed can be easily accessed.
The new designed dual belly augers are suspended by two heavy duty bearings, to make sure the easy flow of outlet.

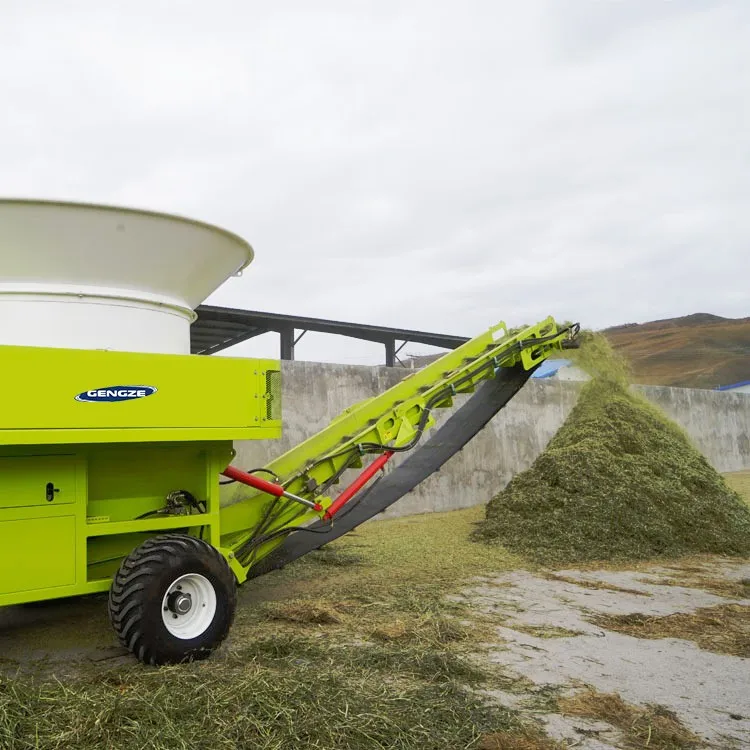

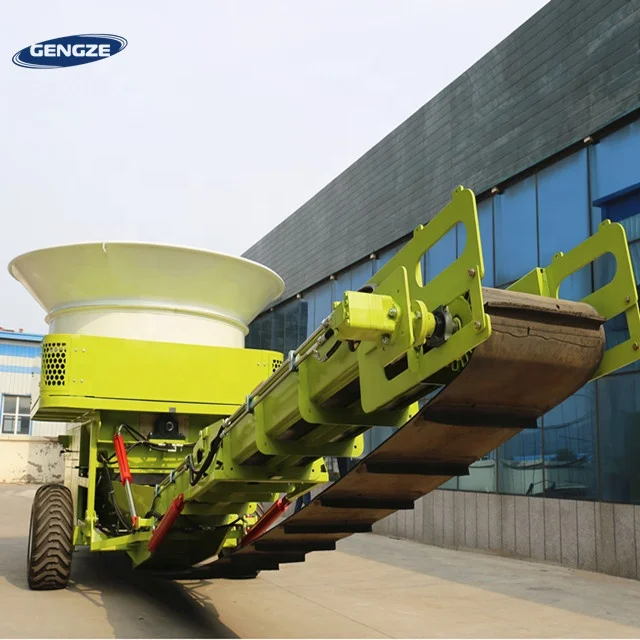

A folding conveyor boom with belt is designed for easy clean, easy transferring and hurling the ready grinded material up to 4.19 meters.
There are two agricultural tires mounded on the axel, they are strong and suitable enough for the tough countryside path.
Simple operation allow the heavy job to be enjoyable. By the hydraulic handles mounded on the machine, the perfect grind effect come out.
The hydraulic cylinder on our machine, which can let the conveyor boom complete up and down and folding.
Packing&Delivery
Our Agricultural maize straw hammer mill tub grinder cornstalk forage grass shredder are all large scale, so normally would be delivered with full container load.
The standard export wooden boxes or pallets , which meet the international trading regulation, will be offered by our side.
The reliable shipping agent will be chosen, if the customer prefer the appointed shipping agent, also acceptable.
