Description:
DYP agriculture center pivot irrigation system used in modern farm characterize high in efficiency, Featuring in high efficiency, power and water saving, the irrigation can increase yield at economical cost with the spraying uniformity coefficient up to 85%, and also take advantages of the uniform application of fertilizers. The enter pivot irrigation system can also work on uneven fields with slopes up 25%.

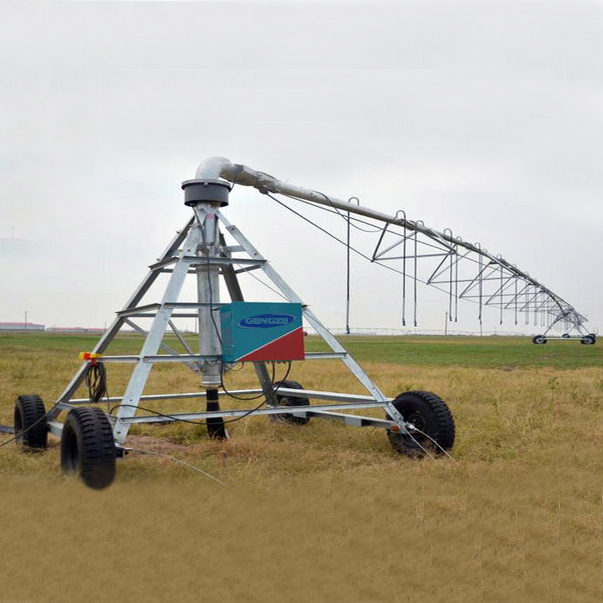

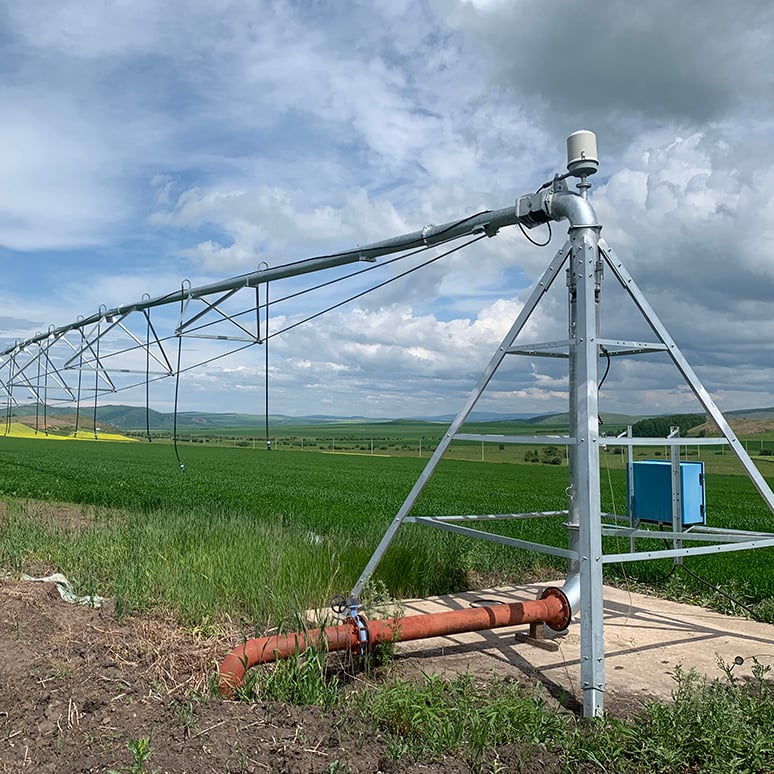

Fixed center pivot system：
center-pivot system is an efficient way to irrigate a large field with minimum machinery.

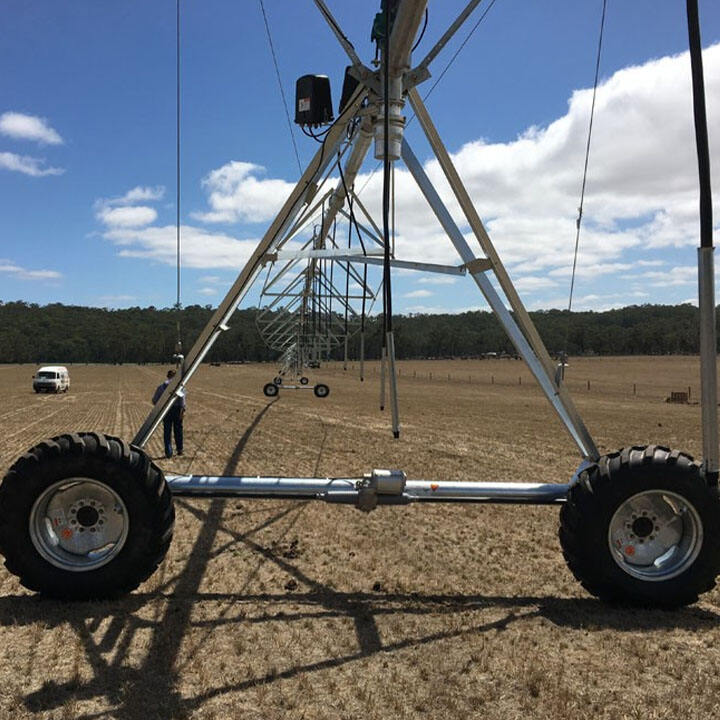

Three wheels and Four wheels pivot irrigation system:
pivot is equipment with a tower on swiveling wheels and a central unit on a moveable chassis fitted with a beam.
Specifications:
| Working voltage | 460--380V/50--60HZ |
| Power supply mode | diesel generator and the local power company provide |
| Tire type | 14.9x24 irrigation tire |
| Motor power | 0.75~1.5 horse power |
| Motor speed reducer | output speed of electric transmission gearbox:28--86RPM |
| Tire speed reducer | the drive ratio is 50:1 |
| Span body tower structure | "V" model tower |
| Sprayer | USA BRAND |
| Irrigation intake pressure | 0.20--0.35mpa |
| Truss height | 3.2m |
| Sprayer spacing | 2.2-4m( the quantity :2-3 sprayer/water pipe) |
| Main cable | 4*4mm²+6*1.5mm²(resist ultra violet and aging) |
| The end | LED working status instruction light |
Advantages：
Compare with the other irrigation method, it is more durable and sturdy, irrigation uniformity save energy and labor. Its low cost of purchase, operation and management. Supporting facility is simple. Irrigation cycle time is shorter.
video：
Applications:
In orchards (e.g., apple, citrus) and vineyards, center pivots with telescoping spans and end guns can adapt to irregularly shaped fields. The system’s ability to operate at lower pressures reduces soil erosion and water runoff.
FAQ:
Q: What’s your accepted payment terms?
A: T/T or LC
Q: What is your average production lead time?
A: About 20 days after received your prepayment.
Q: Do you have any certificate?
A: Yes, we have CE, ISO: 90001.
