Drum-Type Forage Shredder and Blower
Multi-Functional Unit with Integrated Transport, Shredding, and Blowing
- Overview
- Related Products
Description:
Built to Last, Designed for Versatility: Our round bale straw chopper combines a simple, heavy-duty structure with exceptional economy and practicality. While designed for hay (not silage), its capabilities are expanded by a new 1,800mm drum that effortlessly processes larger 1,500mm round bales and 1,200mm square bales.
Experience precise control by simply adjusting the drum speed. Powered directly by your tractor's PTO and a reliable hydraulic motor, this machine is crafted to meet rigorous quality standards, ensuring sturdy and durable performance that exceeds expectations.
Specifications:
| Model | M505 |
| Length × width × height | 2324mm×1963mm×2400mm |
| weight | 923kg |
| Tub diameter | 1800mm |
| Tub length | 1500mm (Can extend 300m) |
| Rotor diameter | 990mm |
| Screen | 13-120mm |
| Square bales size | 1200mm×1200mm |
| Number of hammers | 40(Cutlery steel) |
| Number of cutters | 4(Stainless steel) |
| Support motor power | 58kw |
| Discharge distance limit | 8m |
| Output | 2.5t/h |
| Applicable material | Straw and other hay |
Applications:

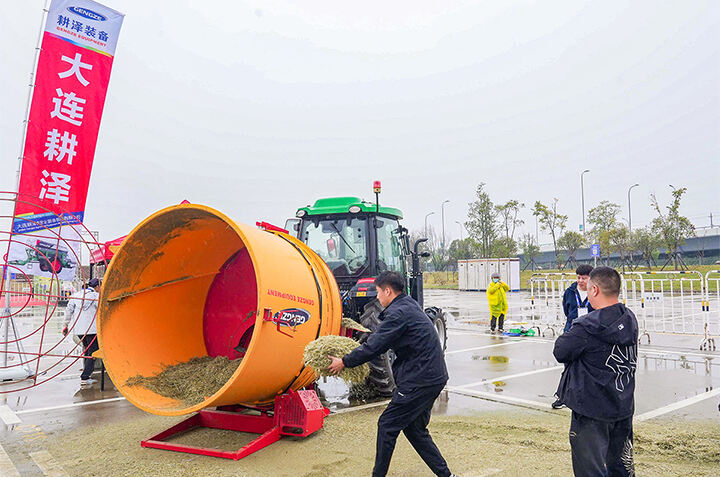

This equipment boasts a wide range of applications. For instance, on large-scale livestock farms, an operator can use a tractor to tow the machine and directly process 1500mm large round bales placed on the ground. It seamlessly integrates grabbing, shredding, and blowing into a single, continuous operation, uniformly distributing the forage into feeding areas or directly filling elevated feed bins. This enables highly efficient, one-stop feed preparation, significantly saving both labor and operational time.
Video：
Advantages：
Core Advantages: Engineered for Efficiency and Durability
1.All-in-One Versatility: Saves Time and Labor Integrating three core functions - transport, shredding, and blowing - into a single unit, it eliminates the hassle of traditional multi-machine operations. With a straightforward process, it completes the entire workflow from bale to ready feed, significantly simplifying operations and reducing both labor requirements and operational time.
2.Wide Applicability and High Processing Capacity Benefiting from the extended 1,800mm shredding drum, this machine effortlessly handles large 1,500mm round bales and 1,200mm square bales. It efficiently processes both hay and straw, meeting diverse operational needs with strong compatibility.
3.Robust Construction: Built for Endurance Utilizing heavy-duty steel and reinforced core components, the machine features a simple yet incredibly sturdy structure. Designed for high-intensity continuous operation, it offers low failure rates and easy maintenance, ensuring a long service life and high availability even in demanding working conditions.
4.Powerful and Precisely Controllable Output Driven directly by the tractor's PTO via a reliable hydraulic motor, the system ensures stable power transmission. Operators can precisely control the fineness of the output and the blowing distance by simply adjusting the drum speed, enabling accurate feeding and efficient material management.
5.Cost-Effective with High Return on Investment Designed with high cost-effectiveness as a core principle, this machine not only reduces the initial purchase cost but also, through its high operational efficiency, low maintenance costs, and long-term durability, delivers substantial and long-lasting returns on your investment.
After-Sales Service Commitment
We are dedicated to ensuring your complete peace of mind with a comprehensive and responsive service support system.
1. Core Warranty & Support
A 2-year full machine warranty, with extended coverage for key components.
Lifetime maintenance services to ensure long-term operational excellence.
2. Proactive Care & Training
Scheduled Inspections: Regular equipment check-ups to prevent potential issues.
Operator Training: Professional training for your team on optimal machine operation.
Remote Assistance: Intelligent remote support for rapid diagnostics and troubleshooting.
3. 24/7 Emergency Response
A structured response mechanism ensures swift resolution for any equipment failure:
Priority 1 (Critical): Complete breakdown. We guarantee a 2-hour initial response and on-site technician dispatch within 24-72 hours.
Priority 2 (Standard): Partial function failure. We guarantee a 4-hour initial response and a solution within 48 hours.
Dedicated Hotline: 24-hour service hotline for immediate contact.
Parts Green Channel: Prioritized spare parts logistics from dedicated warehouses for emergency repairs.
FAQ：
Q1: What is the production lead time?
--Our standard lead time is 15 to 20 working days upon order confirmation.
Q2: What is the shipping method?
--For international orders, our standard shipping method is by sea. This is the most cost-effective solution for transporting heavy machinery like our equipment.
