Description:

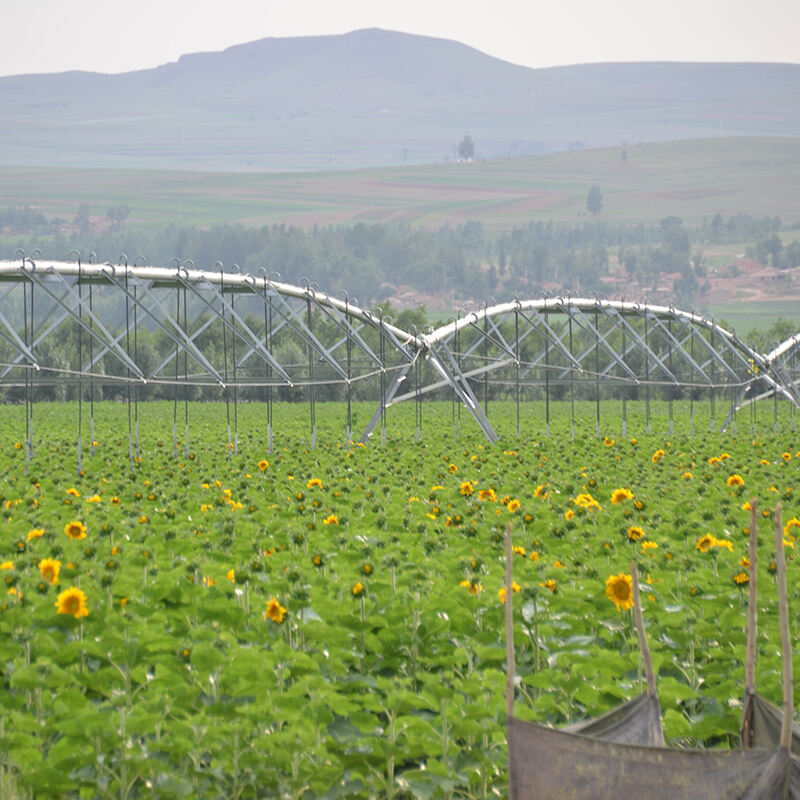

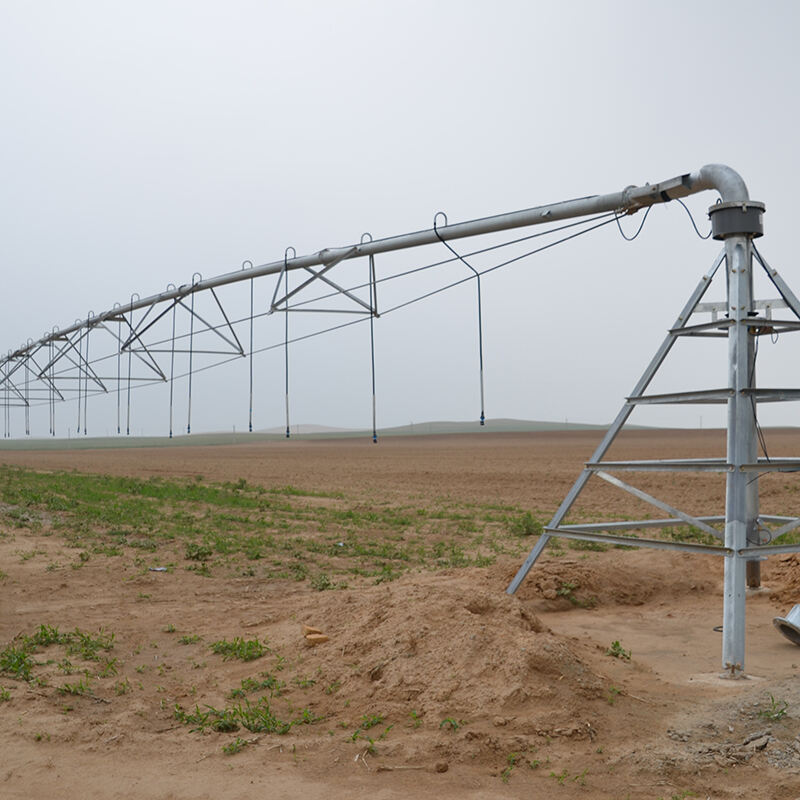

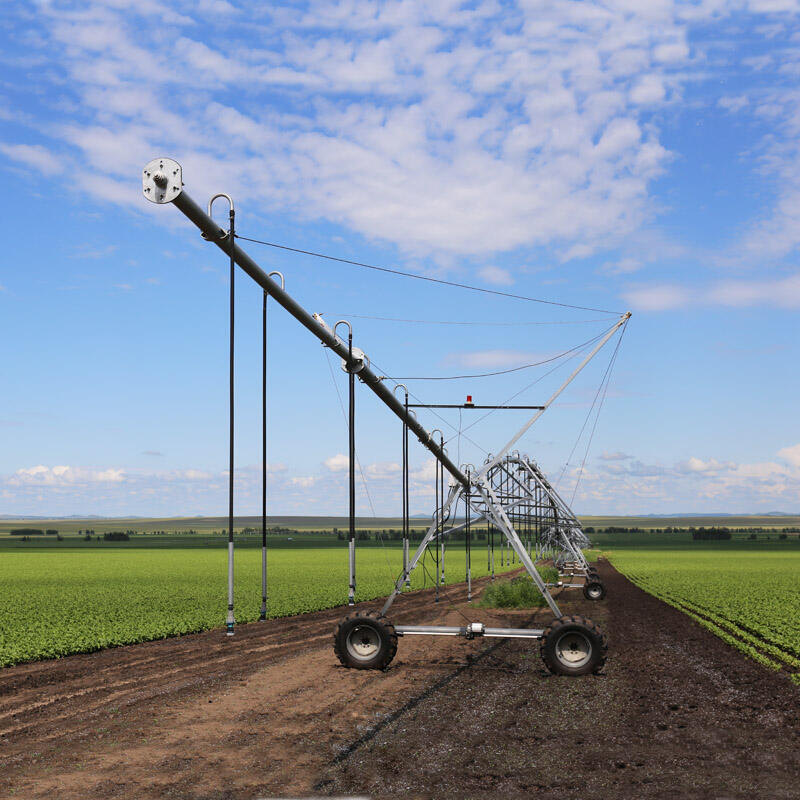

Dyp agriculture center pivot irrigation machinery consisting of one or more spans which rotate around a fixed point anchored to the ground. The spans turn repeatedly around a fixed central point. They are simple to use and require little intervention. These machines are both reliable and excellent value for money.
Specifications:
| Main pipe diameter | 6-5/8''(168mm*3.2mm,high frequency welded steel pipe |
| Standard span | 6-5/8''(168mm)*54.5m(8 pipes) |
| King-sized span | 6-5/8''(168mm)*61.3(9 pipes) |
| Overhang | 5-9/16''(141mm) |
| King-sized overhang | 4''(101mm) |
| Pipe length | 22feet/one (6.7m) |
| Main pipe Flange thickness | 10mm, Flange and pipe adopt double welded technology |
| Working voltage | 460--380V/50--60HZ |
| Power supply mode | Diesel generator and the local power company provide |
| Tire type | 14.9*24, vacuum irrigation tire |
| Motor power | 0.75~1.5 horse power |
| Motor speed reducer | output speed of electric transmission gearbox:28~86RPM |
| Span body tower structure | Adopt "V" model tower |
| All the equipment with | The pressure of Nelson pressure governor:15PSI (20PSI) |
| Main cable | 4*4mm²+6*1.5mm²(resisting ultra violet and aging |
Advantages：
Compare with the other irrigation method, fixed center pivot irrigation system is more durable and sturdy, irrigation uniformity to save energy and labor. It requires lower cost of purchase, operation and management with simple supporting facility and shorter irrigation.
video：
Applications:
For vegetables (e.g., lettuce, tomatoes, potatoes) and specialty crops (e.g., strawberries, melons), center pivots offer precise water delivery through low-pressure nozzles and adjustable sprinkler heights. This minimizes water stress and prevents damage to delicate plants. The system’s fertigation compatibility also enables simultaneous application of fertilizers, enhancing nutrient uptake and crop quality.
FAQ：
Q: What is your payment terms?
A:30%T/T prepaid and 70% balance before delivery.
Q: Whether you can support customized logo?
A:OEM service is available.
Q: How many meters machine can be loaded into 1x40HC?
A:about 500m
