Description:

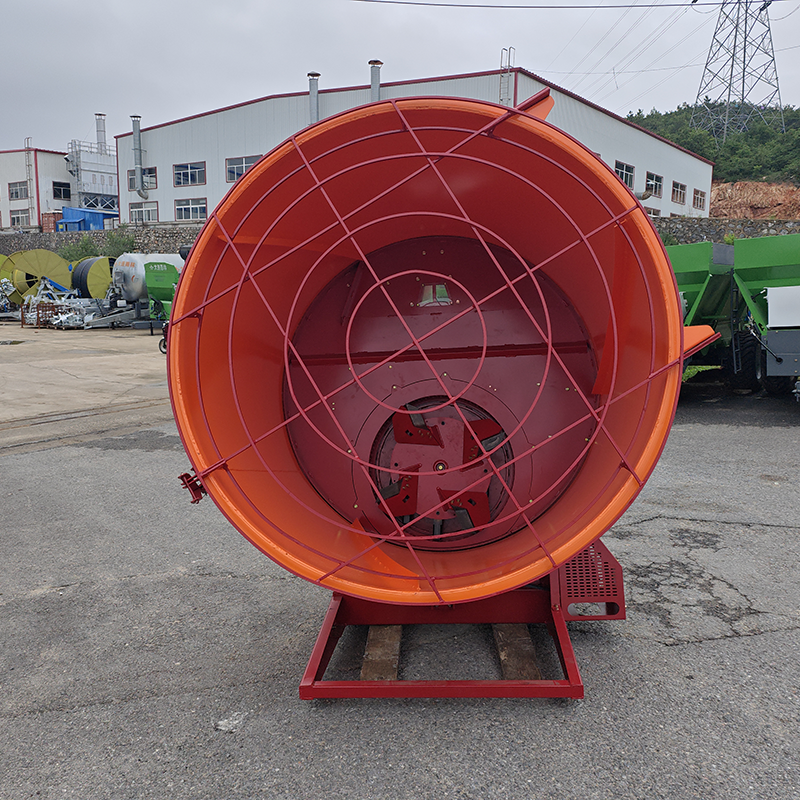

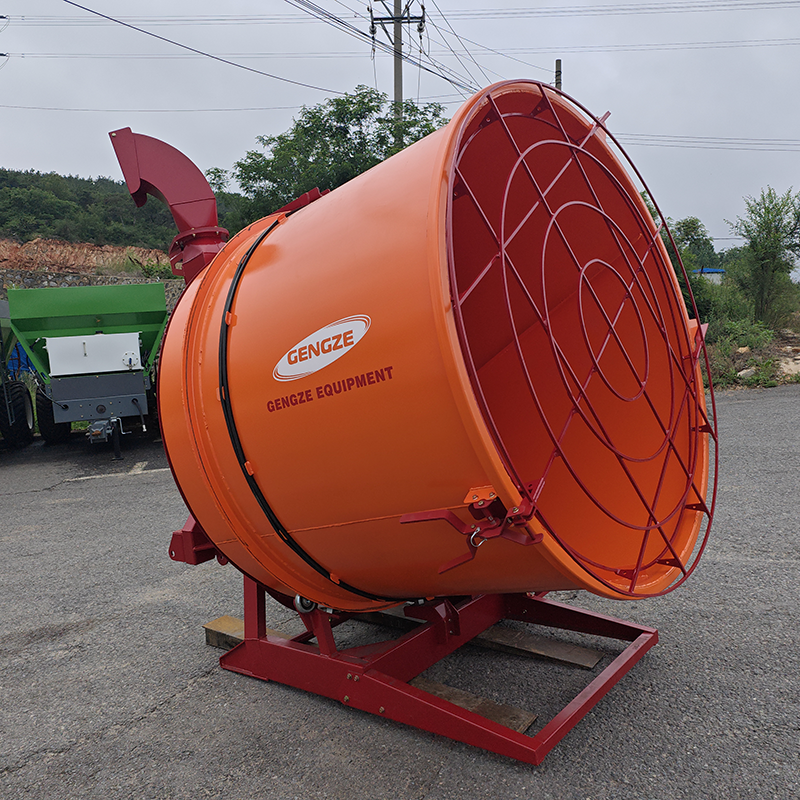

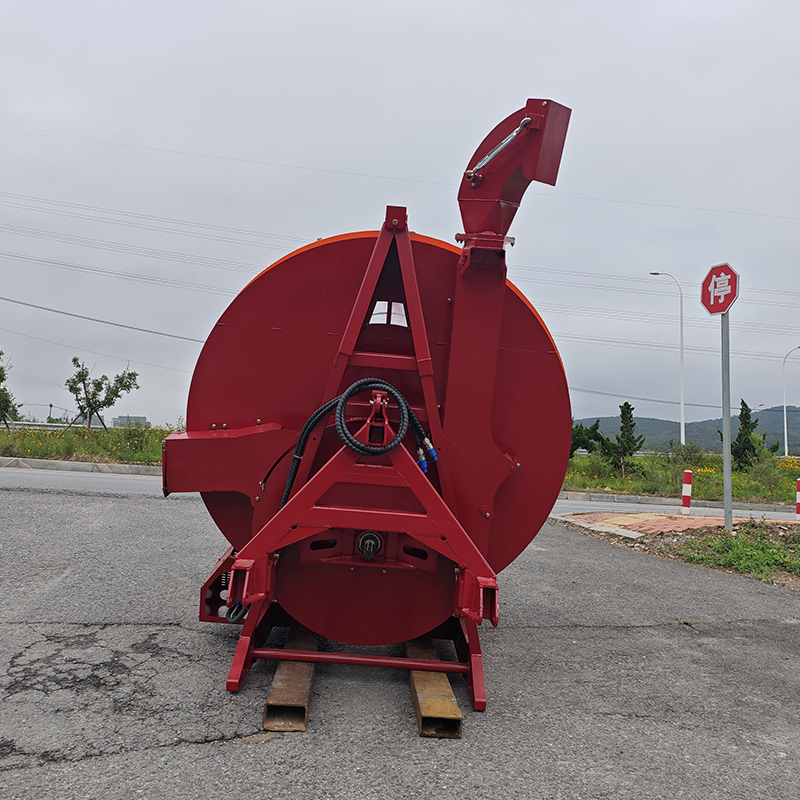

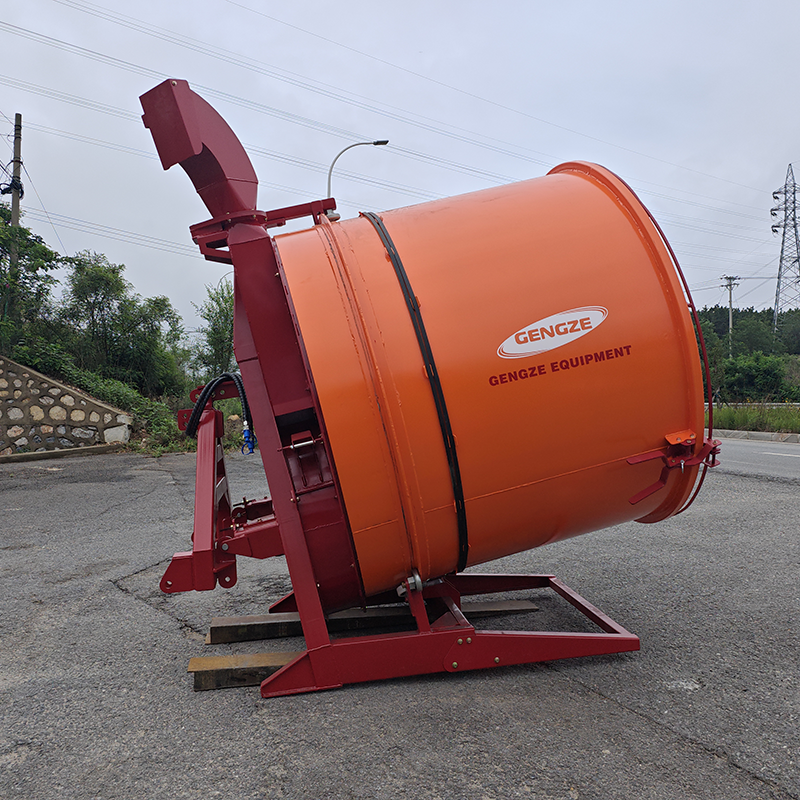

The Round Bale Straw Crusher is an economical, practical agricultural tool for small-to-medium farms, ranches, and forage sites. Its streamlined structure—with a heavy-duty welded steel frame, thickened cylindrical crushing tub, and simple transmission—enables easy assembly, transport, operation, and maintenance, even for less technical users.
Key parts (crushing tub, rotor blades) are made of high-strength manganese steel, resisting wear/impact. It handles hard, compact round bales (up to 1.2m diameter) under harsh outdoor conditions without deformation.
Ideal for dry straw (moisture ≤15%, e.g., wheat/rice straw, sun-cured hay) to make 2-5cm uniform particles (good for livestock digestion/storage). Not for silage (30-60% moisture, sticky texture clogs tub/blades, causing corrosion or drive damage).
Output is adjusted via a hydraulic valve controlling tub speed: slower for fine particles (poultry/small ruminants), faster for high throughput (cattle feeding/bedding).
Powered by tractor PTO (rotor with 4-6 replaceable blades) – no independent engine, cutting weight/fuel/maintenance. The tub uses a high-torque hydraulic motor for steady rotation. It fits 50+ HP tractors, with quick setup.
Overall, it meets modern farm quality needs, offering a cost-effective, low-maintenance solution for feeding, recycling, or storage prep.
Specifications:
| Length × width × height | 2324mm×1963mm×2400mm |
| Machine weight | 923kg |
| Tub length | 1500mm (Can extend 300m) |
| Rotor diameter | 990mm |
| Screen | 13-120mm |
| Output | 2.5t/h |
| Applicable material | Straw and other hay |
Applications:
Video：
Advantages：
This machine excels in durability and flexibility through thoughtful core component design. Its crushing blades are crafted from high-quality stainless steel, which not only delivers strong anti-rust performance—avoiding corrosion from moisture or grass residues during long-term use—but also boasts strength far exceeding industry standards. This combination ensures the blades stay sharp and intact for longer, reducing frequent replacement needs.
The matching hammers adopt special tool steel, a material that balances high strength and rigidity. It can withstand the impact force generated during straw crushing without easy breakage, maintaining stable crushing efficiency. Moreover, the hammer’s modular design makes replacement simple: no complex tools are required, allowing users to complete the process quickly and cut down on maintenance downtime.
For users with higher feeding efficiency needs, the machine supports customized lengthening of the cylinder. An extended cylinder increases the single-time grass loading capacity, reducing the frequency of repeated feeding and directly boosting overall processing efficiency—ideal for farms with large-scale forage crushing demands.
In terms of crushing granularity adaptability, the machine offers multiple models of screens for selection. Users can pick the appropriate screen according to different application scenarios: for example, a fine-mesh screen for livestock feed (to get finer crushed grass) or a coarse-mesh screen for bedding material. The screen’s snap-on structure enables easy replacement, letting the machine switch between different working modes rapidly to meet diverse needs.
These design details collectively enhance the machine’s practicality, making it suitable for long-term, high-intensity agricultural operations while lowering user costs in maintenance and operation.
FAQ：
Q1：What do you do if something goes wrong with the product?
A1：We will direct the solution on line, or pay for offline repair.And full refund in case of bad quality.
Q2 : Do you have any order size requirements?
A2 : Small order are welcomed, MOQ 1PCS.
Q3 : What’s your accepted payment terms?
A3 : T/T or LC
