Grinding Hay In The Farm
Farm Cattle Feed Straw Grinding Equipment Cow Feed Processing Machine Straw Bale Hammer Mill Tub Grinder
- Overview
- Related Products
Product Description
Name
|
Farm cattle feed straw grinding equipment cow feed processing machine straw bale hammer mill tub grinder |
||||||
Rotor hammer mill |
Fly hammer: 64
Fly hammer shaft: 8
Drive: PTO
|
||||||
Combined power |
Motor drive: 90-150 kw
Option: Tractor drive: 90-180 HP
|
||||||
Screen mesh |
Thickness: 6 mm Diameter of hole :6 mm-125 mm |
||||||
Drum/Tub |
Outside width: 3.2m Inside Dia: 2.3m |
||||||
Screw pusher |
Type: bi-column symmetric Length: 1150mm |
||||||
Capacity |
Hay: 3-15T/H; Corn: 40-70T/H |
||||||
Discharging conveyor |
Type: folding hydraulic drive; Maximum lifting height: 4.19 m; Belt: Rubber |
||||||
Apply To |
Herbage, rice straw, oat grass, alfalfa, corn straw, rape straw, wheat straw, weeds, etc. Corn kernels (high moisture content), corn cobs, etc.
|
||||||

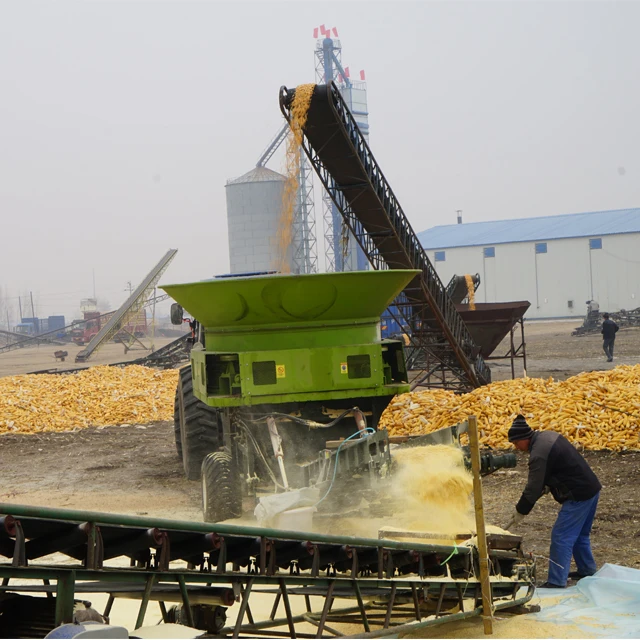

Grinding Corn
Grinding Silage
Grinding Effect Display
Detailed Images
The tub on the platform can be turnover with safe lock device, so that repair and parts changed can be easily accessed.
The new designed dual belly augers are suspended by two heavy duty bearings, to make sure the easy flow of outlet.
A folding conveyor boom with belt is designed for easy clean, easy transferring and hurling the ready grinded material up to 4.19 meters.
There are two agricultural tires mounded on the axel, they are strong and suitable enough for the tough countryside path.
Simple operation allow the heavy job to be enjoyable. By the hydraulic handles mounded on the machine, the perfect grind effect come out.
The hydraulic cylinder on our machine, which can let the conveyor boom complete up and down and folding.
Packing&Delivery
Our Vous devez attendre l’approbation du paiement de la banque are all large scale, so normally would be delivered with full container load.
The standard export wooden boxes or pallets , which meet the international trading regulation, will be offered by our side.
The reliable shipping agent will be chosen, if the customer prefer the appointed shipping agent, also acceptable.
Related Products
Our Company
Dalian Gengze Agricultural Equipment Manufacturing Co.,Ltd, specializes in designing and manufacturing large scale agricultural equipment such as fertilizer spreader, straw grinder and irrigation system.
Based in Dalian, Gengze has its factory covering 43000 square meters with advanced manufacturing machine and technology such as upset forgings, laser cutting machine, numerical control center, etc, which guarantees our production ability and capacity.

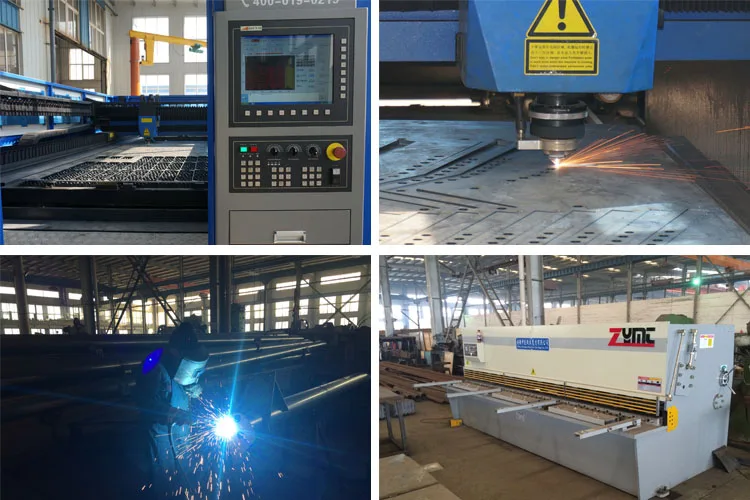

Our Workshop
