Description:

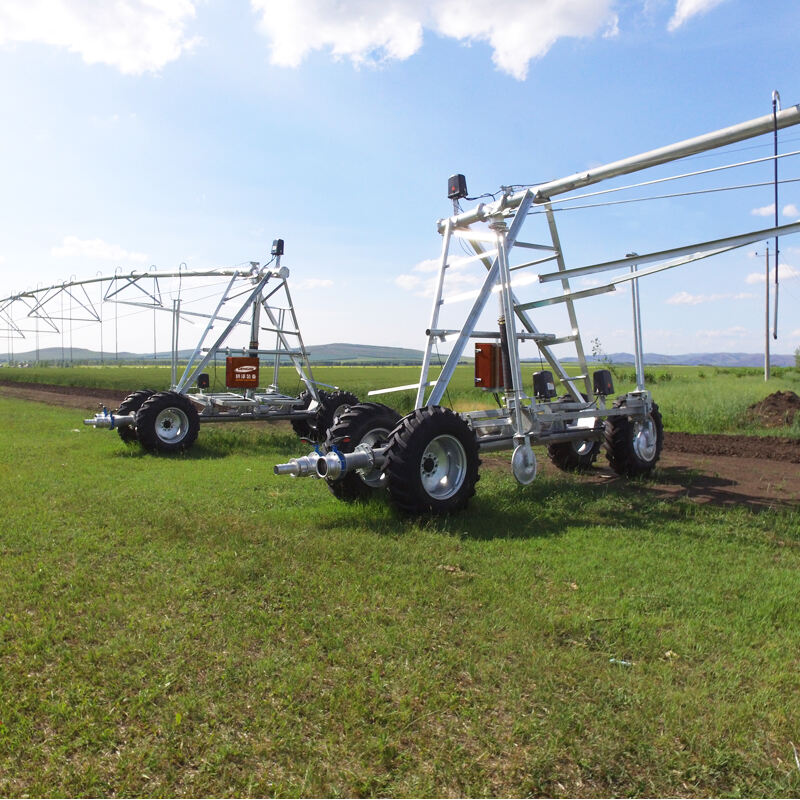

The Dalian Gengze DPP series sliding sprinkler irrigation machine is an automated equipment specially designed for efficient water-saving irrigation in large-scale farmland. Its core feature is to achieve uniform irrigation through a "parallel moving trajectory". With its high land utilization rate and flexible adaptability, it has become the preferred equipment for planting in rectangular, trapezoidal and irregular plots. It is especially suitable for the irrigation needs of field crops such as wheat, corn and forage grass, as well as some economic crops. From the perspective of product types and structural features, the Gengze sliding sprinkler irrigation machine can be divided into three major categories to meet the needs of different scenarios: Two-wheel sliding sprinkler irrigation machine: It focuses on flexibility and convenience, can cross farmland back and forth, has a small footprint in the walking control area, and mostly uses trench guidance for guidance. It is particularly suitable for narrow and long plots (with a length-to-width ratio of 1:3 or more, which is more efficient), L-shaped or irregular plots. Four-wheel sliding sprinkler irrigation machine: Enhanced stability on the basis of the two-wheel model, with a land utilization rate as high as 98%. The translational rotary sprinkler irrigation machine: Innovatively integrating the advantages of pointer and translational types, it can not only move in parallel and back for irrigation but also be compatible with the rotary function of pointer machines. It is suitable for terrains with large widths and semi-circular edges, minimizing irrigation blind spots to the greatest extent and further enhancing the effective utilization rate of land.
Specifications:
| Main pipe diamter | 141mm, 168mm, 203mm |
| Span Length Options | 54.5m，48m，41m |
| Hose structure | High strength double sided hose |

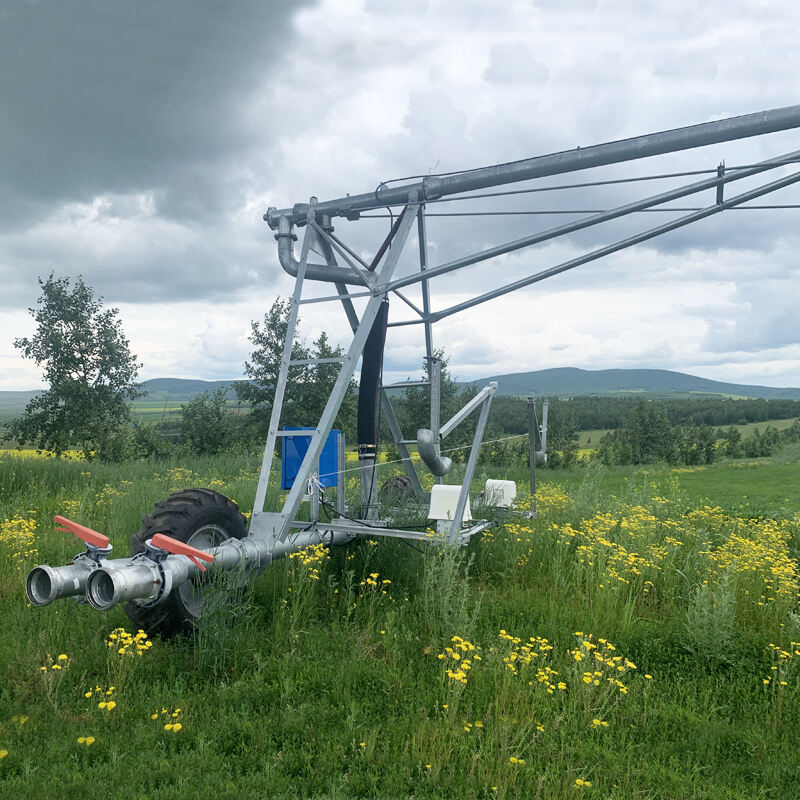

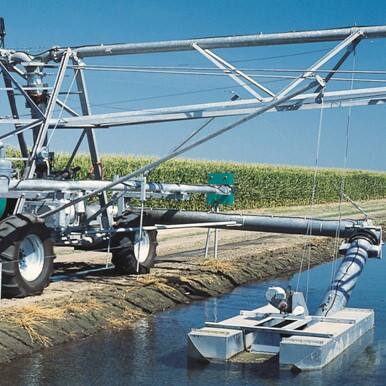

| Water Supply | Towing hose |
| Power supply mode | Traction cable |
| Overhang steel pulling cable | 7x2.8mmhot-dip galvanized |
| Single span motor power | 0.55KWWM1.1KWN |
| Wheel speed reducer | Speed ratio:50.1 |
Applications:
Video：
Advantages：
In terms of core technical parameters, the Gengze linear pivot irrigation is precisely configured and offers flexible options
The standard specification of the main water pipe is 168mm (with a wall thickness of 3mm), and there are also models available such as 141mm, 203mm, 219mm, and 254mm to meet different irrigation flow requirements.
The span can be selected as 41m, 48m, and 54.5m. The cantilever pipe lengths cover 6.7m, 13.4m, 20.1m, and 26.8m. The coverage range can be customized according to the width of the plot.
The spacing of the nozzles is fixed at 2.23 meters, and the truss is 3.1 meters above the ground to prevent damage to tall crops. The movement adopts an electric transmission gearbox (reduction ratio 40:1/25:1, standard 50:1 tire turbine reducer), equipped with 14.9x24 specification tires, and the power of a single drive motor is 0.75-1.5 horsepower, ensuring smooth operation.
The safety protection system includes forward and reverse control and automatic emergency shutdown function. It can be optionally equipped with Nielsen SR75/SR100 end spray guns and 1.5KW, 4.0KW booster pumps to enhance the irrigation range and effect.
FAQ：
1. What about the MOQ?
- 1 set (at least 2 spans) 2021 Agriculture Center Pivot Sprinkler Irrigation Equipment used in Farm Irrigation System
2. There are many similar unqualified products in the market, how can you make sure your quality control?
- We have got the certificates of CE and ISO 9001, and strict production procedures are effected in our company
3. What’s your accepted payment terms?
- T/T or LC
4. How many sets machine can be loaded in a 40ft container?
- About 1set with 500m or 2sets with 250m.
5. Whether you can support customized logo?
- OEM service is available. 6. How many years warranty you can support? - One year standard warranty, but will supply more service if you need, pls contact us for more discussion.
